This article covers the steps to import EloPOS i3/i5 drivers into SCCM.

A .pdf copy of this procedure is also attached to this article

To obtain SCCM drivers, please visit our Technical Support Form to submit a request.
https://contactus.elotouch.com/technicalsupport

These CAB files include all relevant drivers in support of the I-Series for Windows 2.0 (and EloPOS) i3 & i5 systems.  Unfortunately, we do not have CAB files for 1.0 devices at this time.

Microsoft Endpoint Configuration Manager, formerly known as System Center Configuration Manager (SCCM), is a Windows-centric endpoint management tool for devices within an Active Directory domain.

Steps:

1. Download the CAB driver file.

2. Extract the file. Optionally use the 7-Zip utility to extract the file.

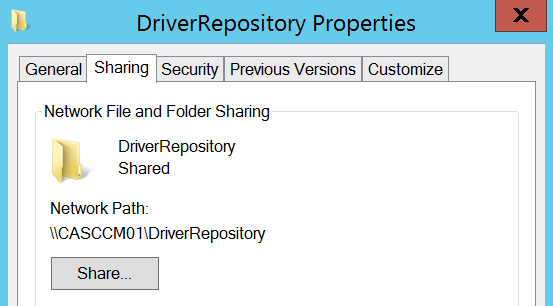

3. Create a network shared folder for the driver repository.

• Example:
  • Main location - E:\Sources\DriverRepository
  • Network location -  \\casccm01\Sources2\DriverRepository

4. Copy the extracted driver folder to the network shared folder.

5. Launch the Configuration Manager Console.

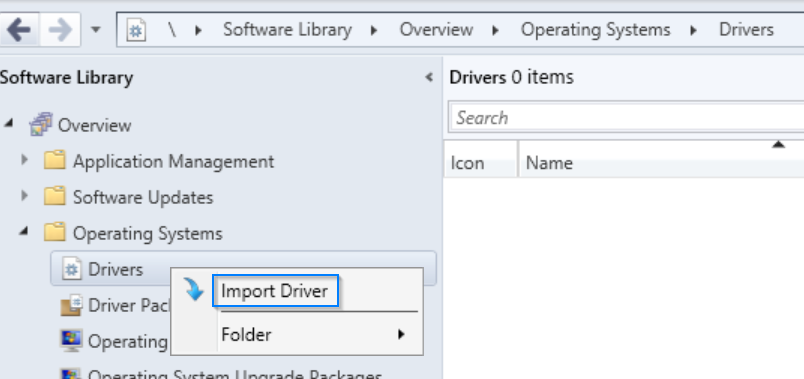

6. Navigate to Software Library Overview Operating Systems Drivers. Right-click on Drivers, and then select Import Driver.

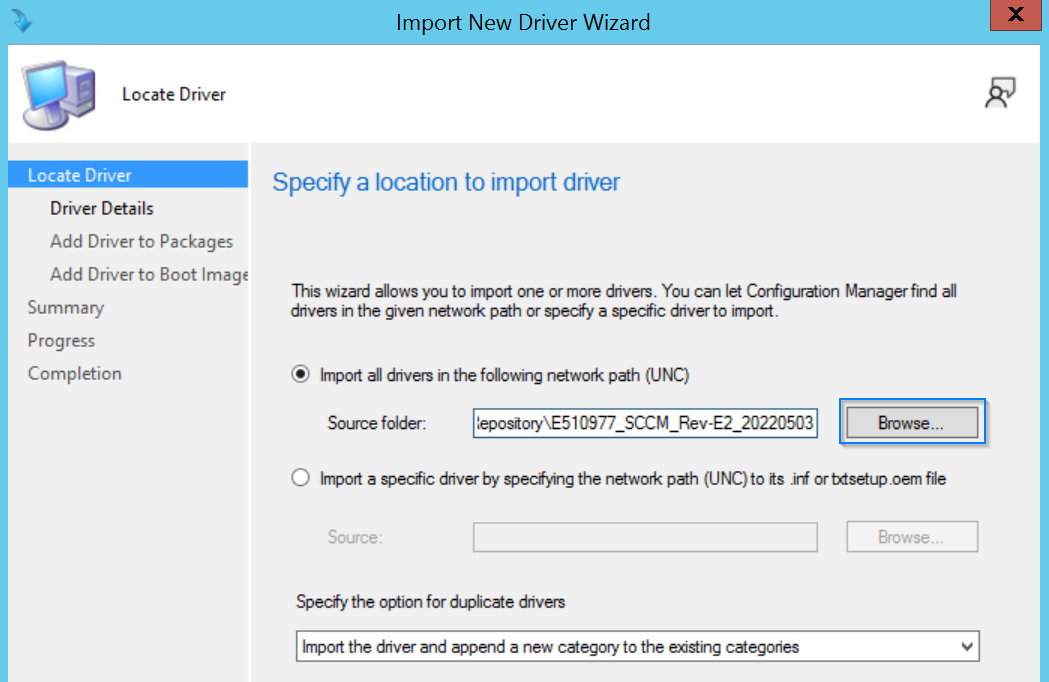

7. Choose to import all drivers from a network path, click browse and then select the extracted driver folder in the network shared folder (driver repository). Click Next when finished reviewing settings on this page.



8. Scanning .inf driver files will take a few minutes. Continue to wait.



9. Verify all the drivers were found and selected. Optionally assign categories for filtering. Click Next when finished reviewing settings on this page.



10. Before moving on to the next step, create another network shared folder to store imported driver packages.

• Example:
  • Main location - E:\Sources\Imported Drivers\
  • Network location -  \\casccm01\Sources2\Imported Drivers\

11. Click New Package.



12. Provide a name for the driver package, click Browse, and then select the network shared folder created earlier for the location of imported driver packages. Click Ok when finished reviewing settings on this page



13. Click Next to move to the next page.



14. Click Next to skip adding drivers to the boot image.



15. Click Next to confirm the import wizard summary.

16. Importing drivers will begin. Continue to wait.



17. Click Close when finished reviewing the completion page.

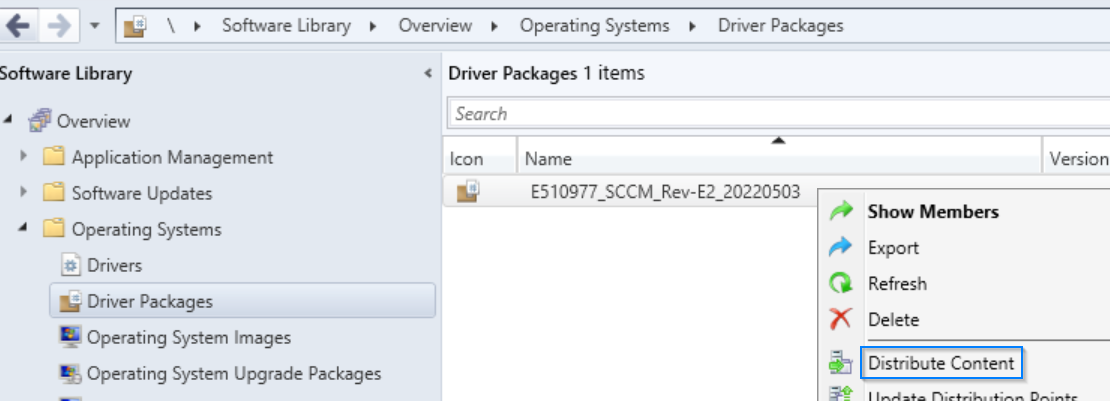

18. Navigate to Software Library Overview Operating Systems Driver Packages. Right-click on the newly created driver package and then select Distribute Content.



19. Click Next to confirm the select package.

20.  Add the desired content distribution points servers. Click Next when finished.



21. Click Next to confirm the settings.

22. Click Close after reviewing the completion page.

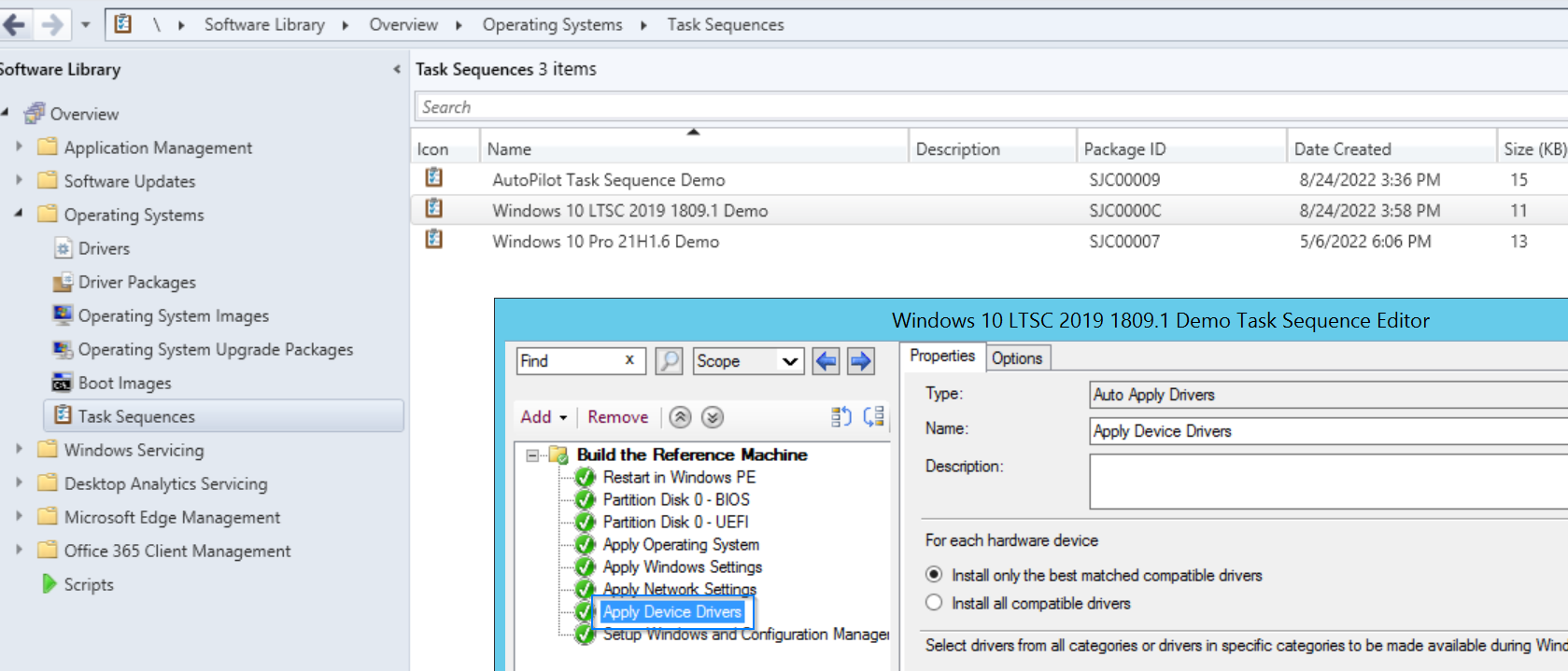

23. Using a basic task sequence to deploy a computer image, the task "Apply Device Drivers" will install only the best-matched compatible drivers. Navigate to Software Library Overview Operating Systems Task Sequences, then right-click on a task sequence and select Edit.
