¿Cuáles son las diferencias entre el cable EloPOS DB9 a RJ45 y el cable X-Series DB9 a RJ45?

Este artículo contiene información sobre las diferencias entre el cable EloPOS DB9 a RJ45 y el cable X-Series DB9 a RJ45

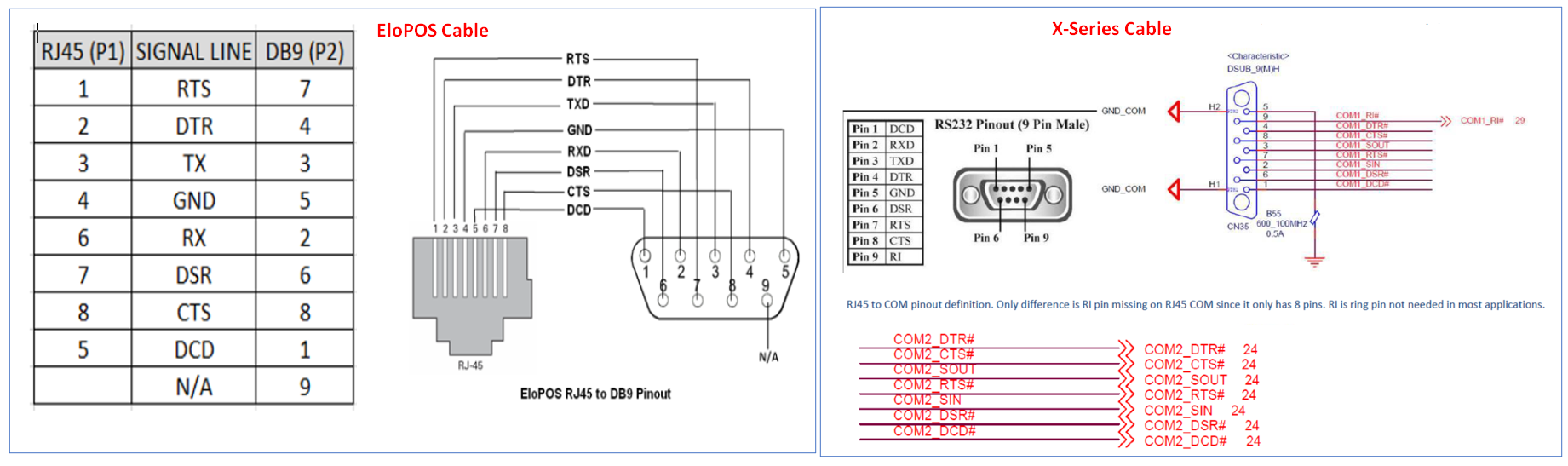

A continuación se muestran las diferencias en la conexión entre el cable EloPOS DB9 a RJ45 y el cable X-Series DB9 a RJ45. Estos dos cables NO son intercambiables.

Consulte las especificaciones completas de estos cables en los siguientes artículos:
