Wat is de pin-out voor de RJ-50 seriële poort op het EloPOS Pack-apparaat?

Dit artikel beschrijft de pin-definitie en de RJ-50 Comport op het EloPOS Pack-apparaat

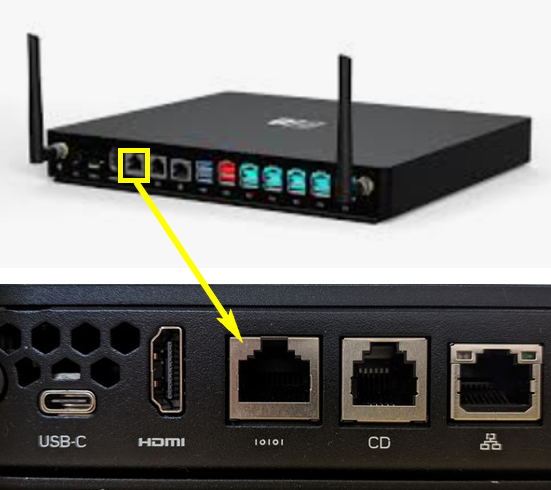

Foto's hieronder geven de locatie van de RJ-50 Comport op het EloPOS Pack-apparaat aan.

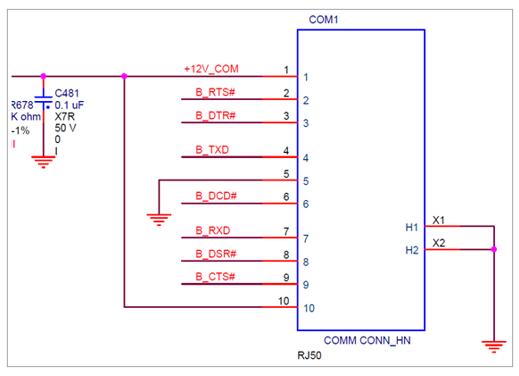

RJ-50 Comport Pin Definitie en signaallijnen

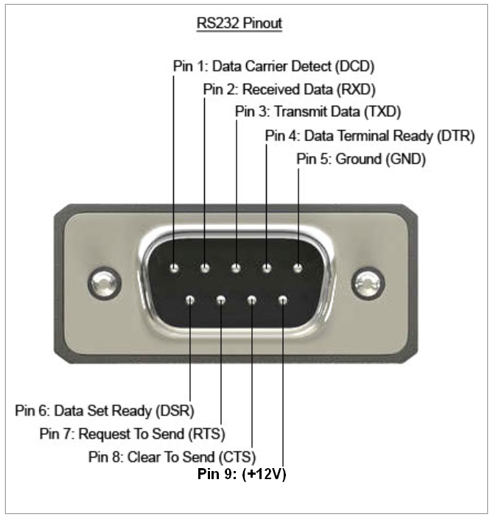

De EloPOS Pack wordt geleverd met een RJ-50 naar DB-9-kabel. Hieronder wordt de pinout van de DB-9-connector getoond.
