Jaki jest pinout portu szeregowego RJ-50 w urządzeniu EloPOS Pack?

Artykuł ten opisuje definicję pinów i portu RJ-50 na urządzeniu EloPOS Pack

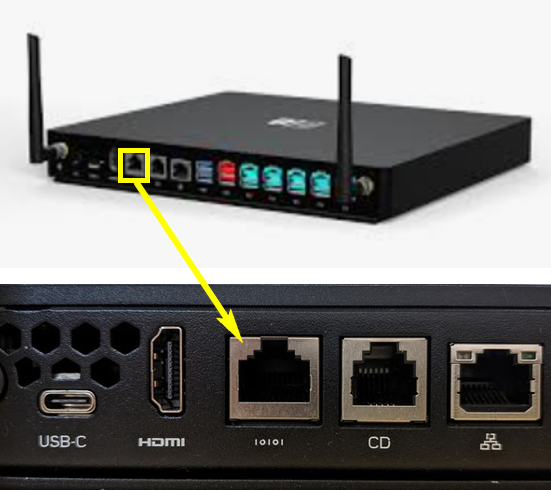

Zdjęcia poniżej pokazują lokalizację portu RJ-50 na urządzeniu EloPOS Pack.

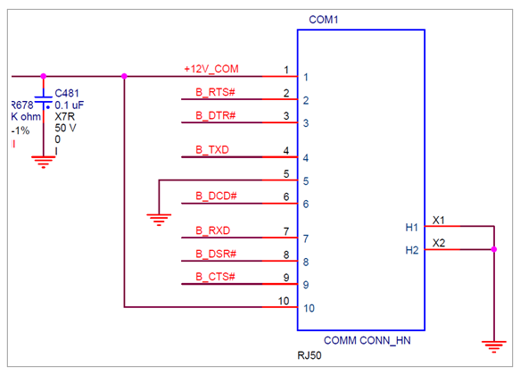

Definicja pinów portu RJ-50 oraz linie sygnałowe

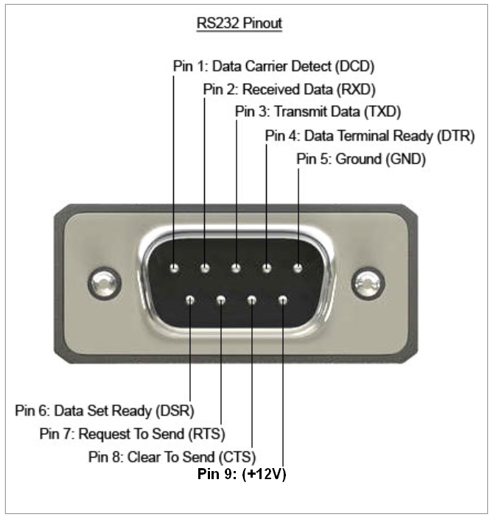

Urządzenie EloPOS Pack jest dostarczane z kablem RJ-50 do DB-9. Poniżej przedstawiono pinout złącza DB-9.
