Was ist die VESA-Halterung am Elo 2202L Monitor?

Dieser Artikel beschreibt, welche Art von Montierung am Elo 2202L Monitor vorhanden ist

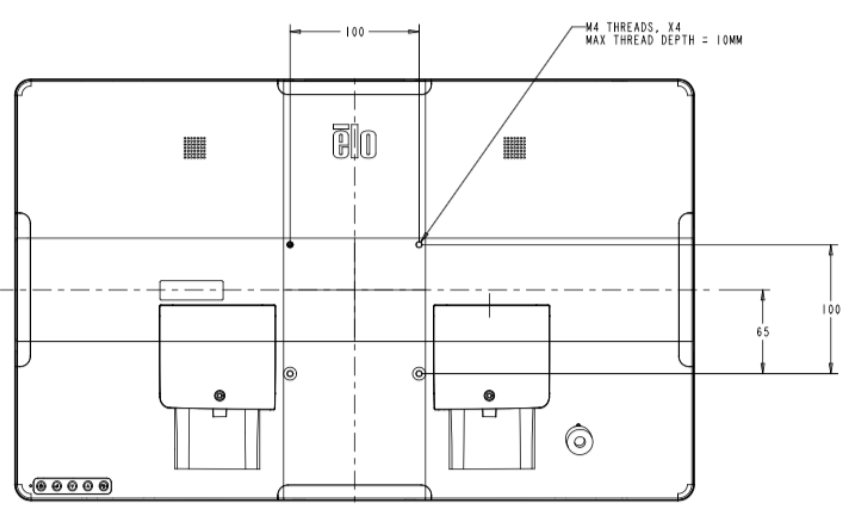

Hintere VESA-Montage am Elo ET2202L:

Eine vierlochige 100 x 100 mm Montageschnittstelle für M4-Schrauben ist auf der Rückseite des Monitors vorhanden. Entfernen Sie den Standfuß mit einem Kreuzschraubendreher, um auf die Montageschnittstelle zuzugreifen. Die VESA FDMI-konforme Zählung ist codiert VESA MIS-B, 75, C und VESA MIS-D, 100, C.
