Willkommen beim Elo-Support

Treiber, Produktinformationen, technische Antworten und mehr.

Was ist die VESA-Halterung am Elo 1502L Monitor?

Dieser Artikel beschreibt, welche Art von Montage am Elo 1502L Monitor vorhanden ist

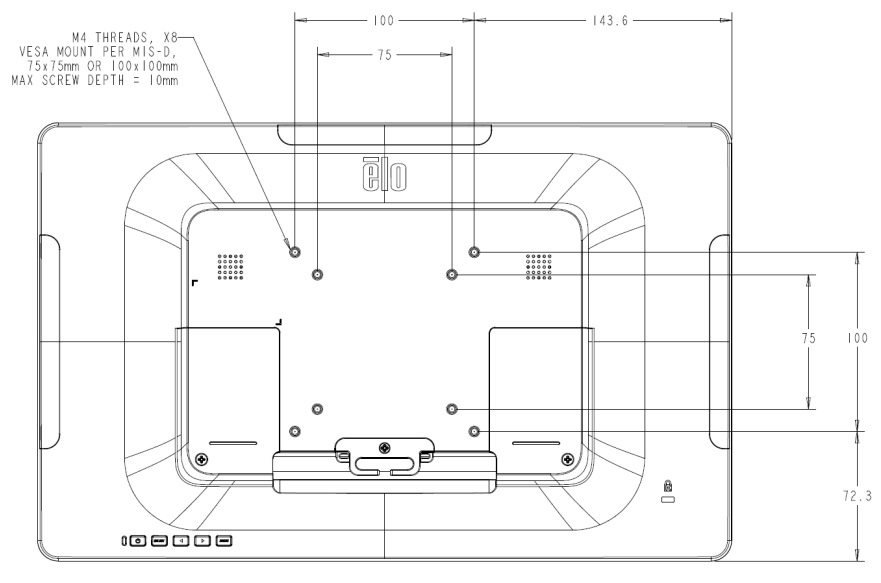

Hintere VESA-Montage am Elo ET1502L:

Ein vierloch-muster für M4-Schrauben mit 75x75mm und 100x100mm wird auf der Rückseite des Monitors bereitgestellt. Entfernen Sie den Standfuß mit einem Kreuzschlitzschraubendreher, um auf diese Montageschnittstelle zuzugreifen. Die VESA FDMI-konforme Montagelösung ist codiert: VESA MIS-D, 75, C und VESA MIS-D, 100, C.
