Was ist die VESA-Halterung am Elo 1717L Monitor?

Dieser Artikel beschreibt die Montagemöglichkeiten des Elo 1717L Monitors

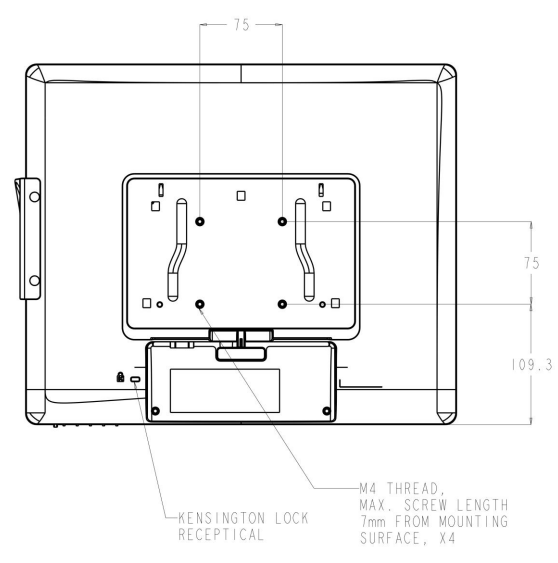

VESA-Montage hinten am Elo 1717L Monitor:

Für den 1717L Touchmonitor ist auf der Rückseite des Monitors ein vierlochiges 75x75mm-Montagemuster für M4-Schrauben vorgesehen. Entfernen Sie den Standfuß mit einem Kreuzschlitzschraubendreher, um auf diese Montageschnittstelle zuzugreifen. Die VESA FDMI-konforme Zählung ist kodiert: VESA MIS-B, 75, C.
