Was ist die VESA-Halterung am Elo 0702L Monitor?

Dieser Artikel erklärt, welche Art von Montierung am 0702L-Monitor vorhanden ist

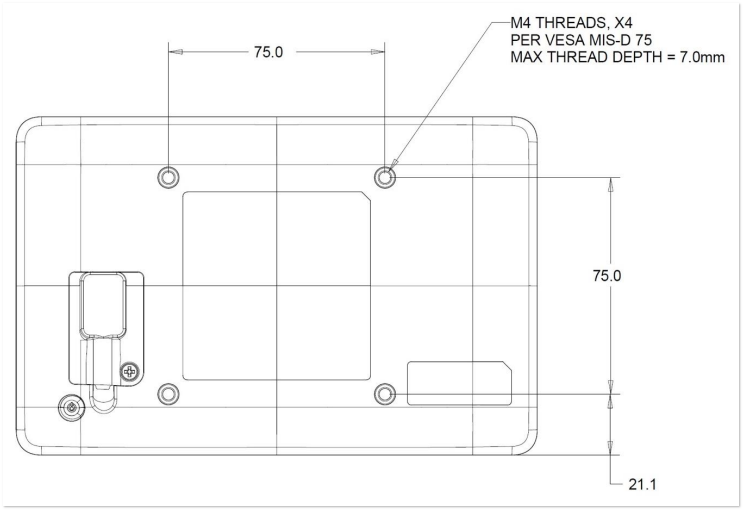

Hintere VESA-Montage am Elo 0702L-Monitor:

Eine Vierloch-Montageschnittstelle 75 x 75 mm für M4-Schrauben ist auf der Rückseite des Monitors vorhanden. Die VESA FDMI-konforme Montierung ist codiert VESA MIS-D, 75, C
