Was ist die VESA-Halterung am Elo 1902L Monitor?

Dieser Artikel beschreibt, welche Art von Montage am Elo 1902L Monitor vorhanden ist

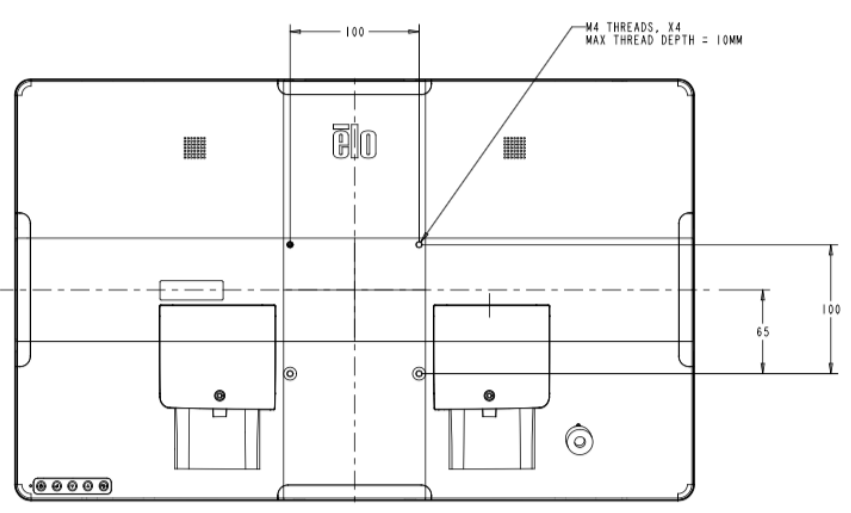

Rückseitige VESA-Halterung am Elo ET1902L:

Eine vierlochige Montagefläche 100 x 100 mm für M4-Schrauben ist auf der Rückseite des Monitors vorhanden. Entfernen Sie den Standfuß mit einem Kreuzschlitzschraubendreher, um auf die Montagefläche zuzugreifen. Die VESA FDMI-konforme Halterung ist kodiert VESA MIS-B, 75, C und VESA MIS-D, 100, C.
