Willkommen beim Elo-Support

Treiber, Produktinformationen, technische Antworten und mehr.

Was sind die Basis-Montageoptionen für den Elo 2201L Monitor?

Dieser Artikel liefert die Basis-Montageoptionen für den Elo 2201L Monitor

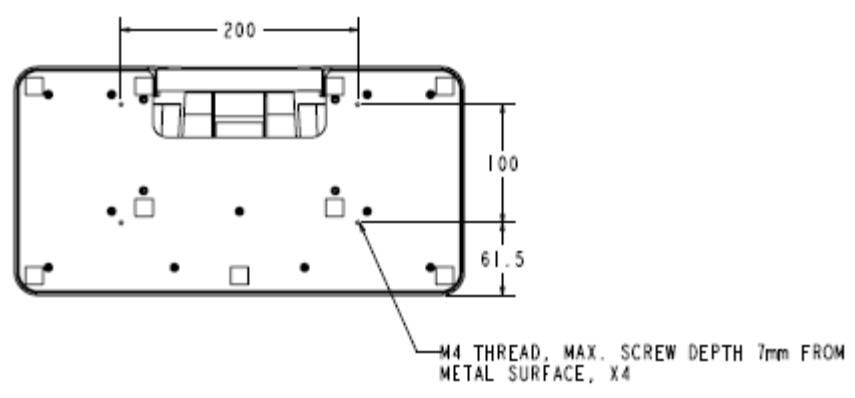

Basis-Montageoptionen am Elo ET2201L:

Für den 2002L Touchmonitor sind auf der Unterseite des Standfußes gewindegeschneiderte Durchgangsbohrungen zum Montieren oder Sichern vorgesehen. Siehe unten.
