Was ist die VESA-Halterung am Elo 1517L Monitor?

Dieser Artikel beschreibt die Montagemöglichkeiten des Elo 1517L Monitors

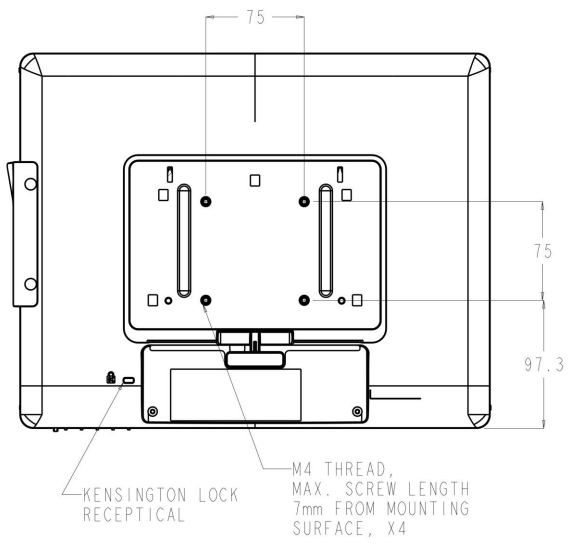

Hintere VESA-Montage am Elo 1517L Monitor:

Für den 1517L Touchmonitor ist ein vierlöchrige 75x75mm Montagemuster für M4-Schrauben an der Rückseite des Monitors vorgesehen. Entfernen Sie den Standfuß mit einem Kreuzschlitzschraubendreher, um auf diese Montage-Schnittstelle zuzugreifen. Die VESA FDMI-konforme Zählung ist codiert: VESA MIS-B, 75, C.
