Was ist die VESA-Halterung am Elo 2402L Monitor?

Dieser Artikel beschreibt, welche Art von Montage am Elo 2402L Monitor vorhanden ist

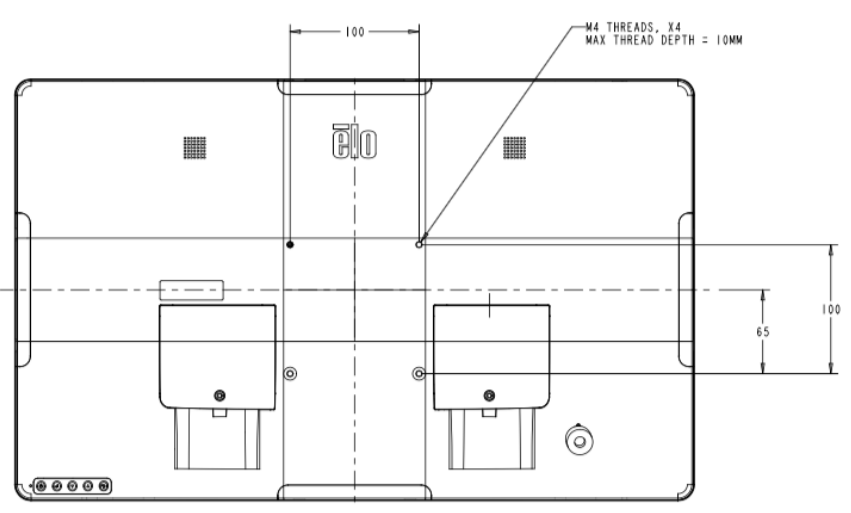

Hintere VESA-Montage am Elo ET2402L:

Eine Vierloch-Montageschnittstelle 100 x 100 mm für M4-Schrauben ist auf der Rückseite des Monitors vorgesehen. Entfernen Sie den Standfuß mit einem Kreuzschraubendreher, um auf die Montageschnittstelle zuzugreifen. Die VESA FDMI-konforme Montage ist codiert VESA MIS-B, 75, C und VESA MIS-D, 100, C.
