Willkommen beim Elo-Support

Treiber, Produktinformationen, technische Antworten und mehr.

Wo finde ich die Maßzeichnungen für den 2799L Outdoor Open Frame Monitor?

Dieser Artikel enthält die Maßzeichnungen für den 2799L Outdoor Open Frame Monitor

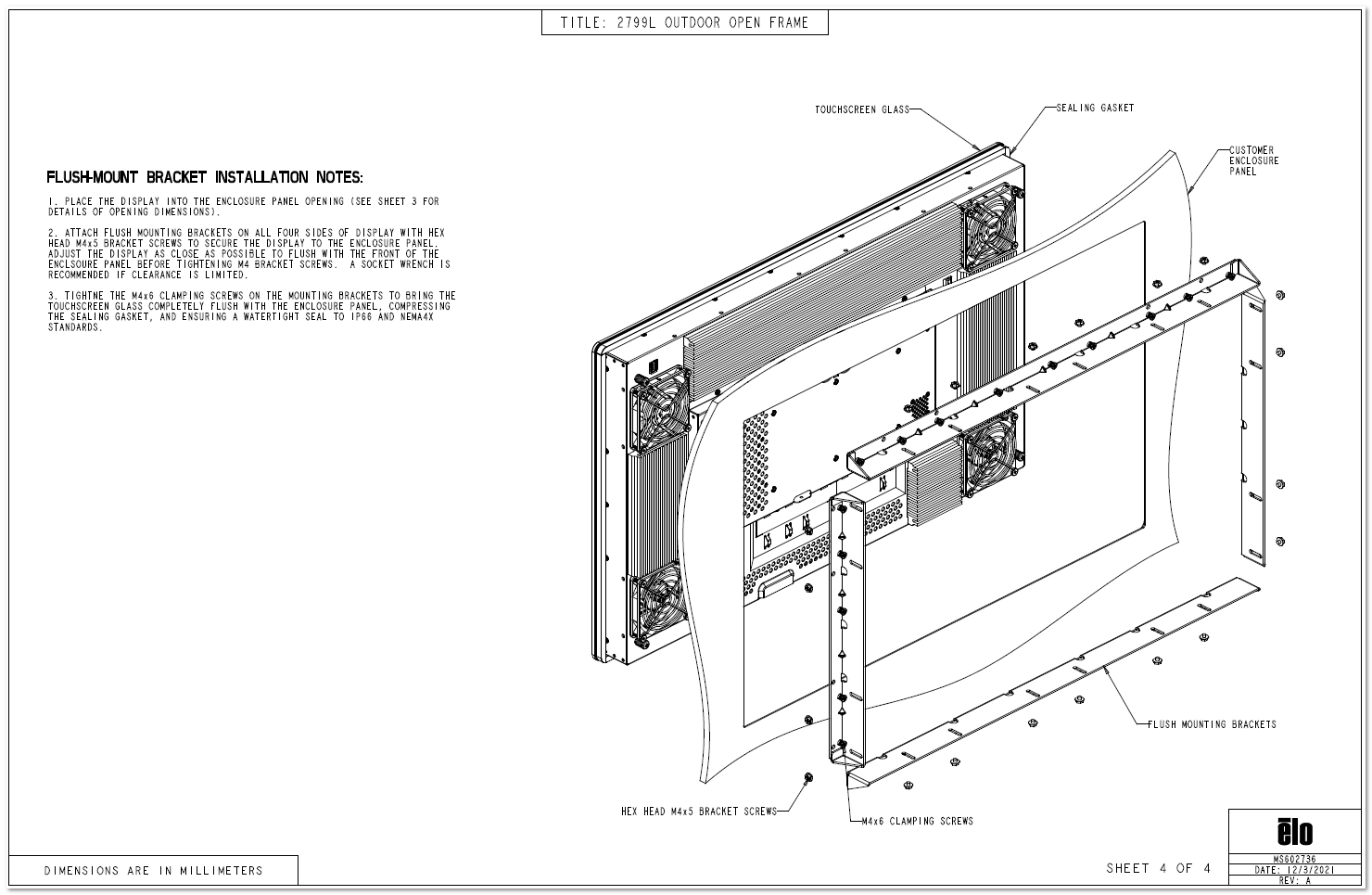

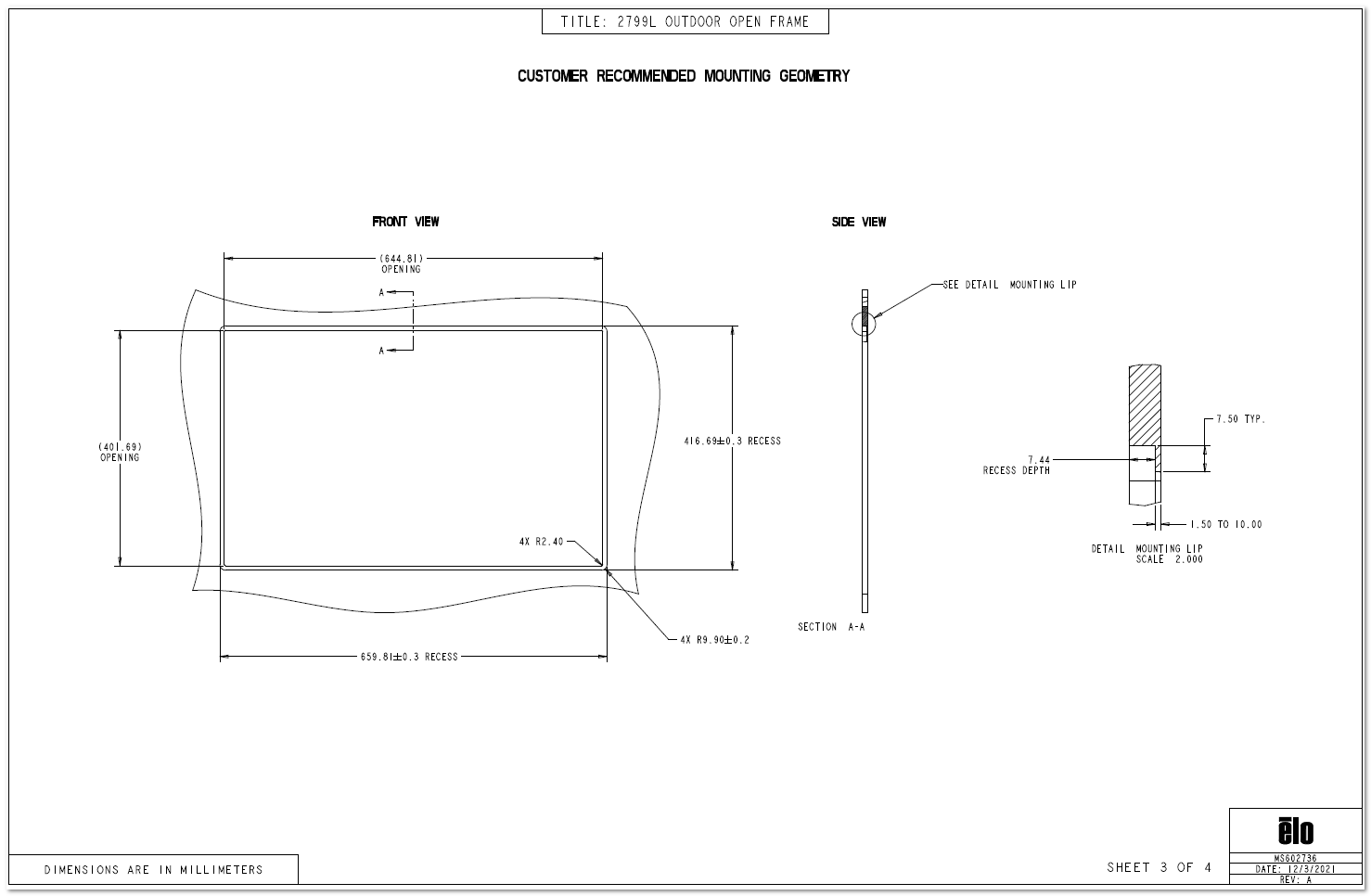

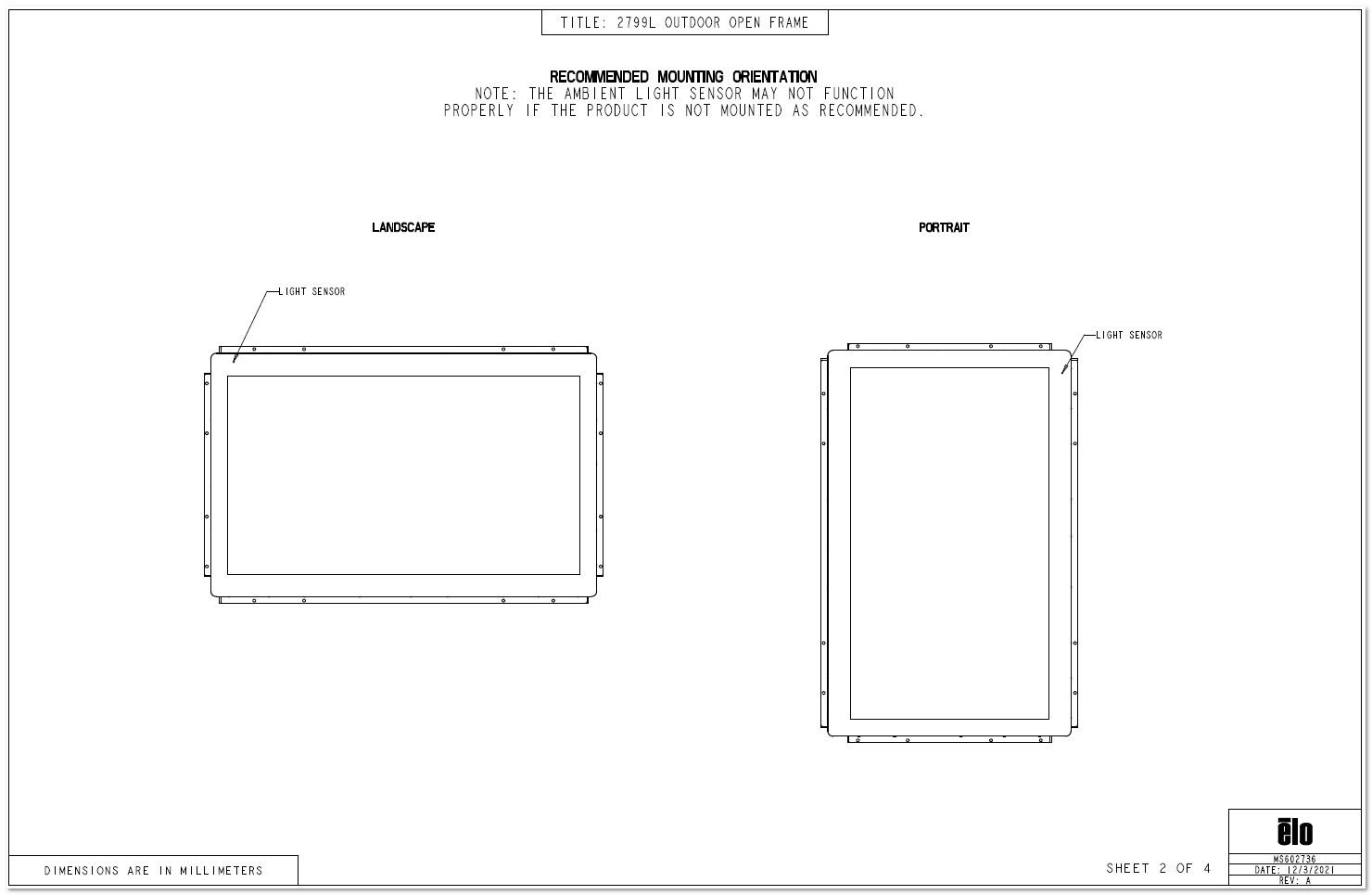

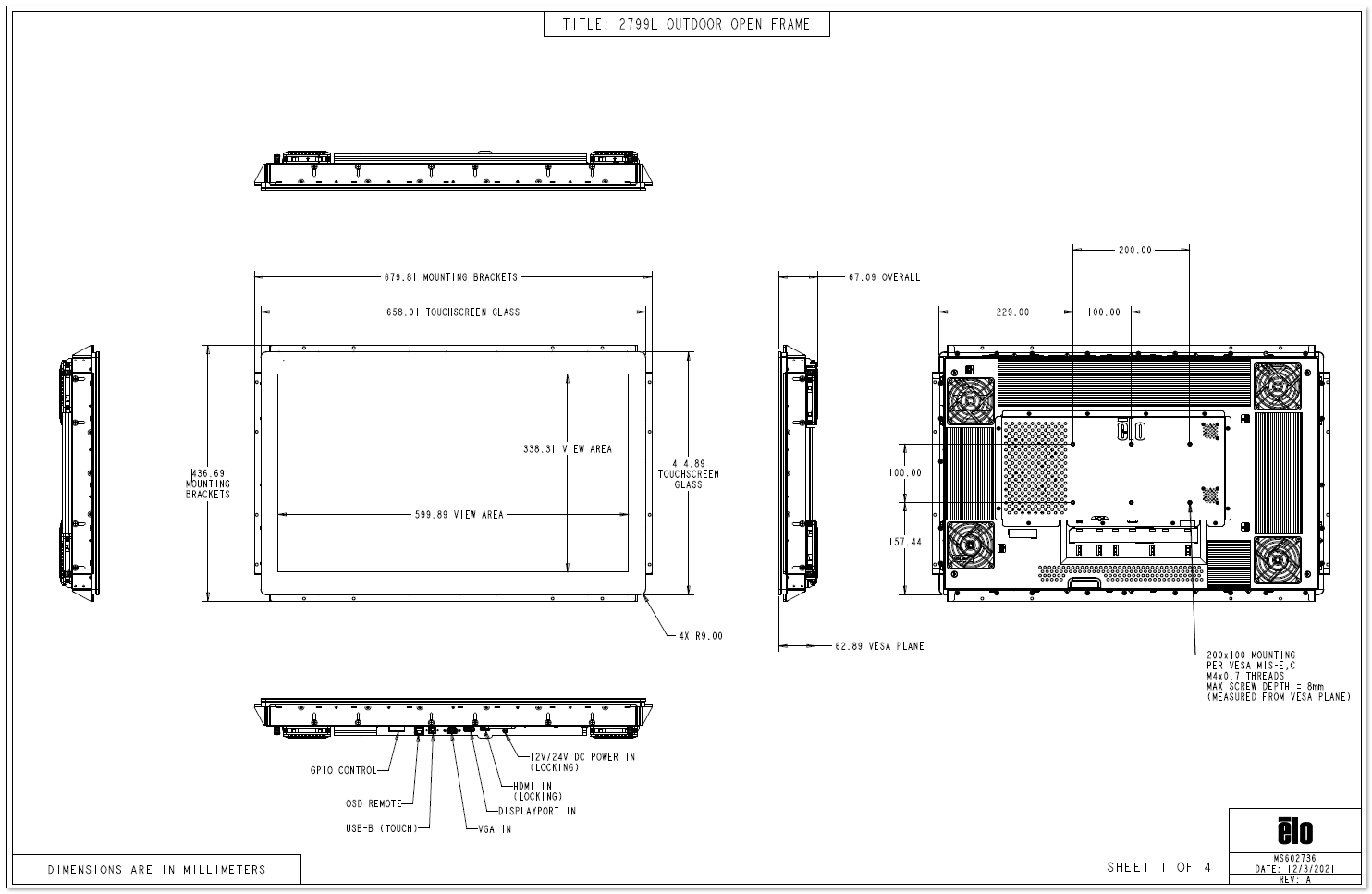

Zeichnungen:



Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
