Willkommen beim Elo-Support

Treiber, Produktinformationen, technische Antworten und mehr.

Wo finde ich Informationen über das E548786, 1593L PCAP Flush-Mount Bracket Kit?

Dieser Artikel enthält Informationen für Elo P/N: E548786, 1593L PCAP Flush-Mount Halterungskit

Diese Halterungen sind im Elo 1593L Open Frame Monitor enthalten und werden auch separat als Kit verkauft.

Kit enthält:

  • 4 Flush Mount Halterungen
  • 16 Schrauben

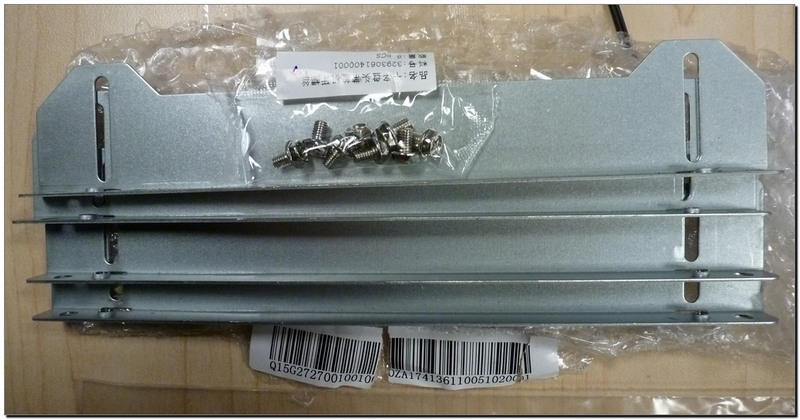

Foto

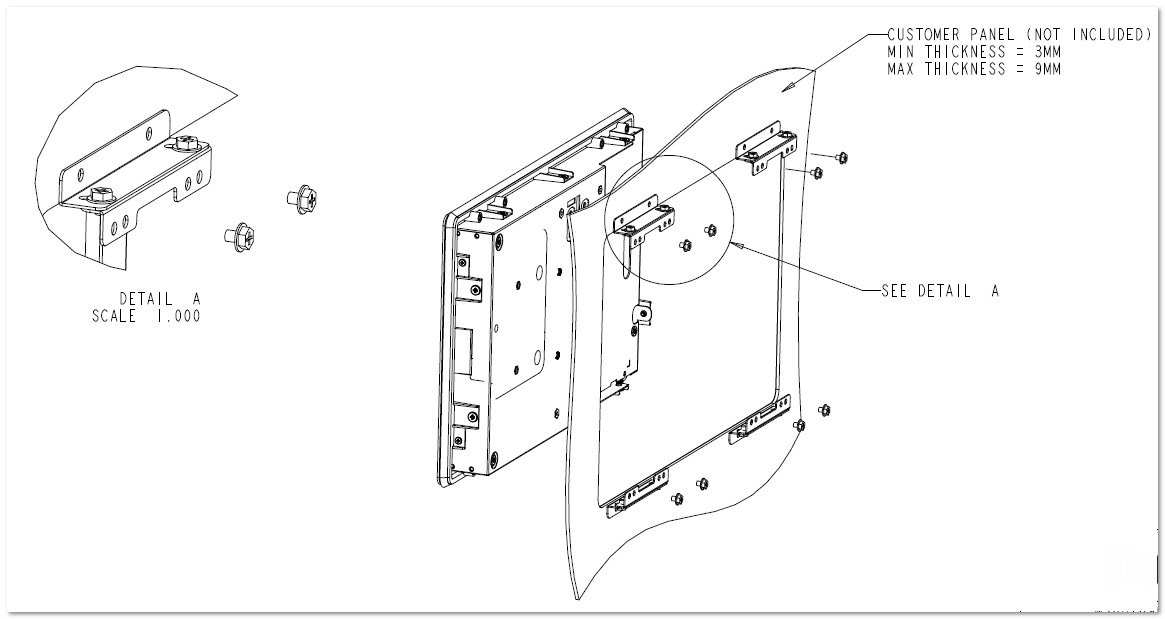

Montage am Monitor

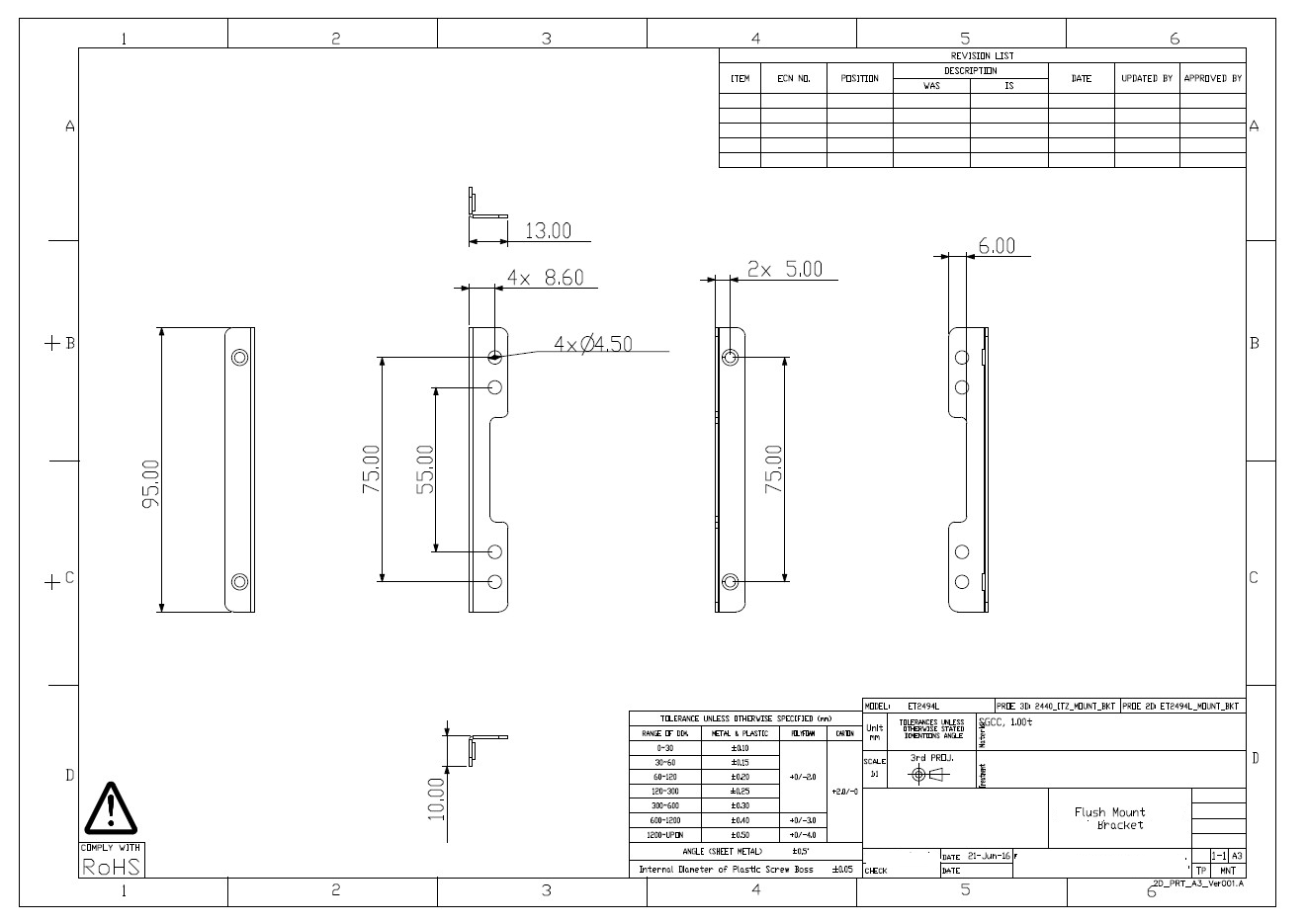

Maßzeichnung
