Willkommen beim Elo-Support

Treiber, Produktinformationen, technische Antworten und mehr.

Wo kann ich die Maßzeichnungen für den 1099L Outdoor Open Frame Monitor finden?

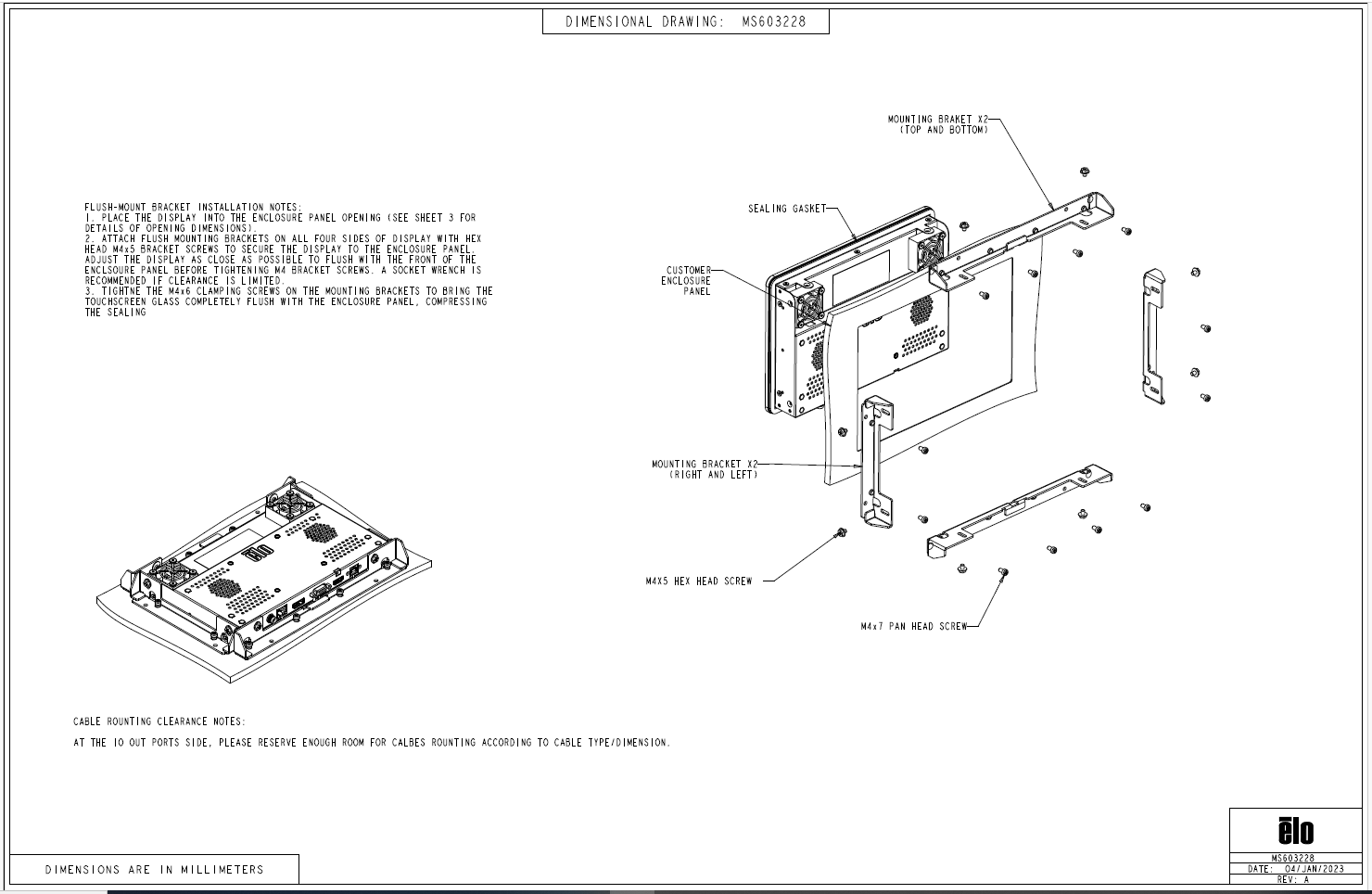

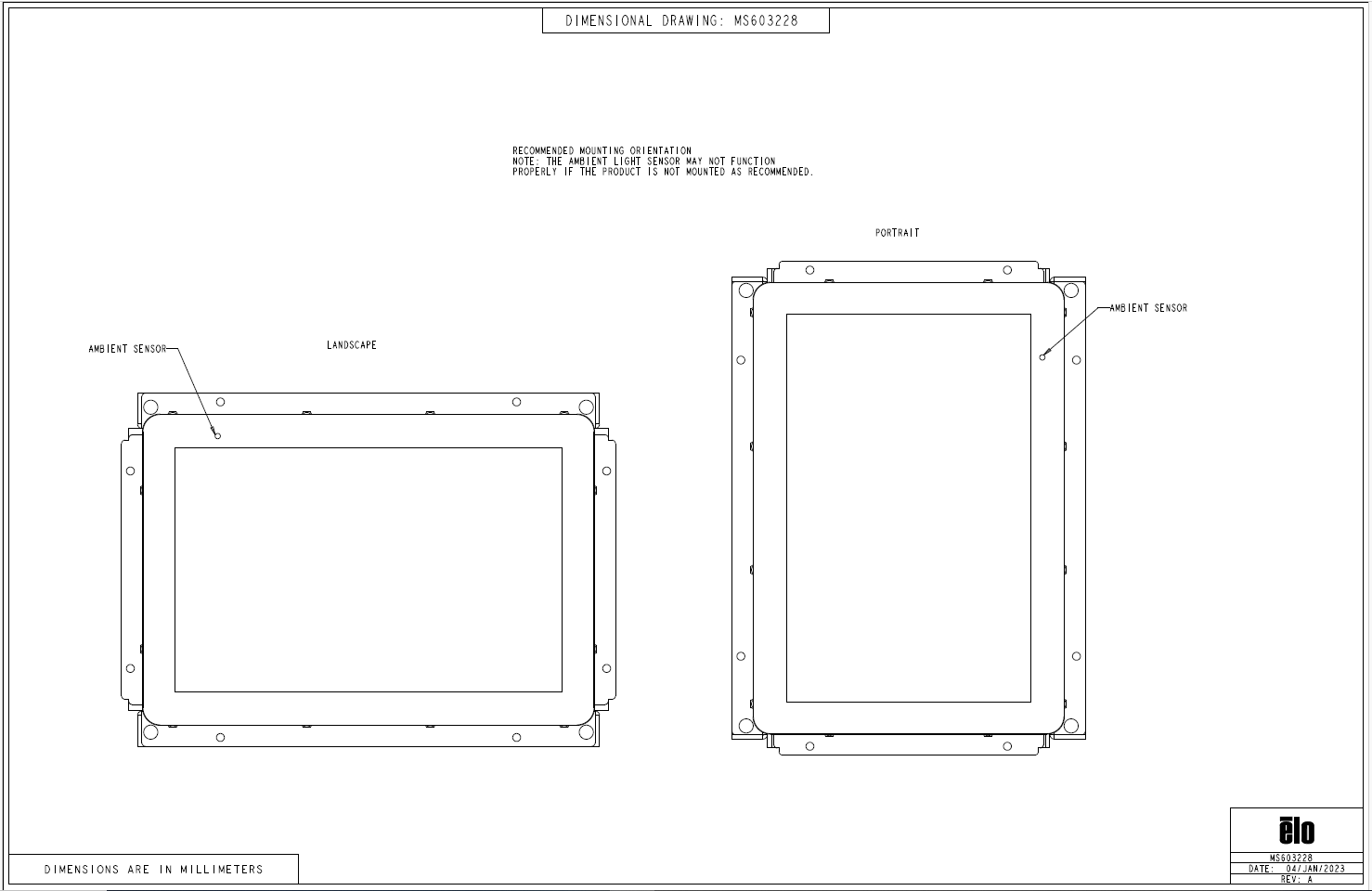

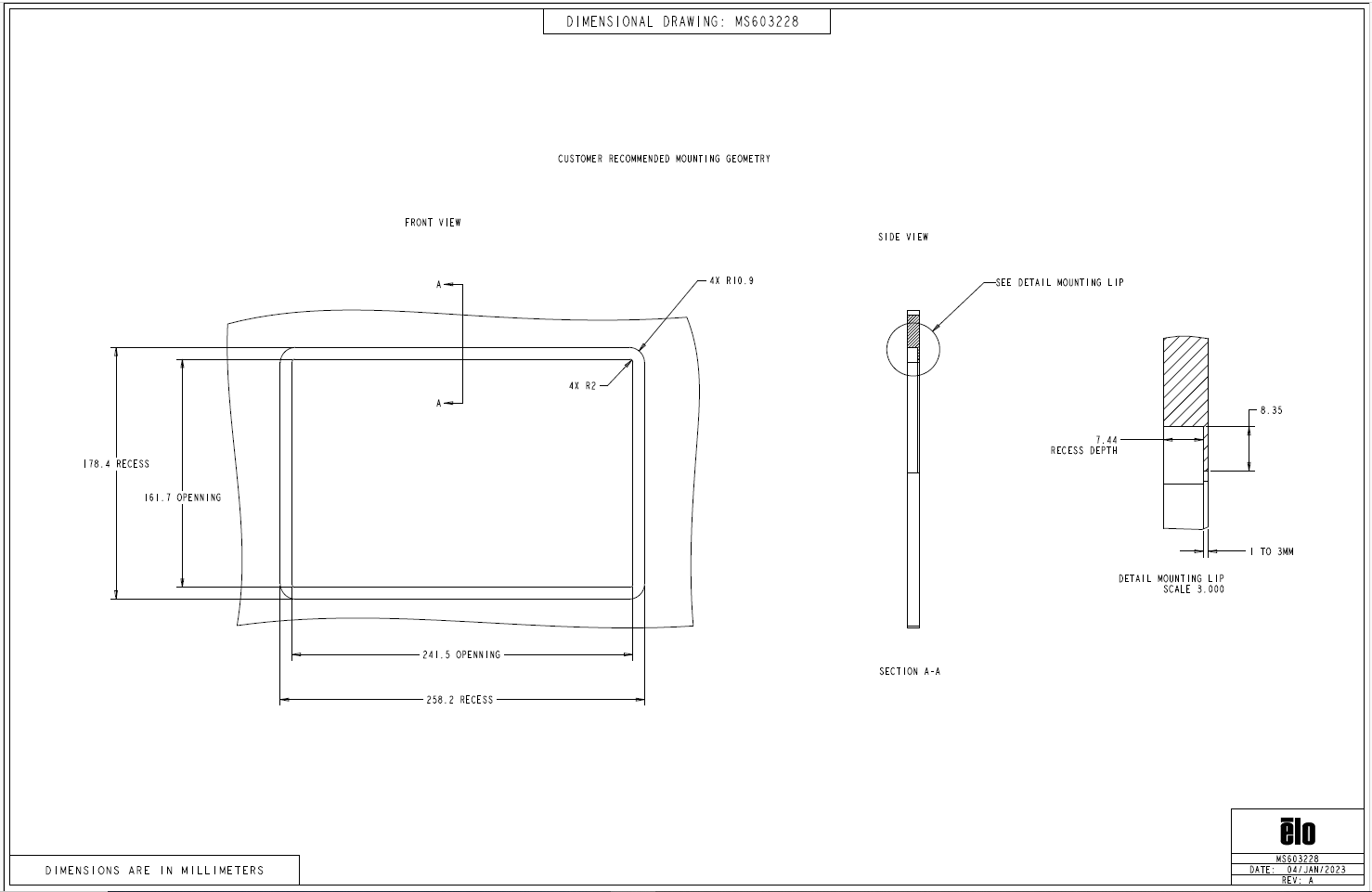

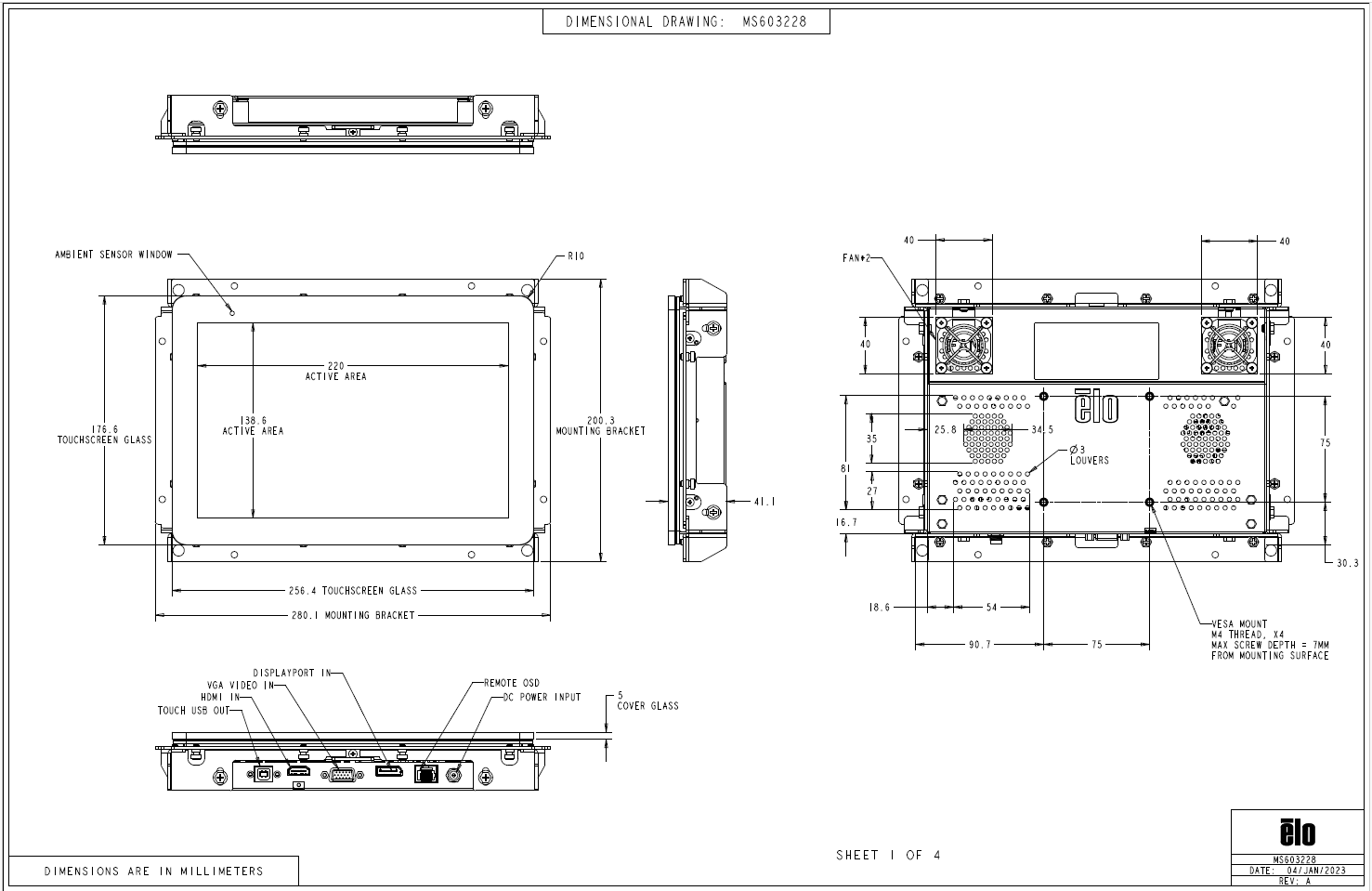

Dieser Artikel enthält die Maßzeichnungen des ET1099L Outdoor Open Frame Touchmonitors

Außerdem finden Sie die Zeichnungen im Anhang zu diesem Artikel.
