Wie montiere ich den 1099L Outdoor Open Frame Touchmonitor?

Dieser Artikel beschreibt die verschiedenen Methoden zur Montierung des 1099L Outdoor Open Frame Touchmonitors

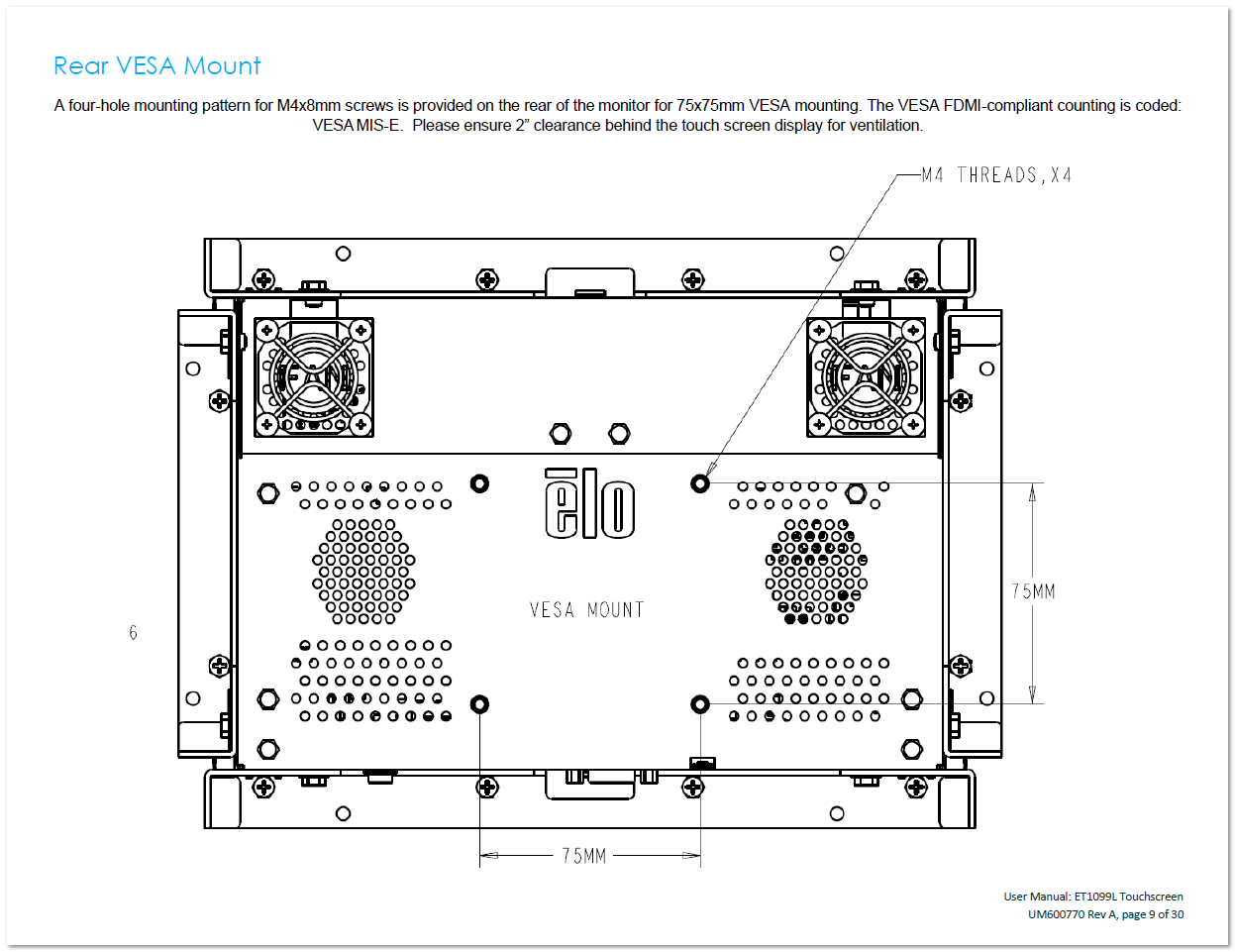

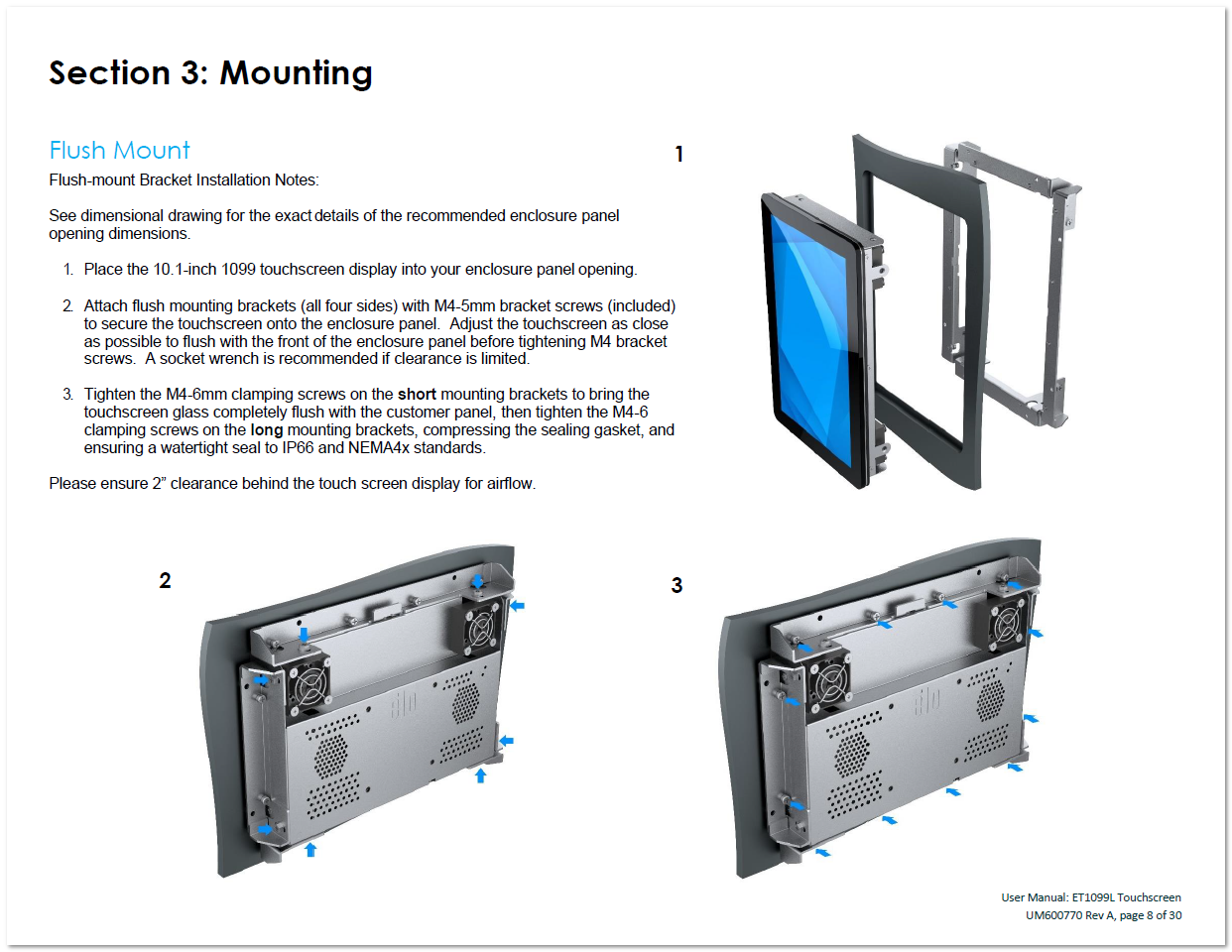

Aus den Seiten 8-9 des Benutzerhandbuchs:

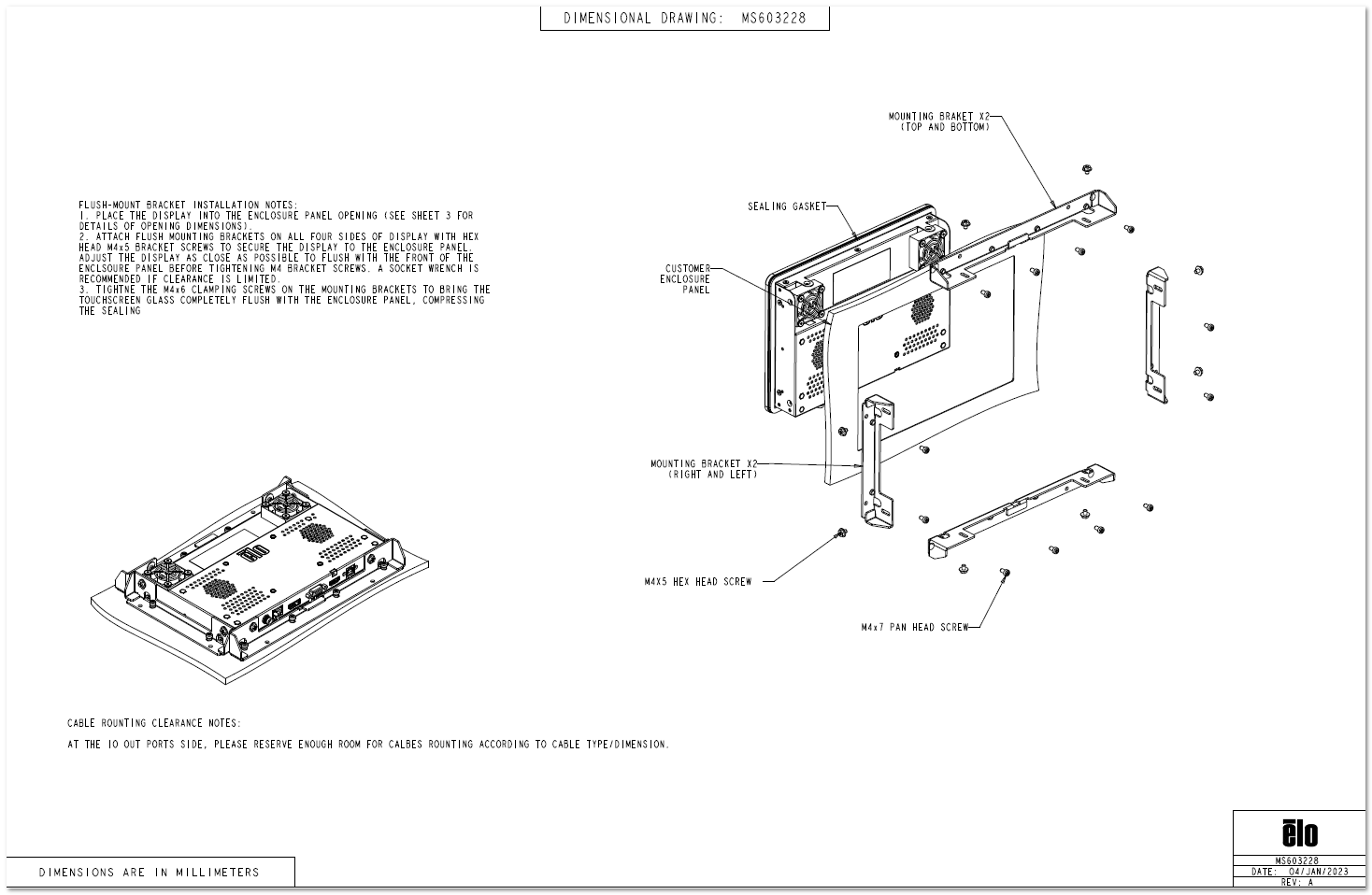

Aus Seite 4 der Dimensionalzeichnung:
