This article describes how to integrate Azure AD with EloView 3 (SAML)

Below and attached is an Azure AD integration Guide for EloView (SAML)

Introduction

This guide will teach you how to integrate EloView single sign-on (SSO) with Microsoft Azure Active Directory (Azure AD). It will also reference configuration steps for Hybrid Azure AD. When you integrate EloView with Azure AD, you can:

• Control in Azure AD who has access to EloView.
• Enable your users to sign in to EloView with their Azure AD account automatically.
• Manage your accounts in one central location - the Azure portal

Prerequisites
To get started, you will need the following items:

• Azure AD subscription with Global Administrator access or privilege to create enterprise applications.
• EloView subscription with Admin role access. If you don't have a subscription, you can sign-up for a free 45-day trial account from https://manage.eloview.com for your organization. If your organization already has an EloView account, ask a member to send an invite from the User Management page.

Note for Hybrid Azure AD
You will need to install Azure AD Connect (ADSync) as an on-premise service to synchronize user accounts and groups between Azure AD and Active Directory.

Collect EloView OrgID #

Create an enterprise app named EloView in Azure AD

4. Sign into your Azure portal (https://portal.azure.com) with an account with a Global Administrator role or privilege to create enterprise applications.

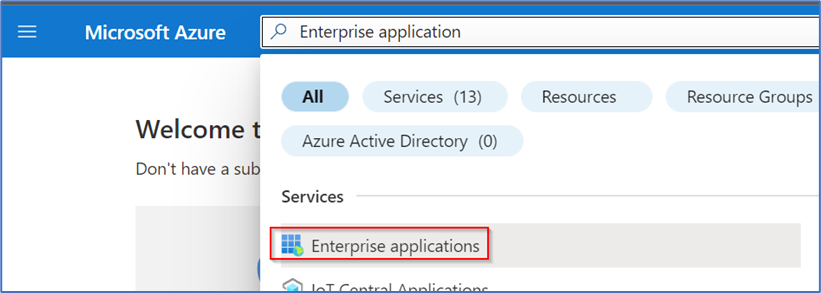

5. In the search bar, type in enterprise application, and then click the results Enterprise application.

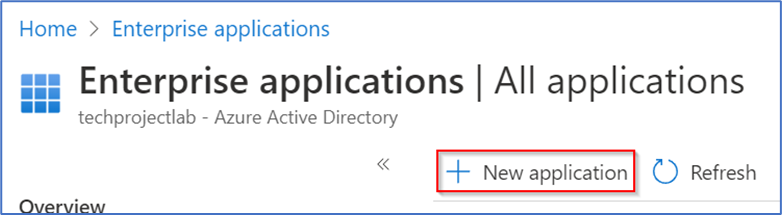

6. Click New application

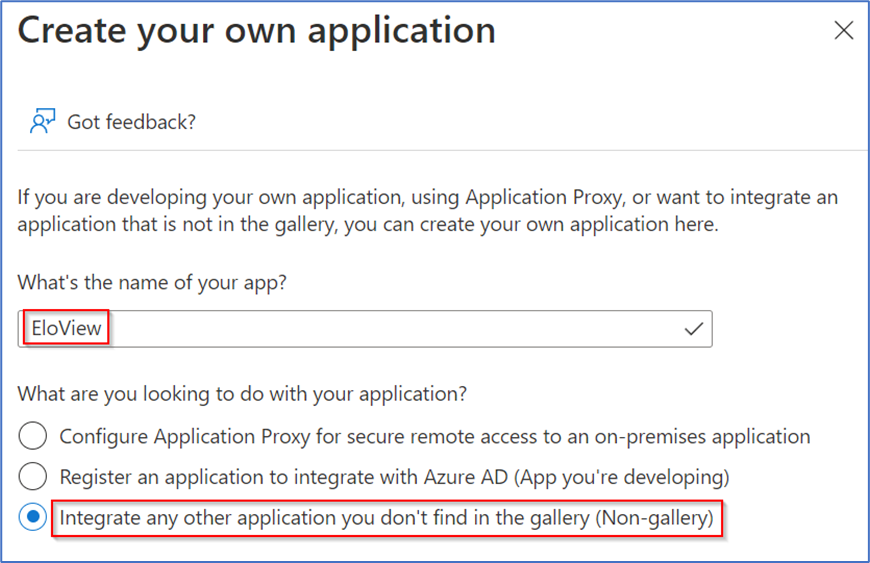

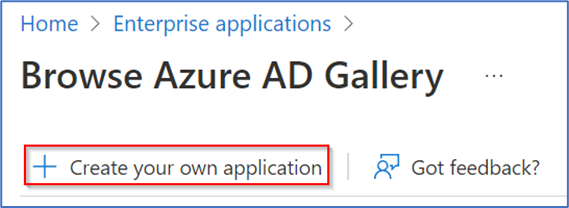

7.  Click Create your own application



8.  Provide a name for your application. For example, EloView
9.  Select Integrate any other application you don’t find in the gallery (Non-gallery).

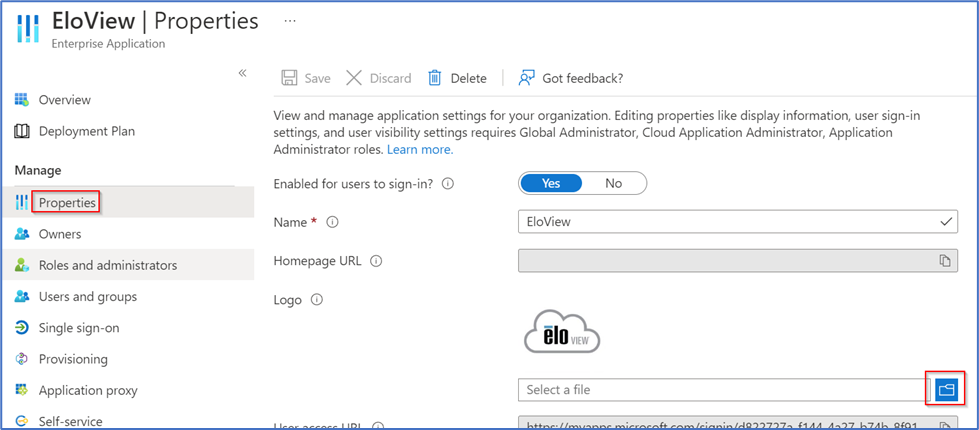

10.  At the left navigation pane, click Properties. Upload an image file for your application, and then click Save. This is the application logo that users will see on My Apps, in the Office 365 application launcher, and when admins view this application in the application gallery.


Right-click on image save logo



11.  At the left navigation pane, click Users and group. Click Add user/group, click None selected, choose users, click Select, and then Assign.



12. At the left navigation pane, click Single sign-on. The next following section will cover configuring boxes 1-4. In Box 1, click Edit.

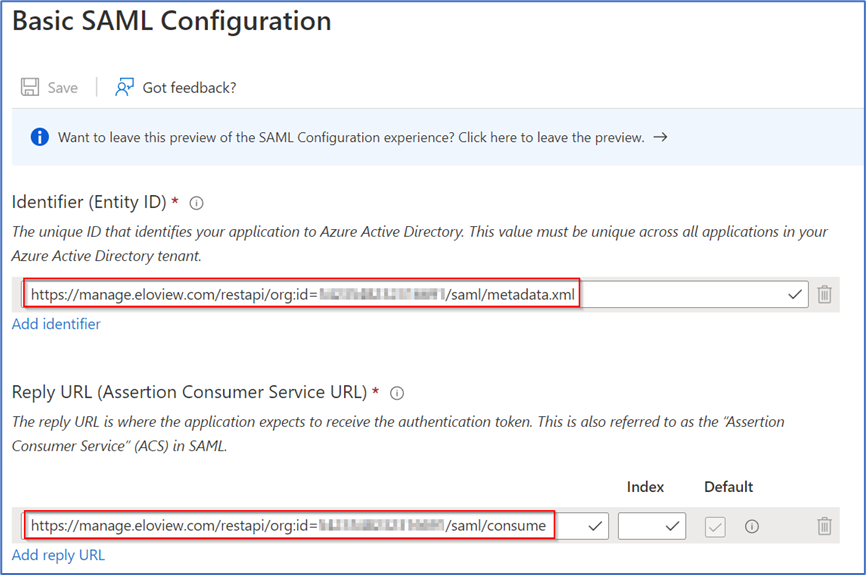

13. Enter the following values after replacing bold sections with your OrgID #. Refer to steps 1-3 to collect your unique OrgID from EloView. Click Save when finished.

Identifier (Entity ID)
https://manage.eloview.com/restapi/org:id=1234567XXXXXXXX1/saml/metadata.xml
Reply URL (Assertion Consumer Service URL)
https://manage.eloview.com/restapi/org:id=1234567XXXXXXXX1/saml/consume
*Leave the index value blank.

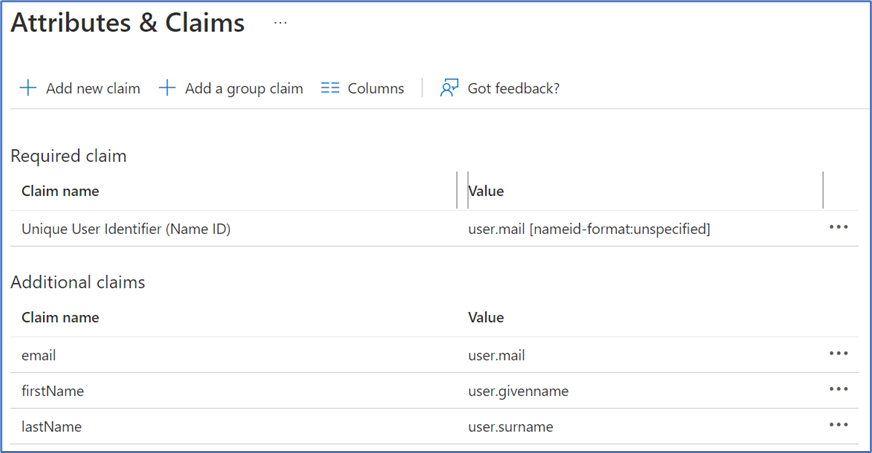

14. In Box 2, click Edit. Match the following claims and values shown in the image below.



15. Click user.mail [nameid-format:emailAddress], change the Name identifier format to Unspecified and then click Save.

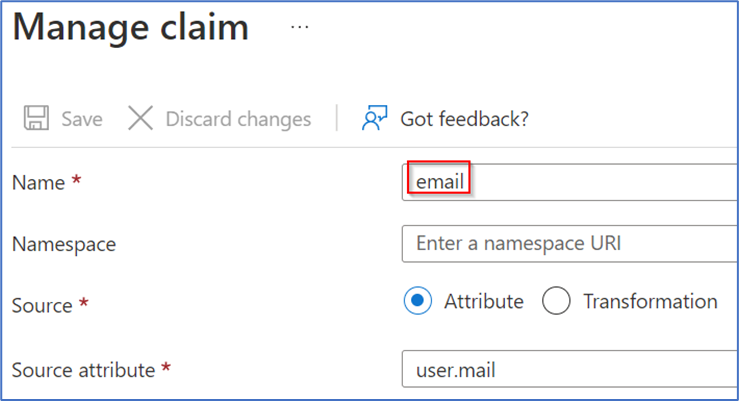

16. Click user.mail, change Name to email, clear the value in Namespace, and then click Save.



17. Click user.givenname, change Name to firstName, clear the value in Namespace, and then click Save.

18. Click user.surname, change Name to lastName, clear the value in Namespace, and then click Save.



19. Next to user.userprincipalname, click the … (dots), and then click Delete. Confirm Delete.

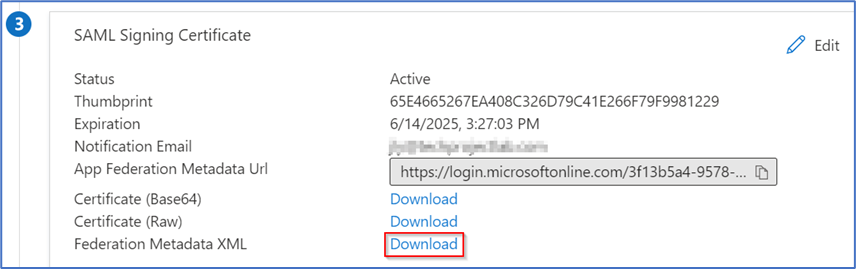

20. In Box 3, click the Federation Metadata XML download link.



21. Open the XML file with a text editor and then search for the text string X509Certificate.

22. Record the long string of text between and for later use.

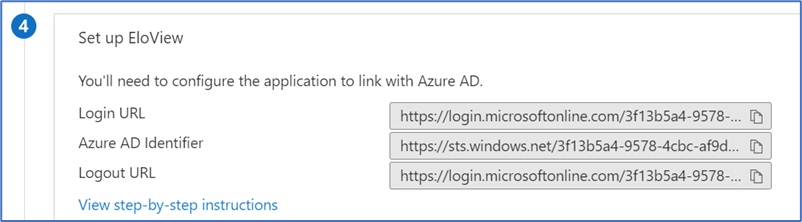

23. In Box 4, record the Login URL and the Logout URL for later use.



Configure SAML settings in EloView

24. Sign in to the EloView (https://manage.eloview.com) with an account with Admin privileges.

25. At the top navigation section, click Accounts and then Account Settings.

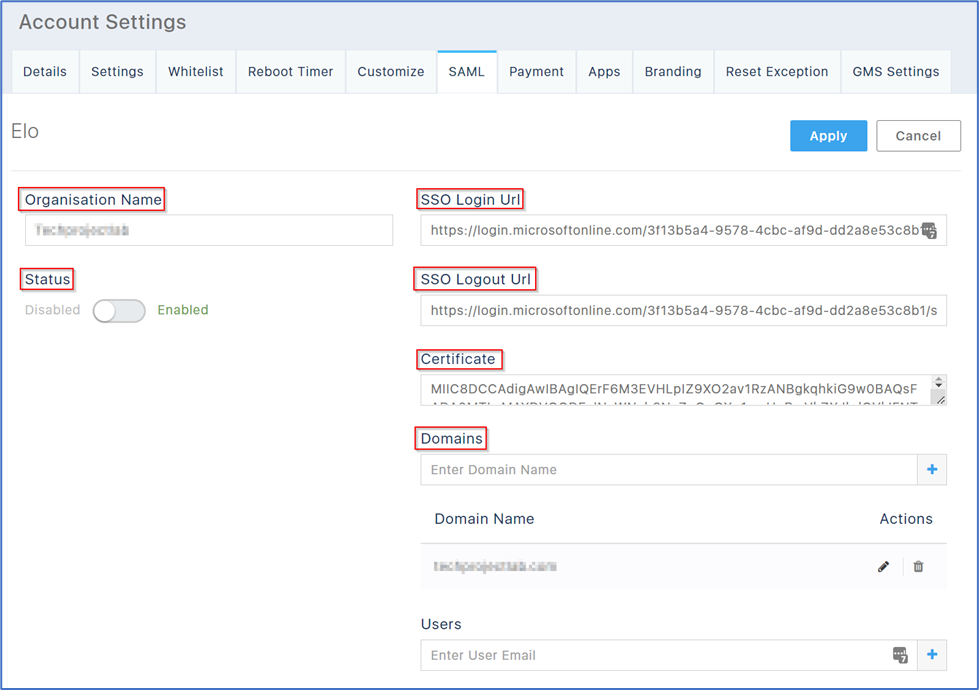

26. On the SAML tab, click Edit.

27. Enter a nickname for your identity provider (Idp). For example, Azure AD.



28. Paste in SSO Login URL taken from the Login URL. Refer to step 23 to obtain the Login URL.

29. Paste in SSO Logout URL taken from the Logout URL.

30. Paste in the Certificate string taken from the Federation Metadata XML file.

31. Enter the domain names associated with your user’s email addresses, and then click (+) to add.

32. Leave the Users field blank.

33. Switch the Status to Enable, and then click Apply when finished. After enabling SAML, optionally enable Login via SAML only after successfully verifying single sign-in.

Verify EloView SSO from the Microsoft My Apps Portal

34. Sign into the Microsoft My Apps portal (https://myapps.microsoft.com) with your organization user account to access the application library. This user account should have EloView admin account access.

35. Click on your new EloView enterprise application.

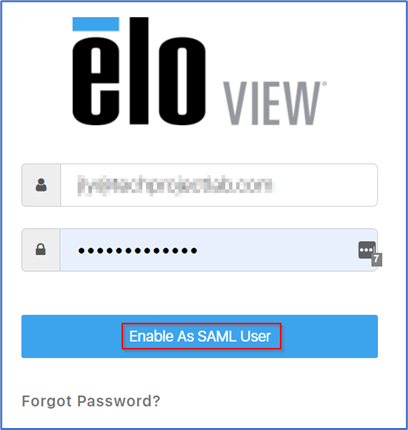

36. On the EloView sign-in page, click Enable as SAML User. Refresh the page if needed.



37. At the top navigation section, click Accounts and then Manage Users. If the Account Type for the admin account has changed to (SAMLUser) Account Admin, SAML configuration was successful.

Configuring access roles with security group claims in SAML token

38. Sign into the Azure portal.

39. Create a new security group in Azure AD or Active Directory. For example, EloView_Admins or EloView Admins.

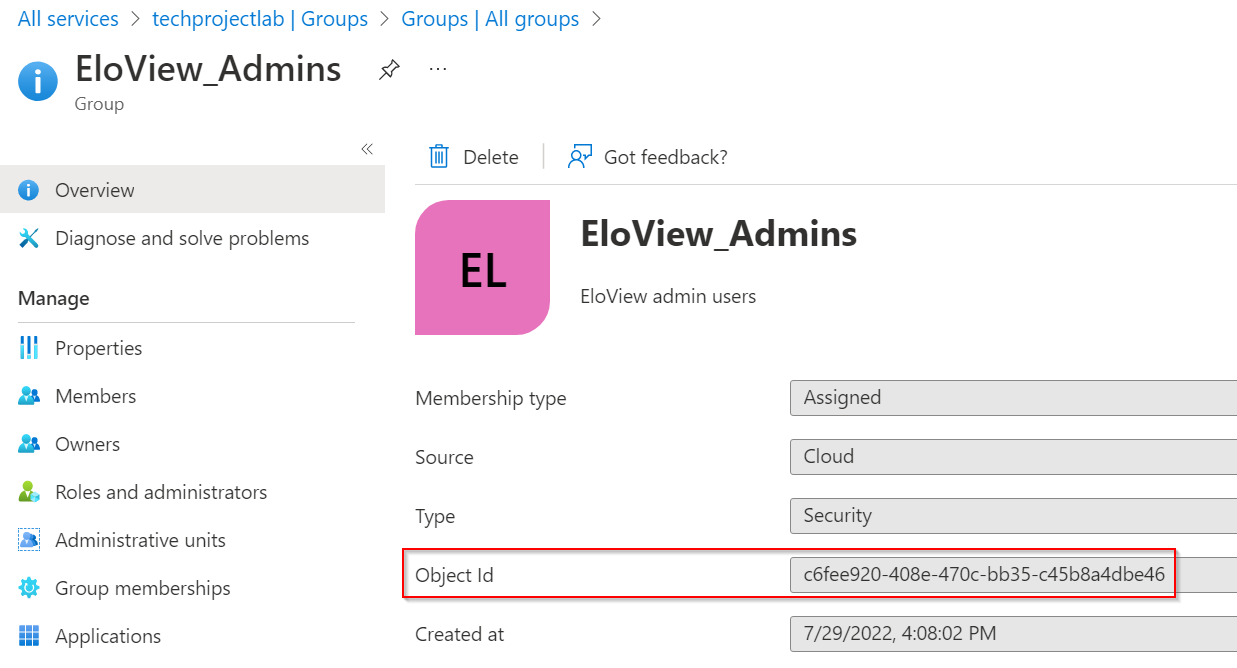

40. Go into the security group properties and collect the Object Id.



41. Add users to the security group you want to have access to this role.

42. Sign into EloView. Go to Accounts, Manage Users, and then the Roles tab.

43. Click Add New Role

44. Paste in the Object Id of the security group. At this time, using the display name of the security group to name the custom role is not supported.

45. Using the toggles, enable permissions for the role, then scroll towards the bottom of the page, and finish assigning permissions by clicking Done.

46. Go back to the Azure portal.

47. Go to your “EloView” enterprise application.

48. Click single sign-on, and then the edit button under Attributes & Claims

49. Click Add a group claim

50. From the Group Claims windows, choose All groups.

51. Leave Source attribute as Group ID.

52. Optionally, use the filter group advance option to limit the scope of the search when there are many security group associations. For example, set Attribute to match as Display name, Match with as Contains, and then String as EloView. This will search security groups associated with the user that contain “EloView” in the name.

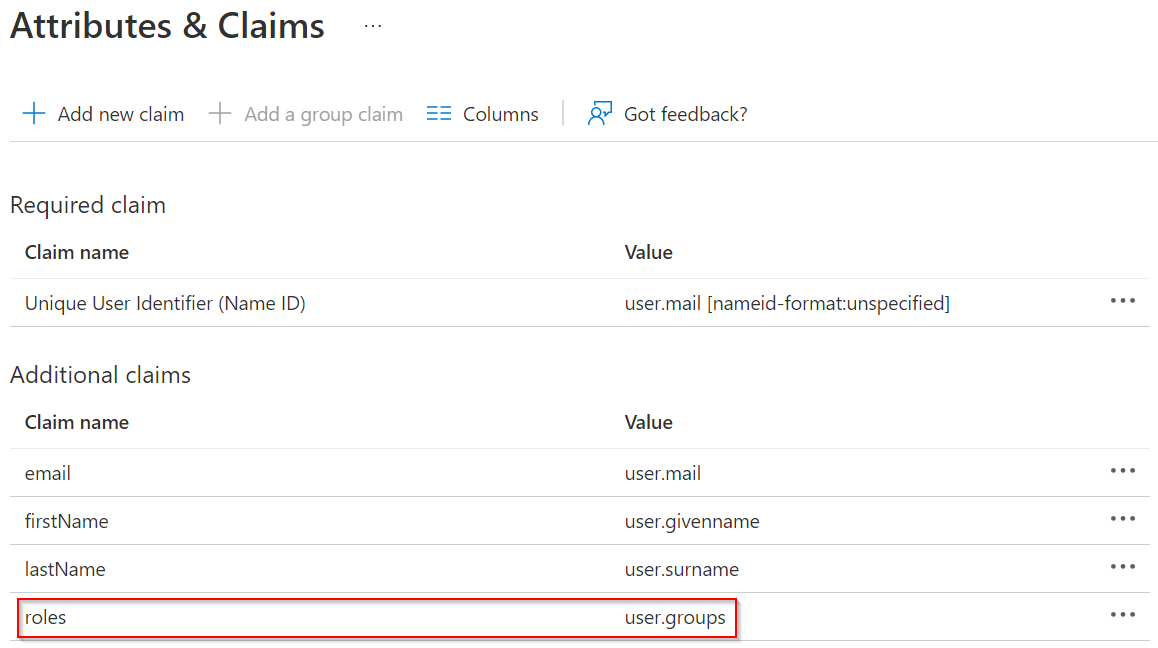

53. Under Customize the name of the group claim, for the Name field type in the value roles. This should be lowercase. Leave the Namespace field blank and the two checkboxes unchecked. Click Save when finished.



54. Use the Test single sign-on with “EloView” to verify the configuration. You can also download the SAML response to inspect the XML for the presence of the security group Object ID.

55. Log into EloView, then go to Accounts, Manage Users, Users tab. Verify user has been assigned the correct role.

56. Go back to your “EloView” enterprise application in the Azure portal, then go to Users and groups.

57. Add in your security group. Assigned users and groups will be able to access the EloView app from My Apps.

Configuring access roles by specifying a role for a claim in a SAML token.

58. Log into Azure AD or Active Directory.

59. Designate an attribute property under the user account profile to specify an EloView access role. For example, I can use the attribute EmployeeID for an Azure AD user or ExtensionAttribute1 for an Active Directory user to specify one of the following default system roles for the user: Admin, Registered User, or Viewer.

60. Go to your “EloView” enterprise application.

61. Click single sign-on, and then the edit button under Attributes & Claims.

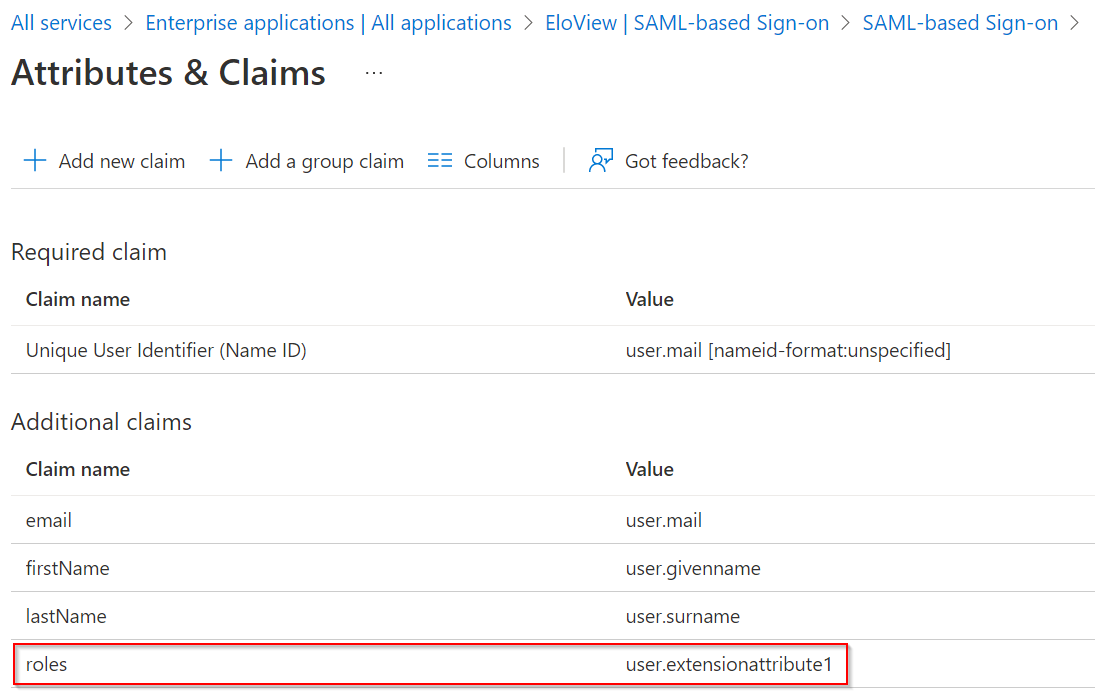

62. Click Add new claim.

63. In the Name field, type in roles. This should be lowercase. Leave the Namespace field blank.

64. For the Source, choose Attribute.

65. For the Source attribute, choose user.employeeid or user.extensionattribute1. Click Save when done.


66. Use the Test single sign-on with “EloView” to verify the configuration. You can also download the SAML response to inspect the XML for the presence of the security group Object ID.

67. Log into EloView, then go to Accounts, Manage Users, Users tab. Verify user has been assigned the correct role.

Adding additional users to EloView
*If the user has an existing EloView account, you will need to set up an email alias.

68. Create a new user in Azure AD or Active Directory (if required).

Note for Hybrid Azure AD
Create the user account in Active Directory then wait for Azure AD Connect (ADSync) to synchronize the user account to Azure AD.

69. Sign into your Azure portal (https://portal.azure.com) with an account with a Global Administrator role or privilege to create enterprise applications.

70. In the search bar, type in Enterprise application, and then click the results Enterprise application.

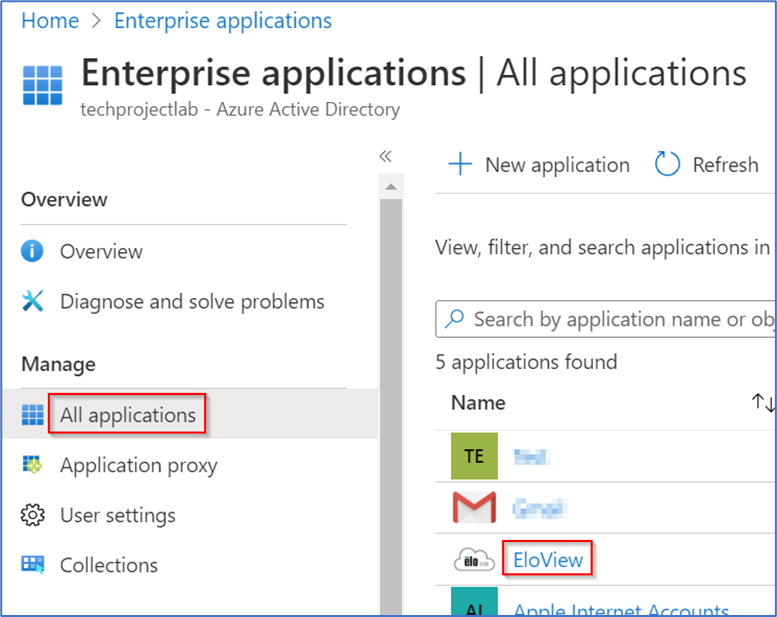

71. At the left navigation pane, click All Applications and then click on your EloView enterprise application.

72. At the left navigation pane, click Users and group. Click Add user/group, click None selected, choose users, click Select, and then Assign. After a few minutes, the recently added users will find the EloView enterprise application added to their Microsoft My App portal.
