¿Cómo accedo al menú OSD de fábrica en el monitor Elo 1302L?

Este artículo proporciona instrucciones sobre cómo acceder al menú OSD de fábrica en el monitor ET1302L

Cuando la unidad está encendida mientras se mantiene presionado el botón "Seleccionar", se hará accesible un menú de "Fábrica" en el OSD.

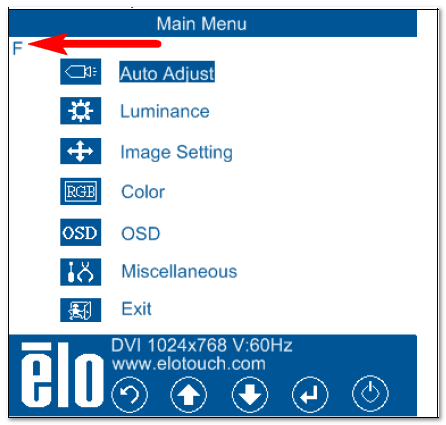

Utilice las teclas de flecha para navegar a la opción "F", luego presione el botón "Seleccionar" para ingresar al menú OSD de fábrica.

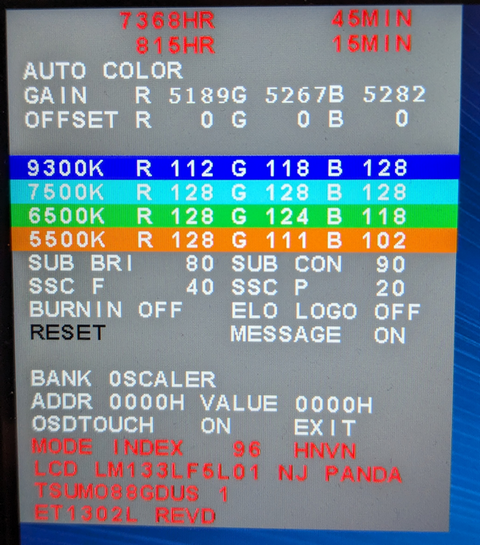

A continuación se muestra el OSD de fábrica del 1302L (Nota: la versión del firmware se muestra en la parte inferior del menú. En esta captura de pantalla, la versión del firmware es REVD)
