¿Dónde puedo encontrar un dibujo dimensional para el dispositivo E-Series 2?

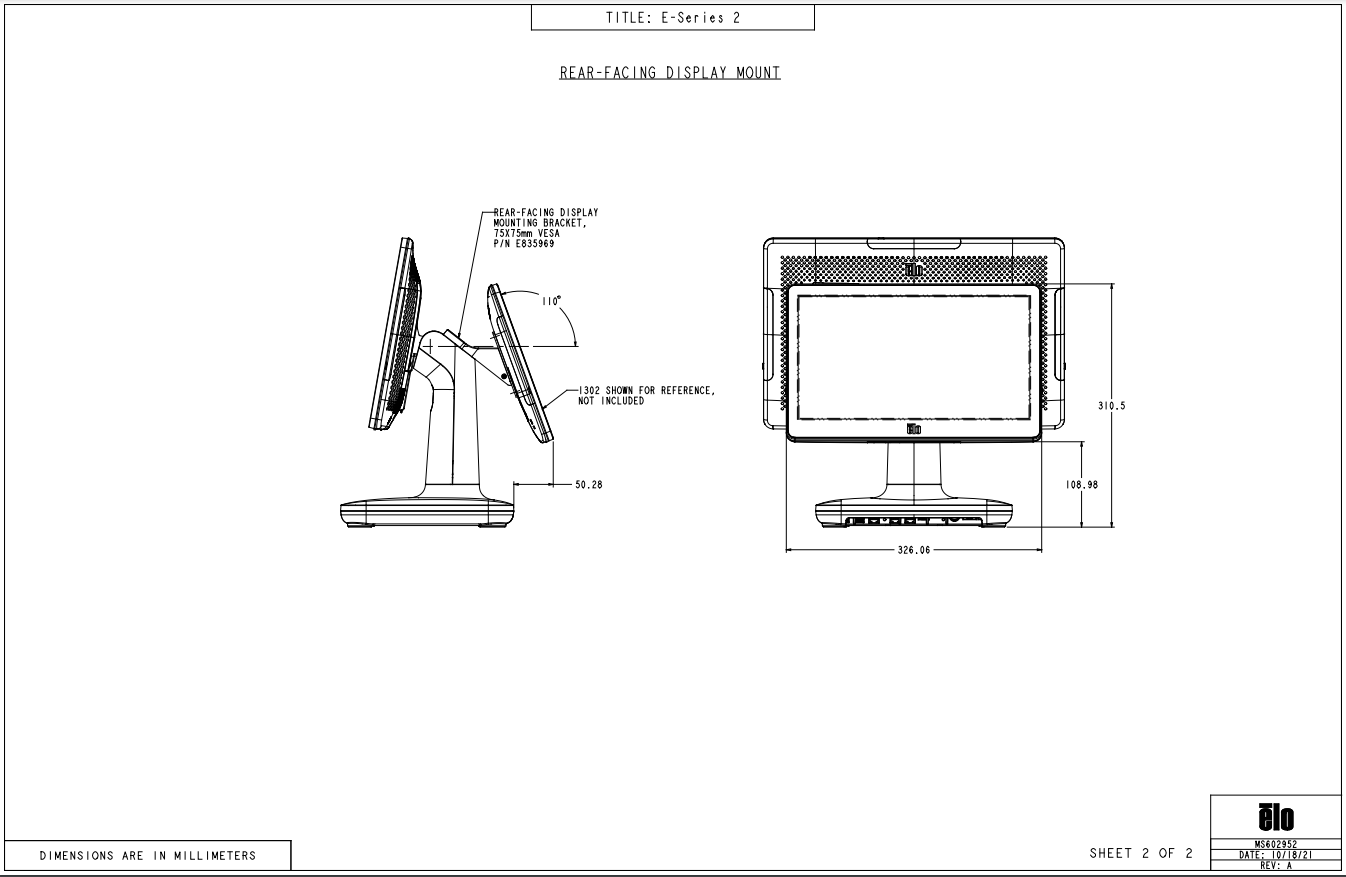

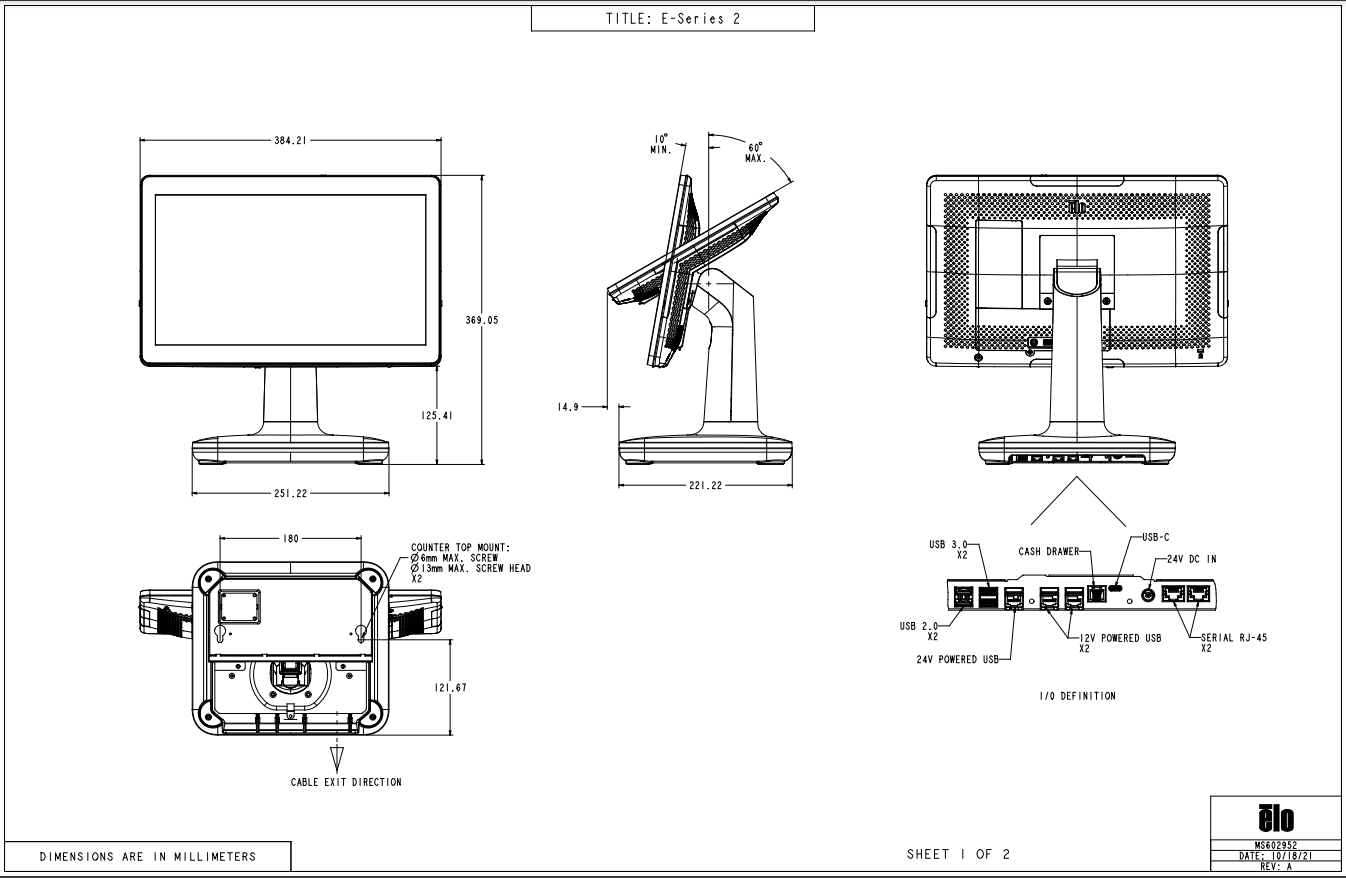

Este artículo proporciona el dibujo dimensional para el ordenador táctil AIO E-Series 2.

El dibujo también se puede descargar desde el sitio web de Elo
