¿Dónde puedo encontrar las dimensiones o el dibujo del soporte X-Series, P/N: E154446?

Este artículo proporciona el dibujo dimensional del soporte X-Series, P/N: E154446

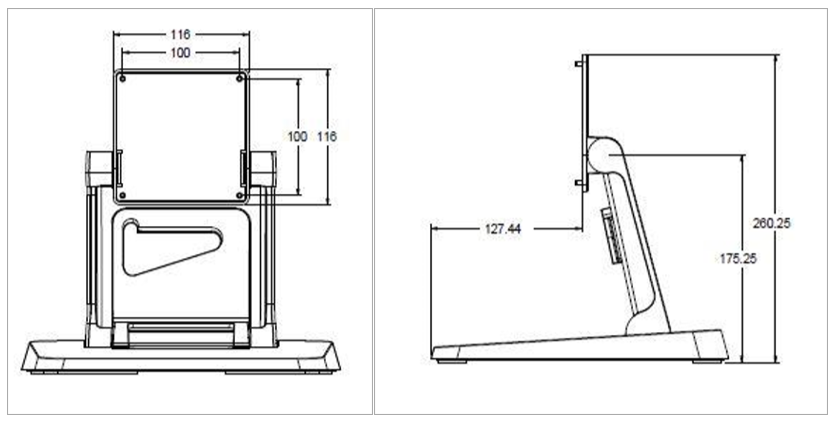

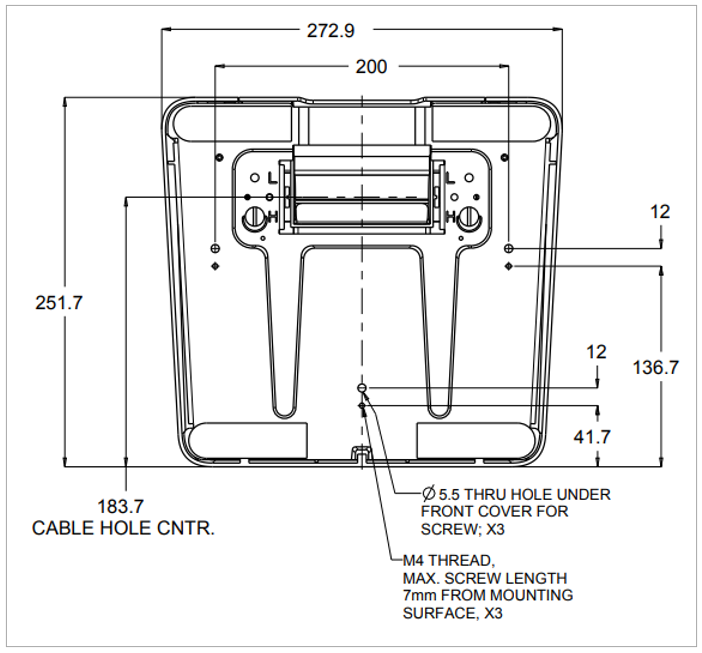

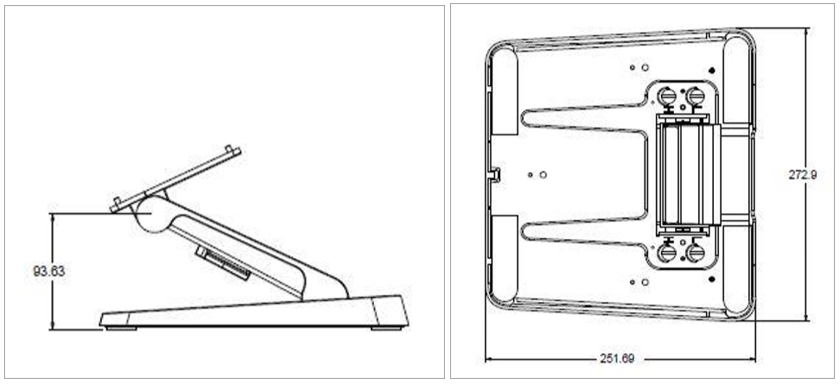

Vea a continuación el dibujo dimensional del soporte X-Series, Número de Parte: E154446
