Bienvenue dans le support Elo

Pilotes, informations sur les produits, réponses techniques et plus encore.

Où puis-je trouver les dimensions ou le dessin du support X-Series, P/N : E154446 ?

Cet article fournit le dessin dimensionnel du support X-Series, P/N : E154446

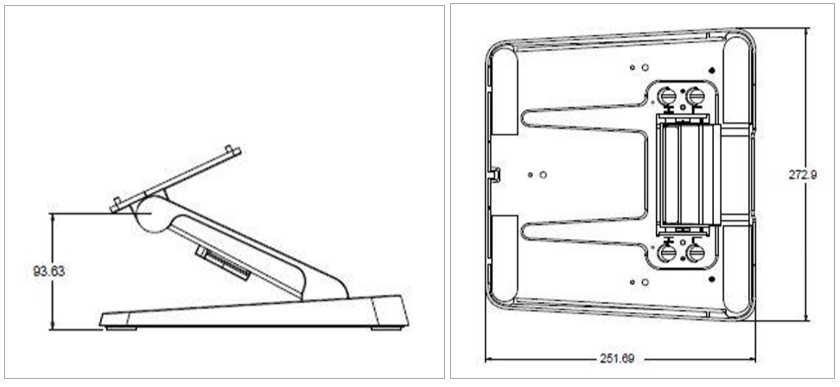

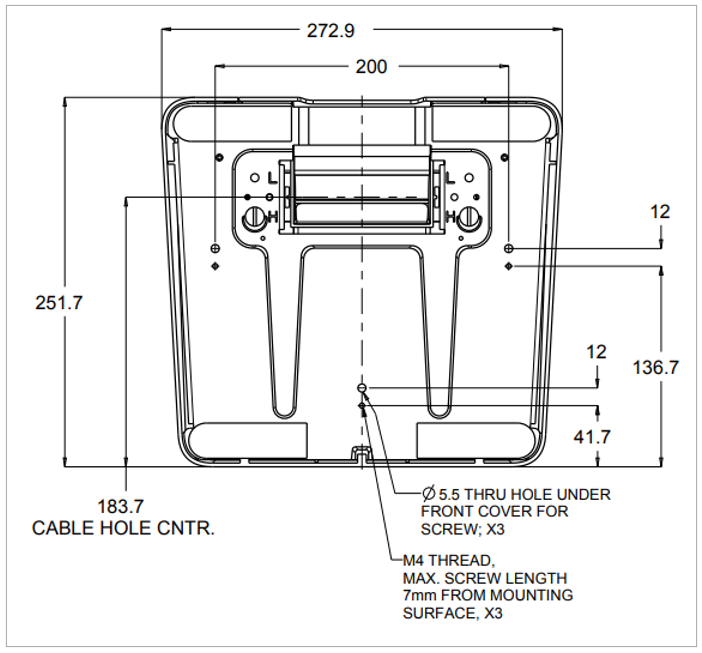

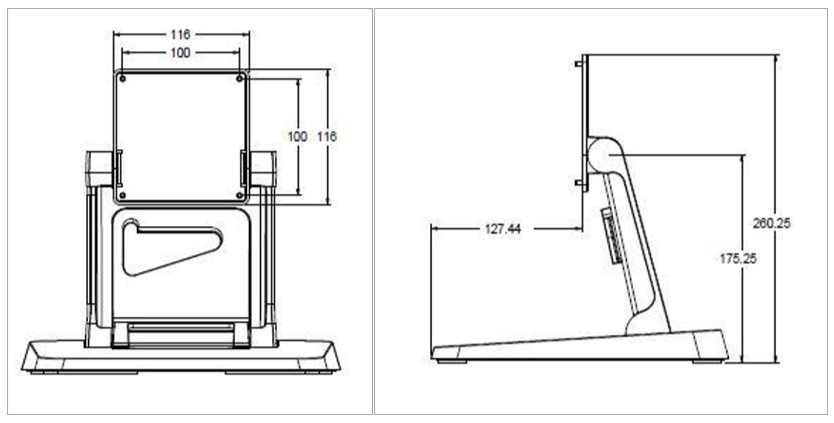

Voir ci-dessous le dessin dimensionnel du support X-Series, Numéro de pièce : E154446
