Où puis-je trouver des dessins dimensionnels pour le moniteur 2799L Outdoor Open Frame ?

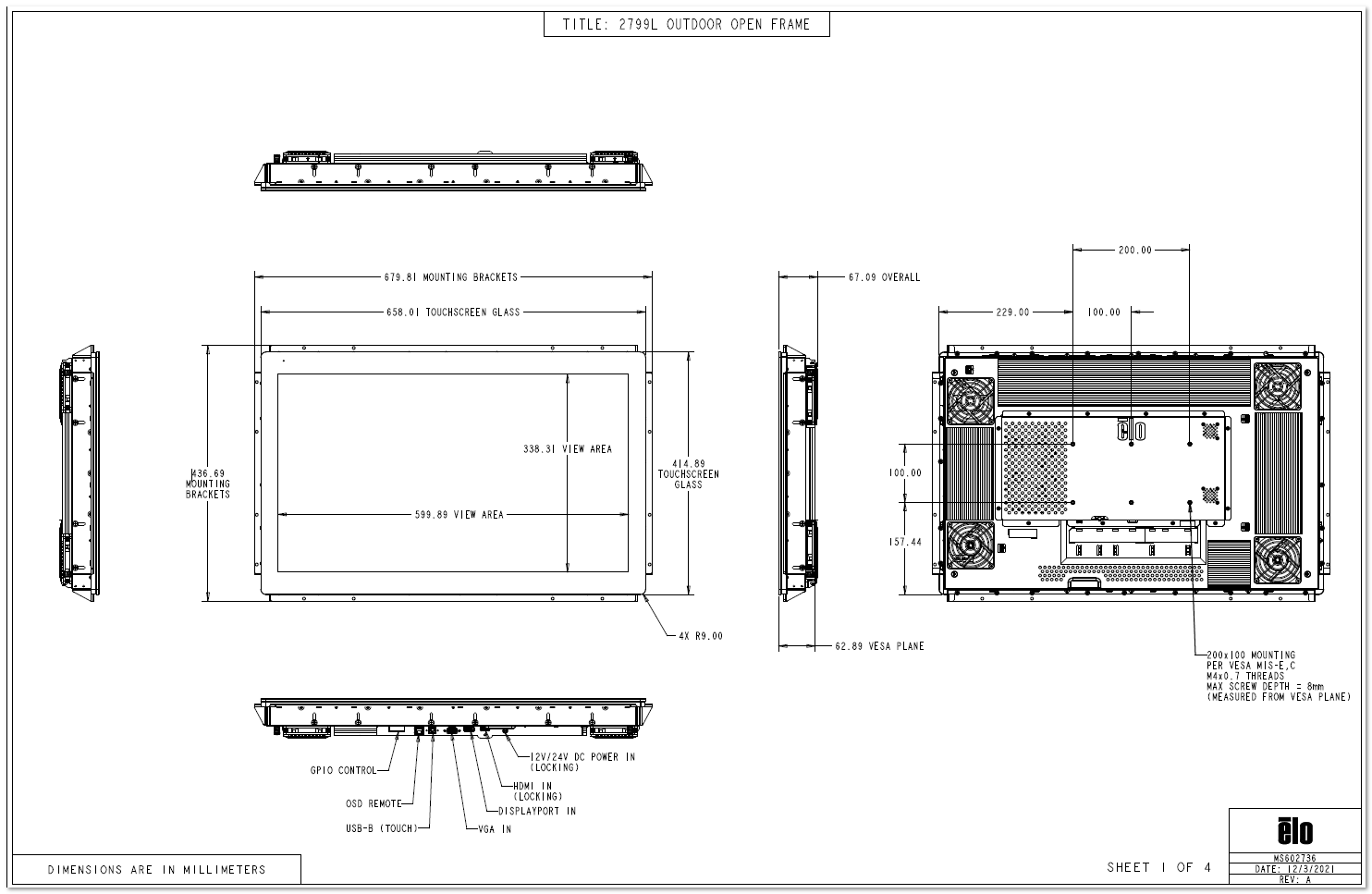

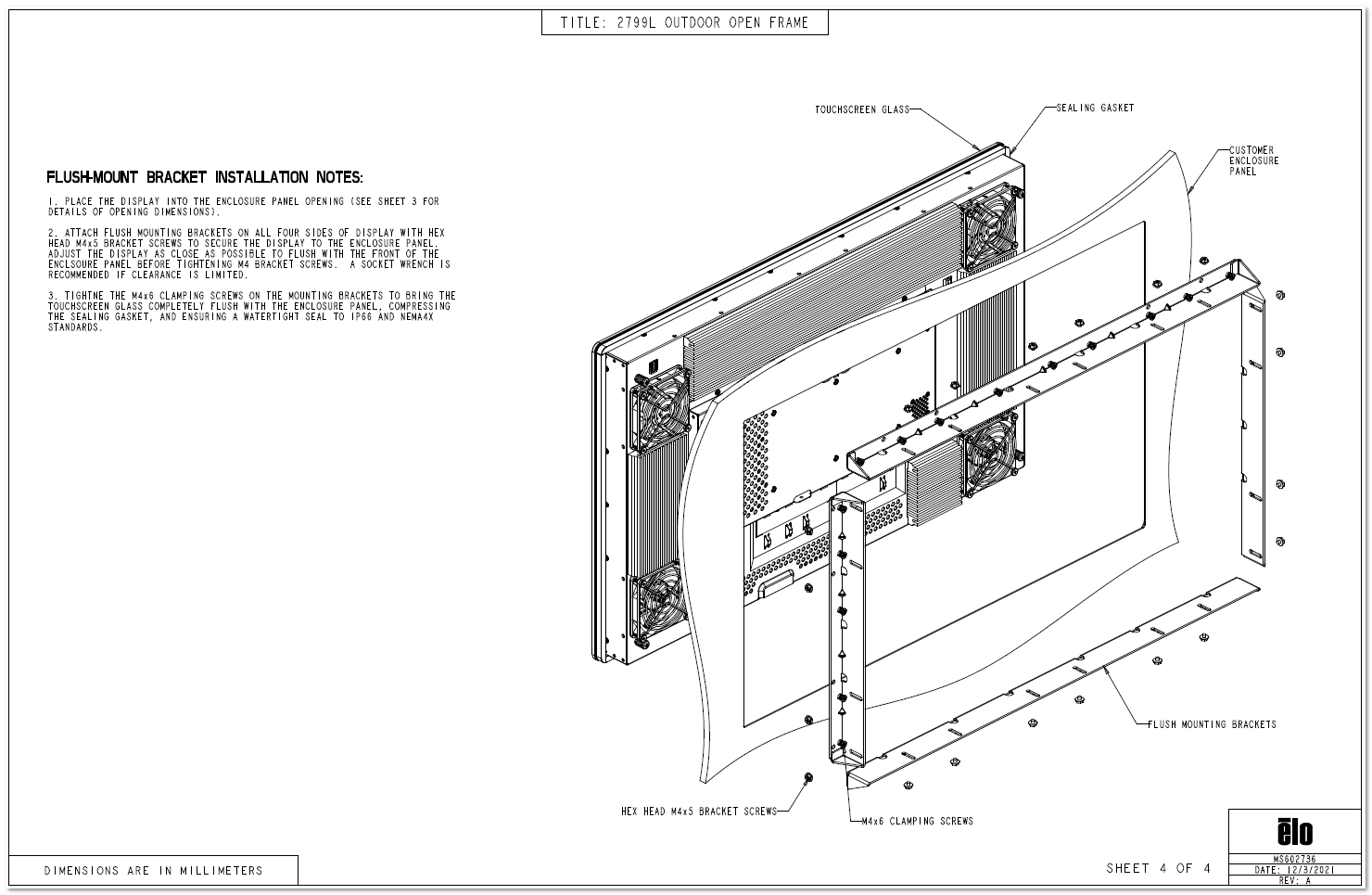

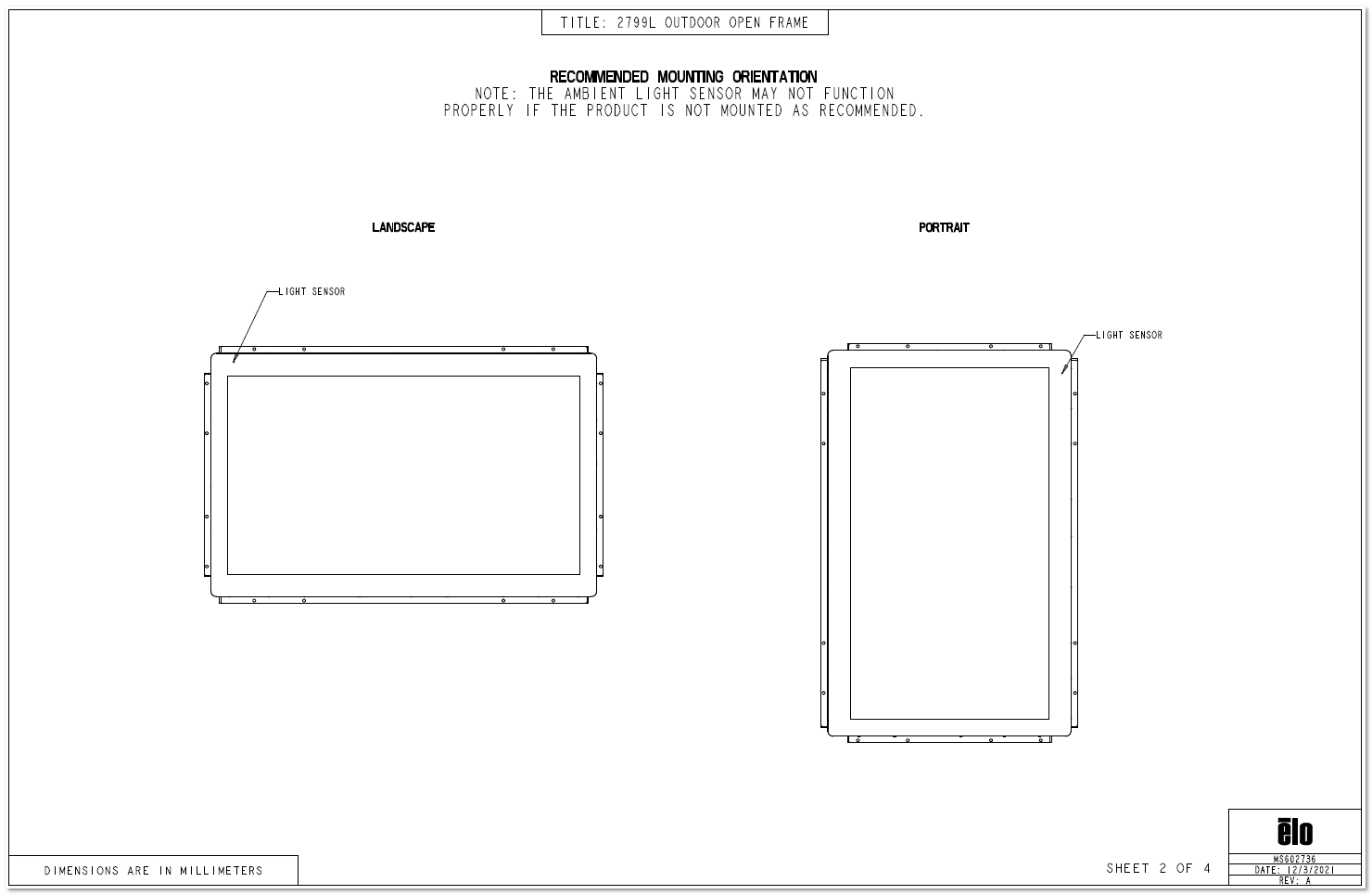

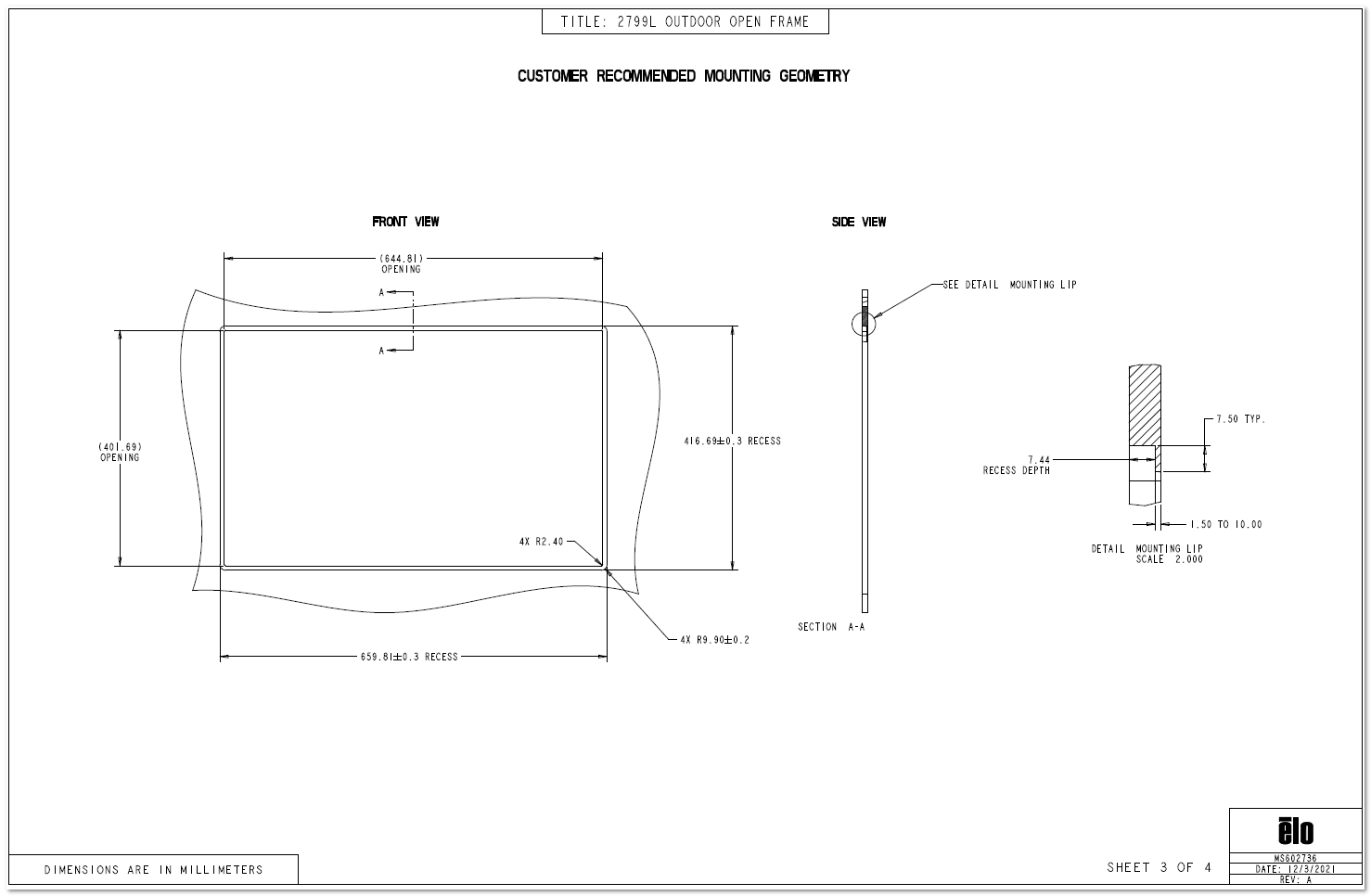

Cet article fournit les dessins dimensionnels pour le moniteur 2799L Outdoor Open Frame

Dessins :
