Bienvenue dans le support Elo

Pilotes, informations sur les produits, réponses techniques et plus encore.

Où puis-je trouver des dessins dimensionnels pour le moniteur 1099L Outdoor Open Frame ?

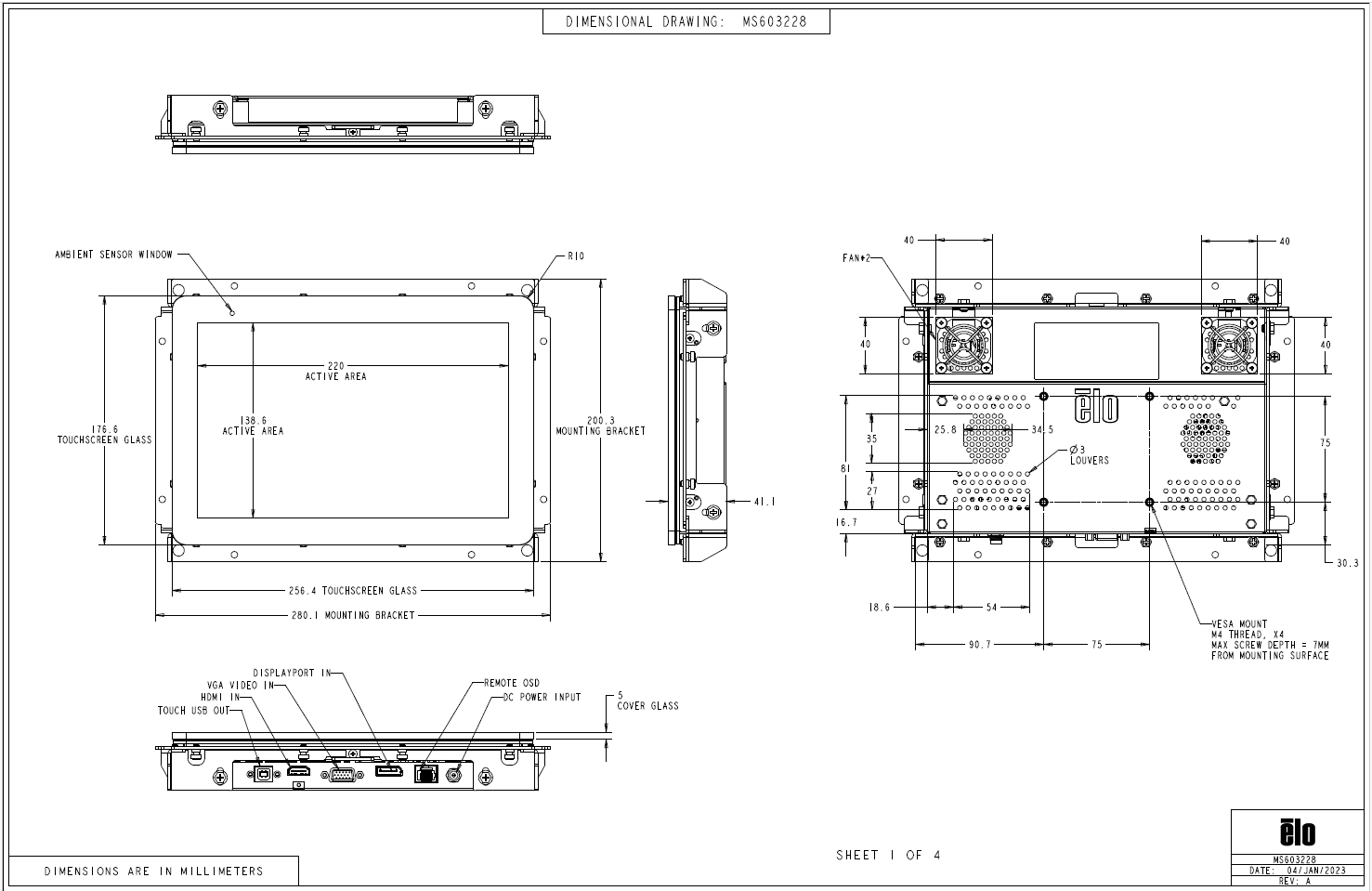

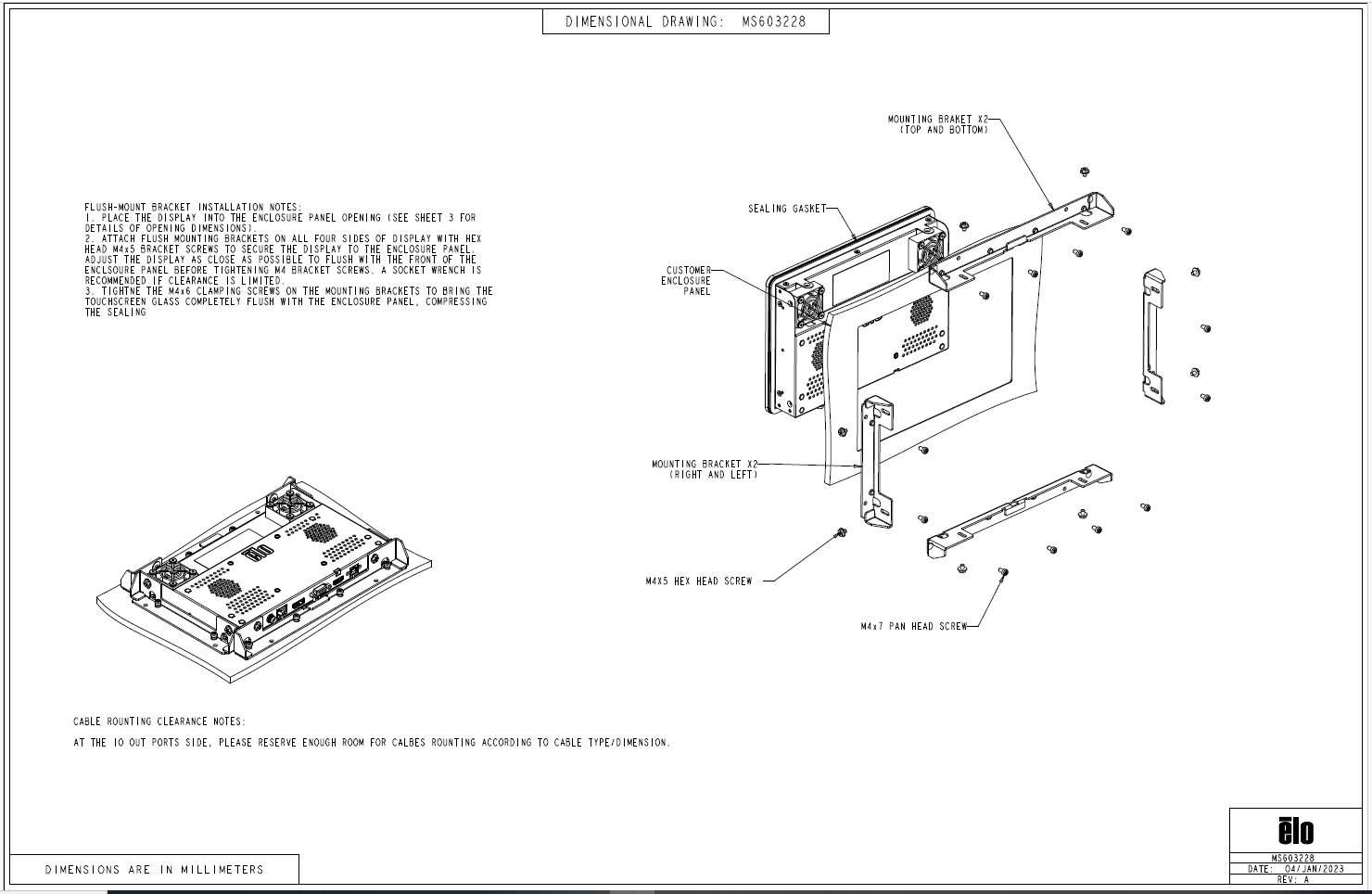

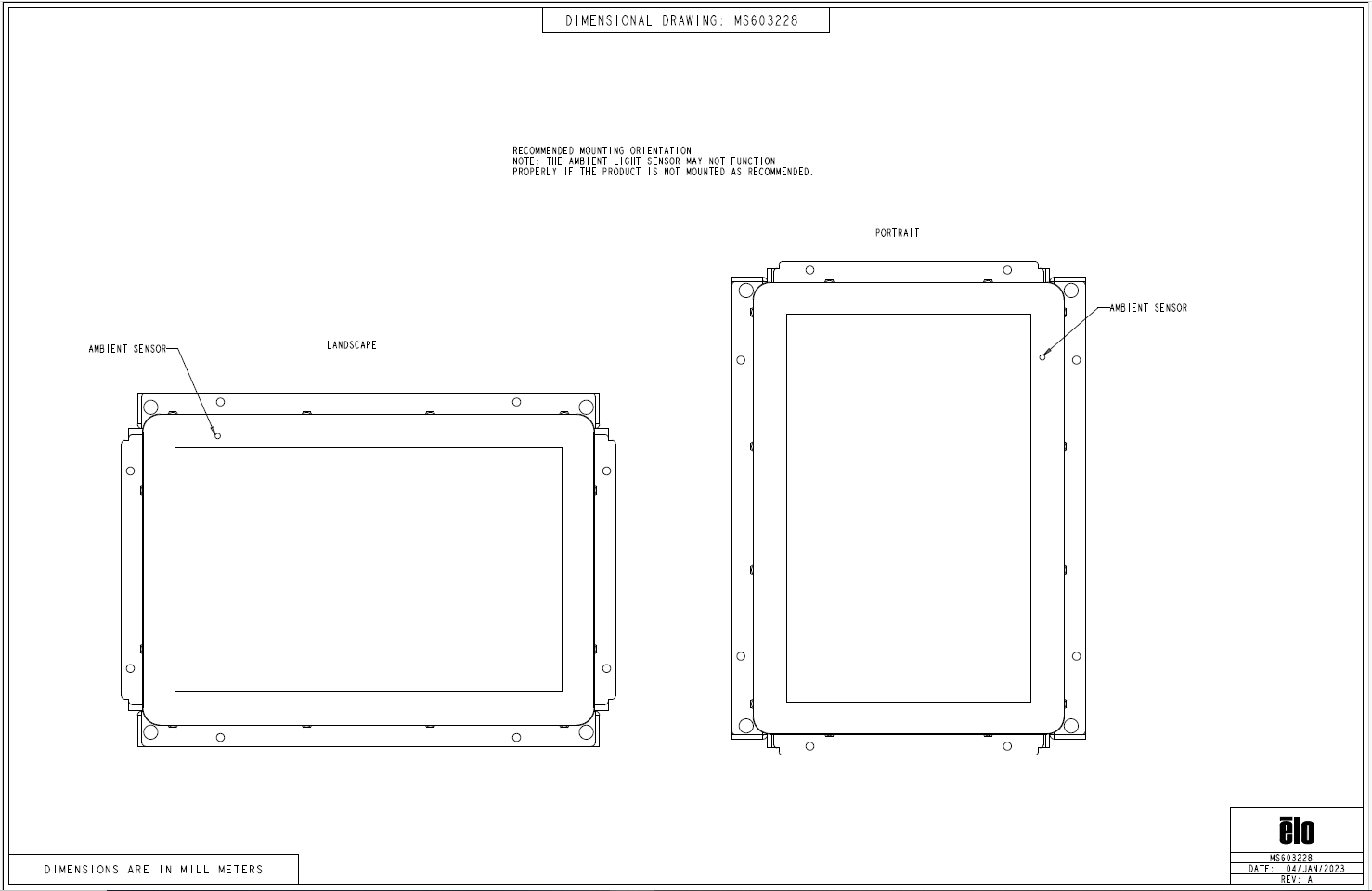

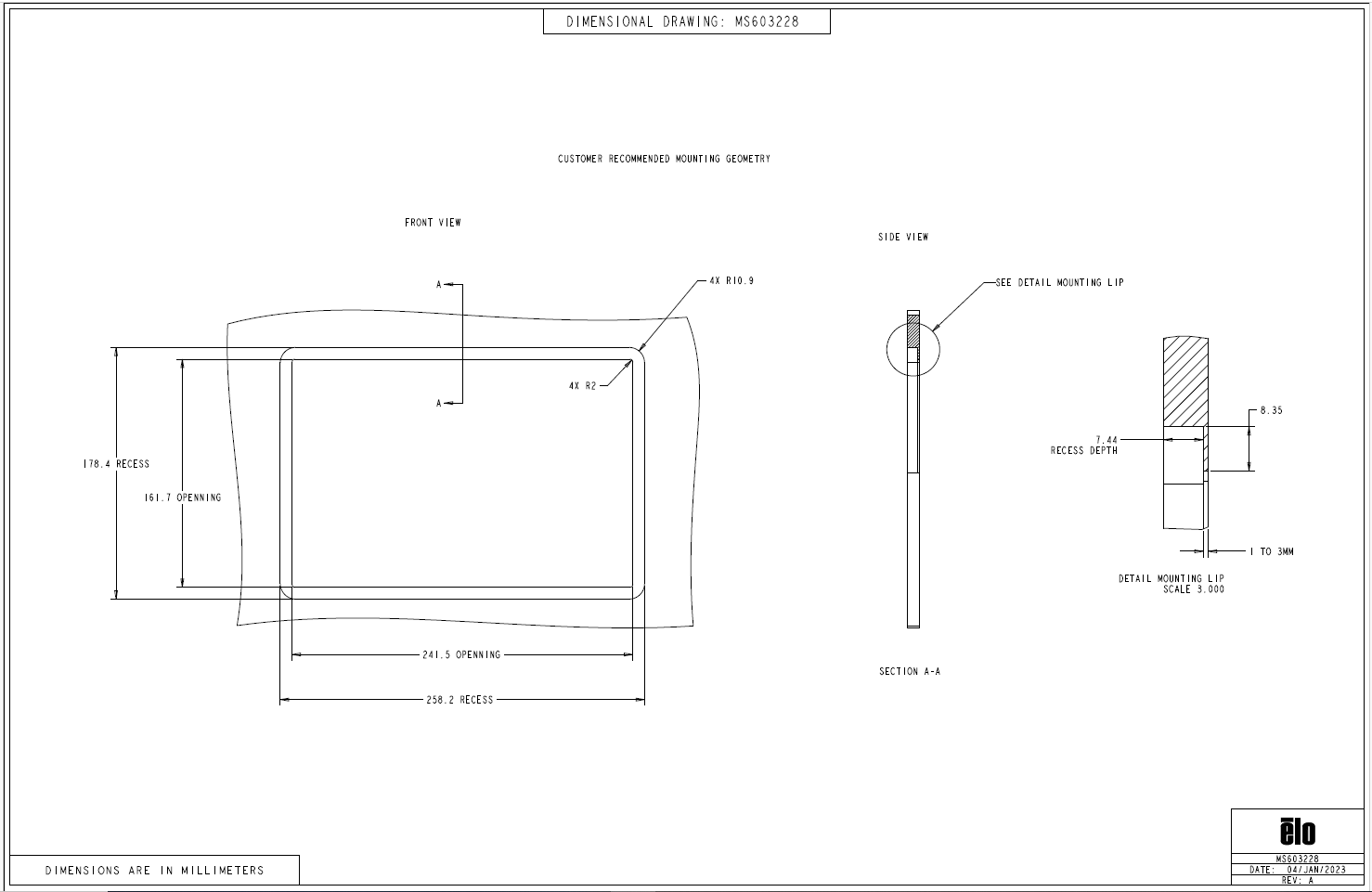

Cet article fournit les dessins dimensionnels du moniteur tactile ET1099L Outdoor Open Frame

Trouvez également les dessins en pièce jointe à cet article.
