Comment monter le moniteur tactile 1099L Outdoor Open Frame ?

Cet article décrit les différentes méthodes de montage du moniteur tactile 1099L Outdoor Open Frame

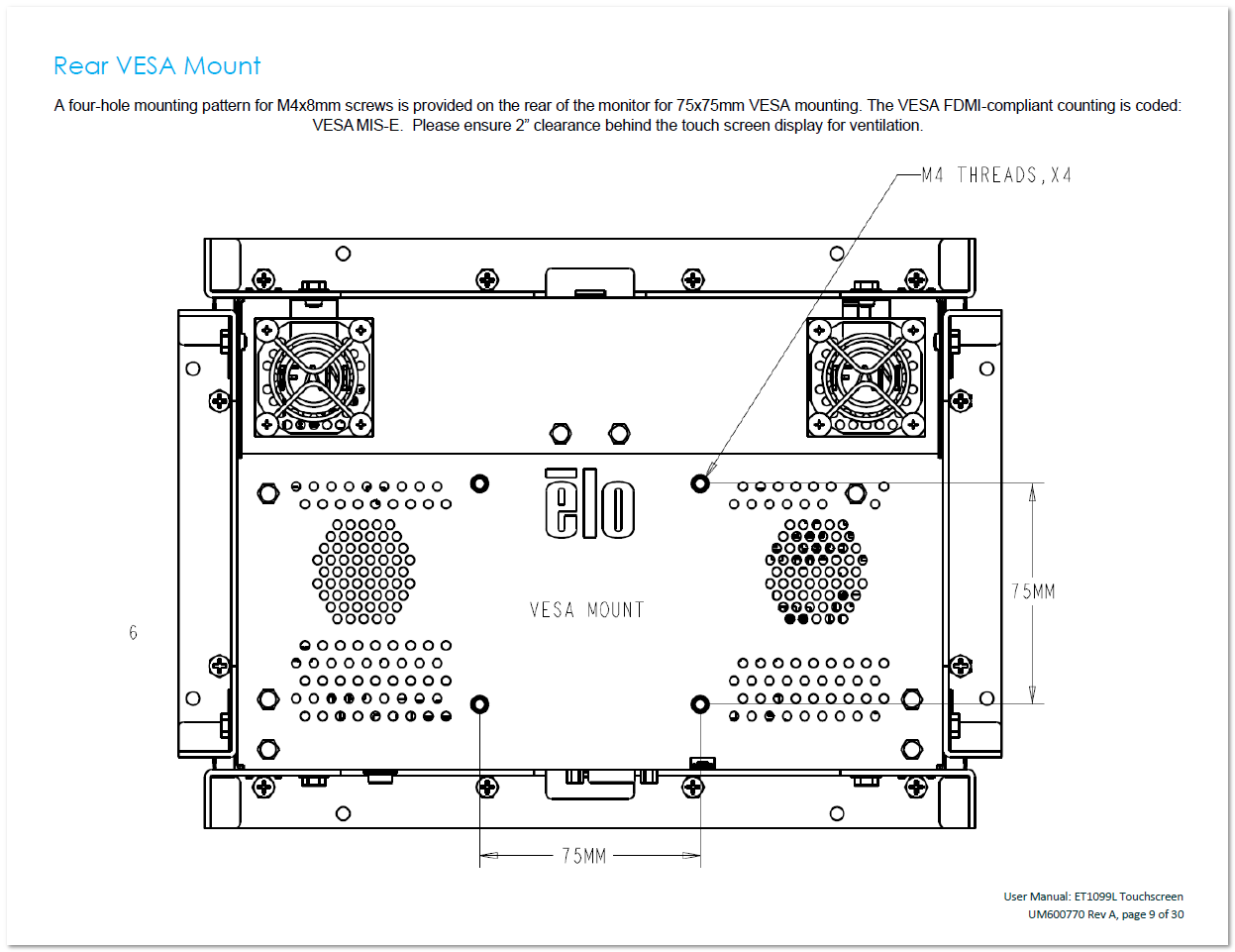

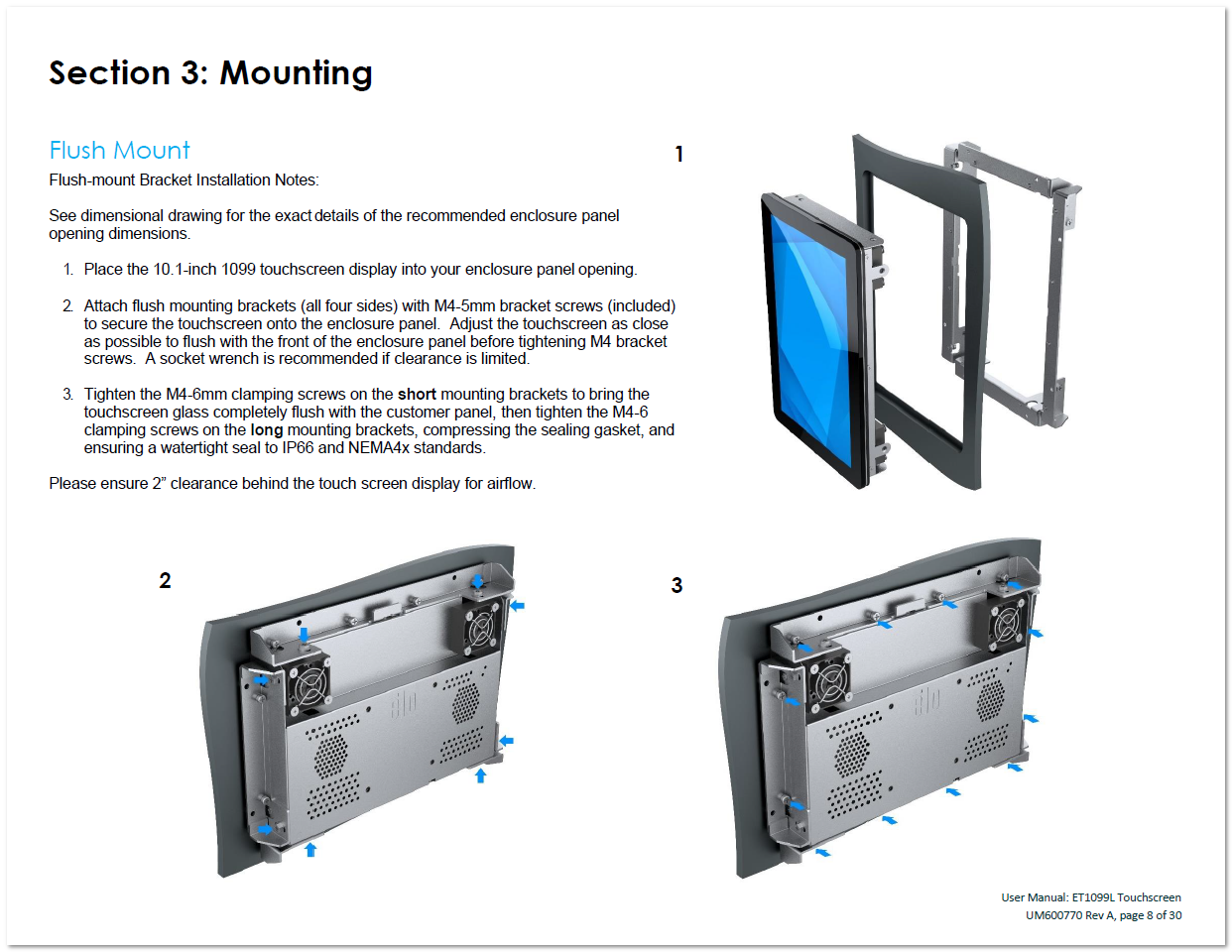

D'après les pages 8-9 du Manuel de l'utilisateur:

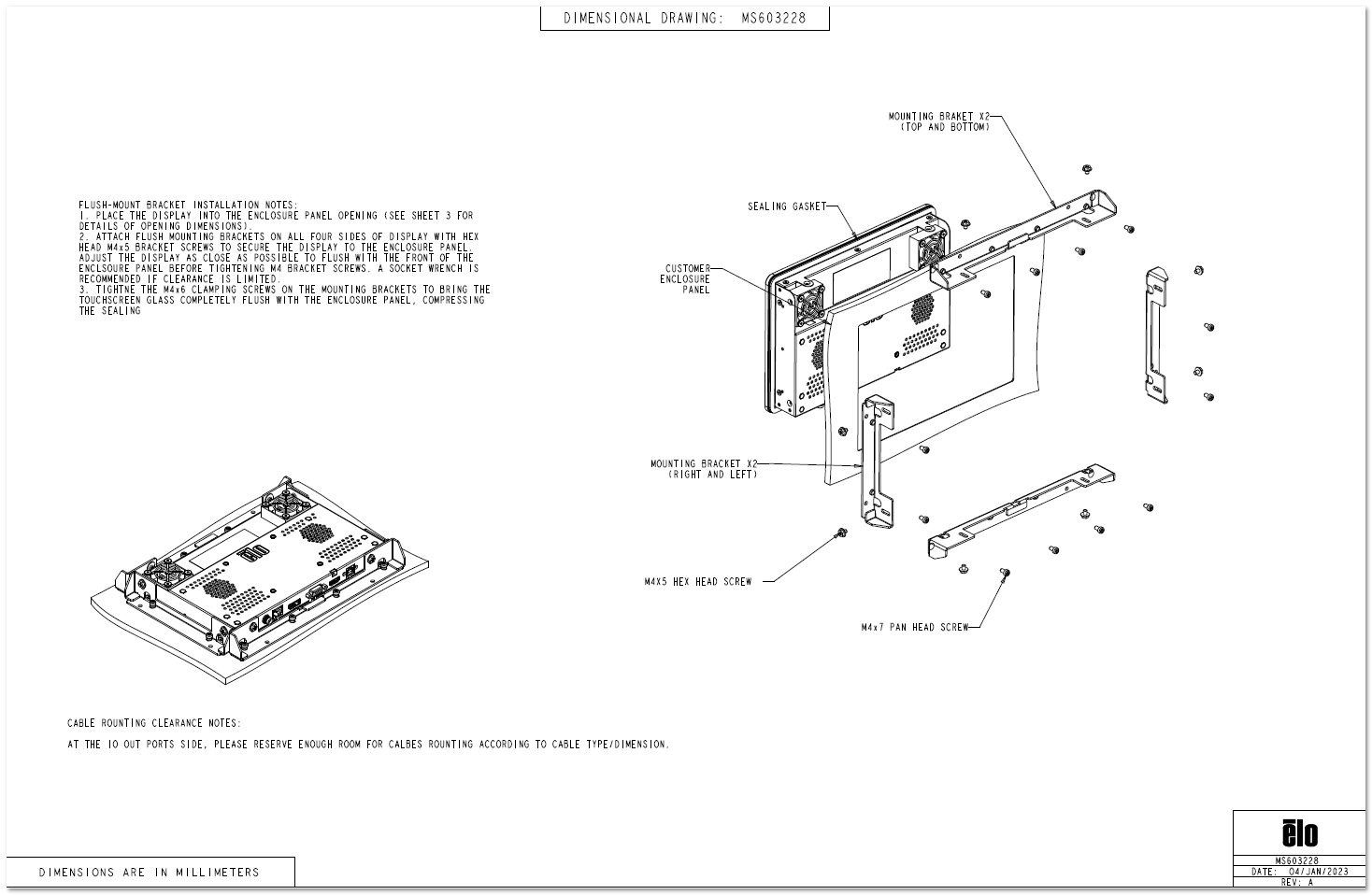

D'après la page 4 du Dessin dimensionnel:
