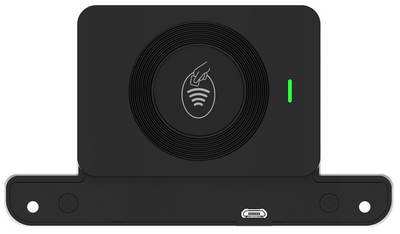

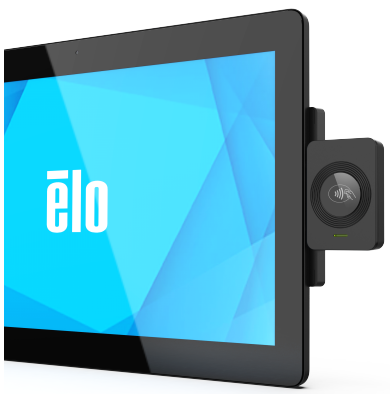

Questo articolo fornisce specifiche per P/N: E673037, lettore RFID Elo Edge Connect
Di seguito sono riportate le specifiche per P/N: E673037, lettore RFID Elo Edge Connect 5127CK.
| Modello | E673037 | |
| Colore | Nero | |
| Compatibilità | I-Series per Android (2.0, 3.0, 4.0) I-Series per Windows (2.0) EloPOS Monitor touchscreen - 1002L, 1302L, 1502L, 1902L, 2002L, 2202L, 2402L, 2702L, 1903LM, 2203LM, 2403LM, 2703LM Segnaletica touchscreen - 3202L, 4202L, 4602L, 5502L, 3203L, 4303L, 5503L, 5053L, 5553L, 6553L |
|
| Dimensioni del prodotto | 119,6mm x 68,5mm x 29,1mm (4,71” x 2,70” x 1,15”) |
|
| Alimentazione | 5VDC ± 5% | |
| Interfaccia RF | ISO/IEC14443 | Tipo A&B fino a 848kbps, MIFARE Classic, MIFARE, DESFire, HID Seos | |
| SO/IEC15693 | ||
| HID iCLASS | modalità ISO/IEC15693 | ||
| FeliCa | Solo CSN | ||
| HID Prox | ||
| Indala Prox | ||
| BLE | Per applicazioni di accesso mobile HID | ||
| Interfaccia Host | USB2.0 | |
| Modalità Interfaccia | CCID, Keyboard Wedge | |
| Supporto Beeper | Sì | |
| Indicatori di stato | Sì | |
| Frequenza | 124KHz, 13,56MHz, 2,44GHz | |
| Schede & Protocolli | CCID, Keyboard Wedge | |
| Alta Frequenza | iCLASS, iCLASS SE/SR, iCLASS Seos MIFARE Classic 1K / 4K, Ultra Light, Ultra Light C, Plus, MIFARE DESFire 0.6, MIFARE DESFire EV1/EV2, T=CL, ISO 14443A, ISO14443B CSN, FeliCa, SmartMX con un tasso di trasmissione fino a 848 kbps (a seconda della scheda1), ISO 15693 con un tasso di trasmissione fino a 26 kbps (a seconda della scheda), ID studente in Apple Wallet |
Le seguenti credenziali possono essere gestite autonomamente: iCLASS, iCLASS SE/SR, iCLASS Seos, MIFARE Classic 1K / 4K, Ultra Light, Ultra Light C, Plus (Livello di Sicurezza 1), MIFARE DESFire 0.6, MIFARE DESFire EV1/EV2 (MAC / DES/3DES / 3K3DES / AES), CEPAS (CAN), FeliCa (Idm), PIV, ISO14443B (CSN), ID studente in Apple Wallet |
| Schede & Protocolli Bassa Frequenza |
HID Prox, Indala Prox, EM Prox (Solo modalità standard), AWID Prox | |
| Sistemi Operativi Supportati | Windows 7/10, Ubuntu 18.04, Mac OS X, Android 7.x o superiore | |
| Peso | Senza imballaggio: 0.075 kg (0.165 lbs) Imballato: 0.185 kg (0.408 lbs) |
|
| Dimensioni di Spedizione | 175mm x 114mm x 69mm (6,89” x 4,49” x 2,72”) |
|
| Temperatura | Operativo: 10° C a 40° C (50° F a 104° F) Stoccaggio: 0° C a 50° C (32° F a 122° F) |
|
| Umidità (non condensata) | Operativo: 20% - 80% Stoccaggio: 10% - 90% |
|
| Garanzia | 2 anni | |
| Contenuto del Kit | KIT RFID 2 viti di montaggio 2 coperture per vite Mylar QIG |
|
| Numero di Parte | E673037 | |
| Regione | Globale | |
| Descrizione | KIT, RFID, LF/HF, USB, EDGE CONNECT |
