Qual è il pin-out della porta seriale RJ-50 sul dispositivo EloPOS Pack?

Questo articolo descrive la definizione dei pin e la porta RJ-50 Comport sul dispositivo EloPOS Pack

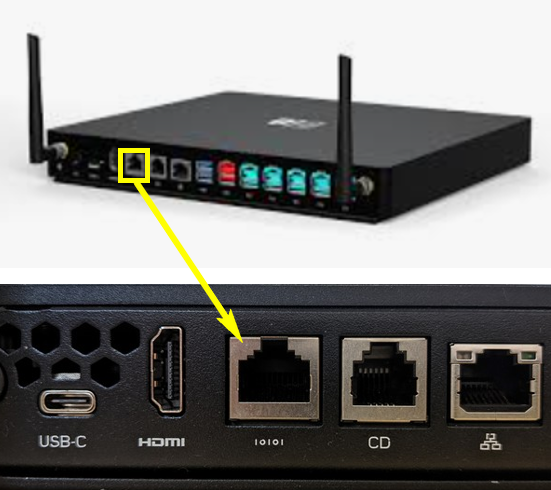

Le foto sottostanti indicano la posizione della porta RJ-50 Comport sul dispositivo EloPOS Pack.

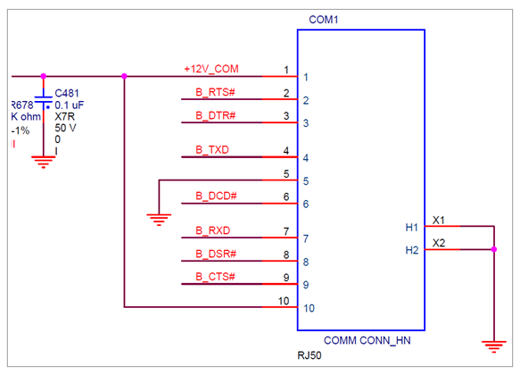

Definizione dei pin della porta RJ-50 e linee di segnale

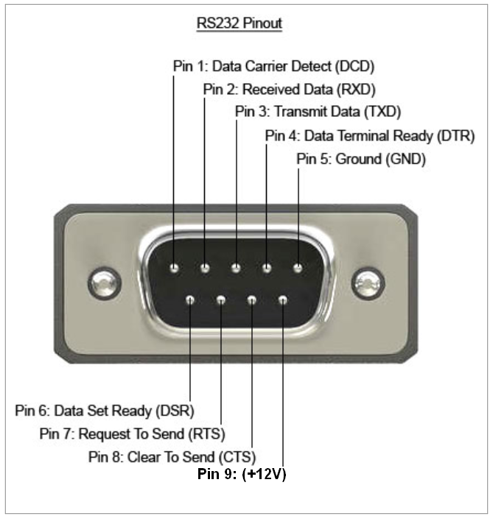

Il dispositivo EloPOS Pack viene fornito con un cavo RJ-50 a DB-9. Di seguito viene mostrato il pin-out del connettore DB-9.
