Quali sono le differenze tra il cavo EloPOS DB9 a RJ45 e il cavo X-Series DB9 a RJ45?

Questo articolo contiene informazioni riguardo alle differenze tra il cavo EloPOS DB9 a RJ45 e il cavo X-Series DB9 a RJ45

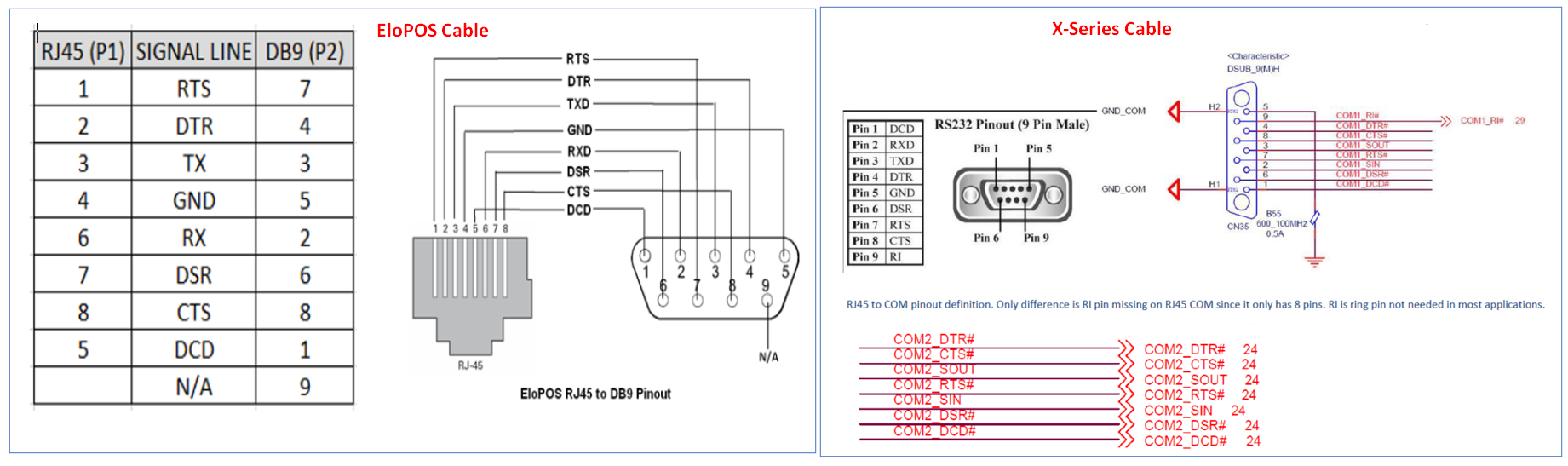

Di seguito sono mostrate le differenze nel pinout tra il cavo EloPOS DB9 a RJ45 e il cavo X-Series DB9 a RJ45. Questi due cavi NON sono intercambiabili.

Vedi le specifiche complete di questi cavi negli articoli qui sotto:
