Dove posso trovare le dimensioni o il disegno del supporto X-Series, P/N: E154446?

Questo articolo fornisce il disegno dimensionale del supporto X-Series, P/N: E154446

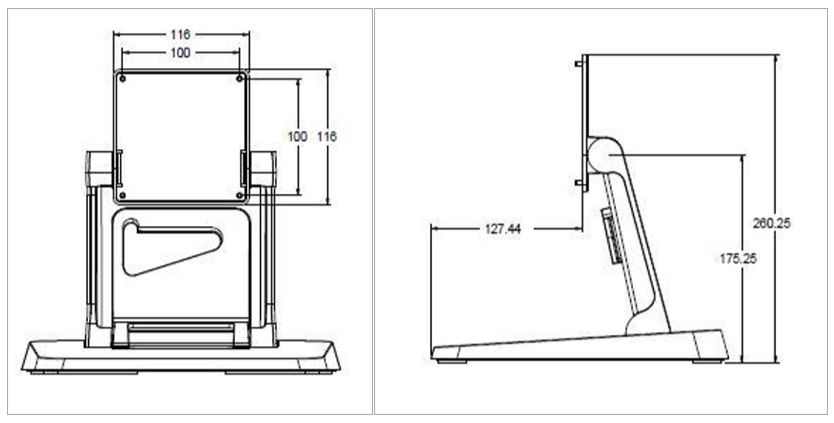

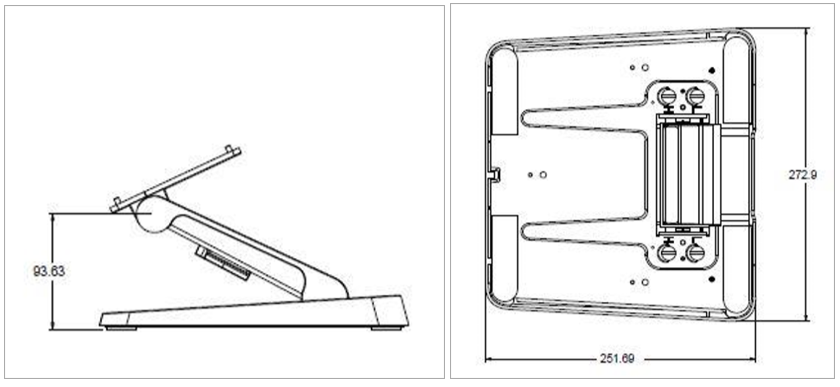

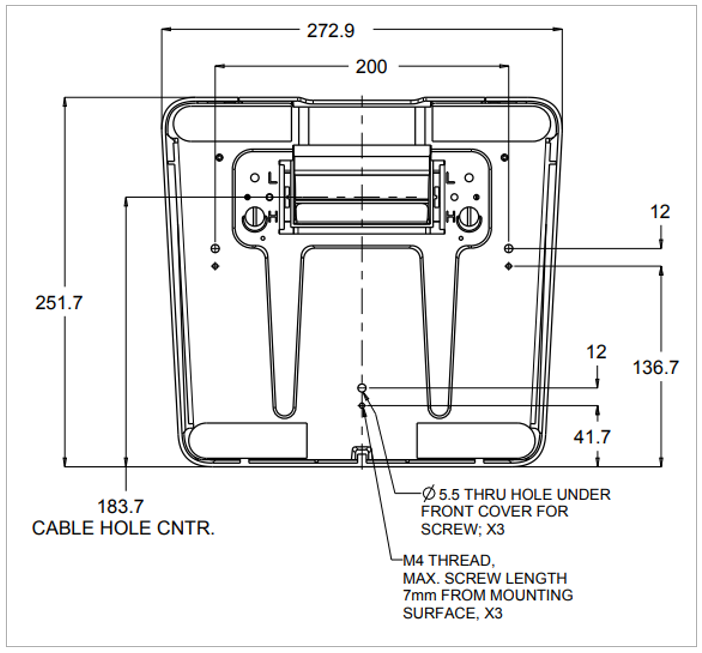

Vedi di seguito per il disegno dimensionale del supporto X-Series, Numero di parte: E154446
