Benvenuto nel Supporto Elo

Driver, informazioni sui prodotti, risposte tecniche e altro ancora.

Dove posso trovare i disegni dimensionali per il monitor 2799L Outdoor Open Frame?

Questo articolo fornisce i disegni dimensionali per il monitor 2799L Outdoor Open Frame

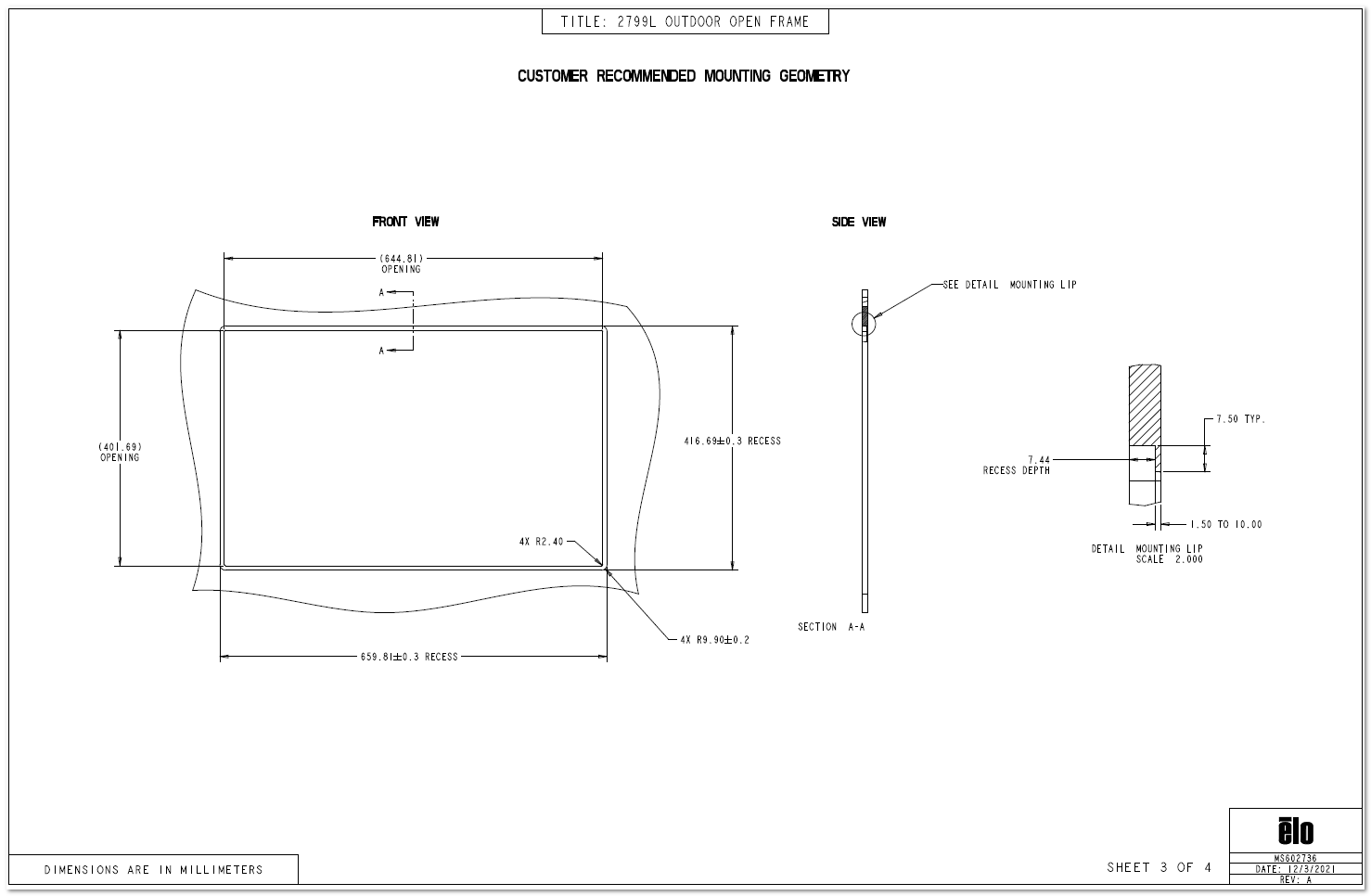

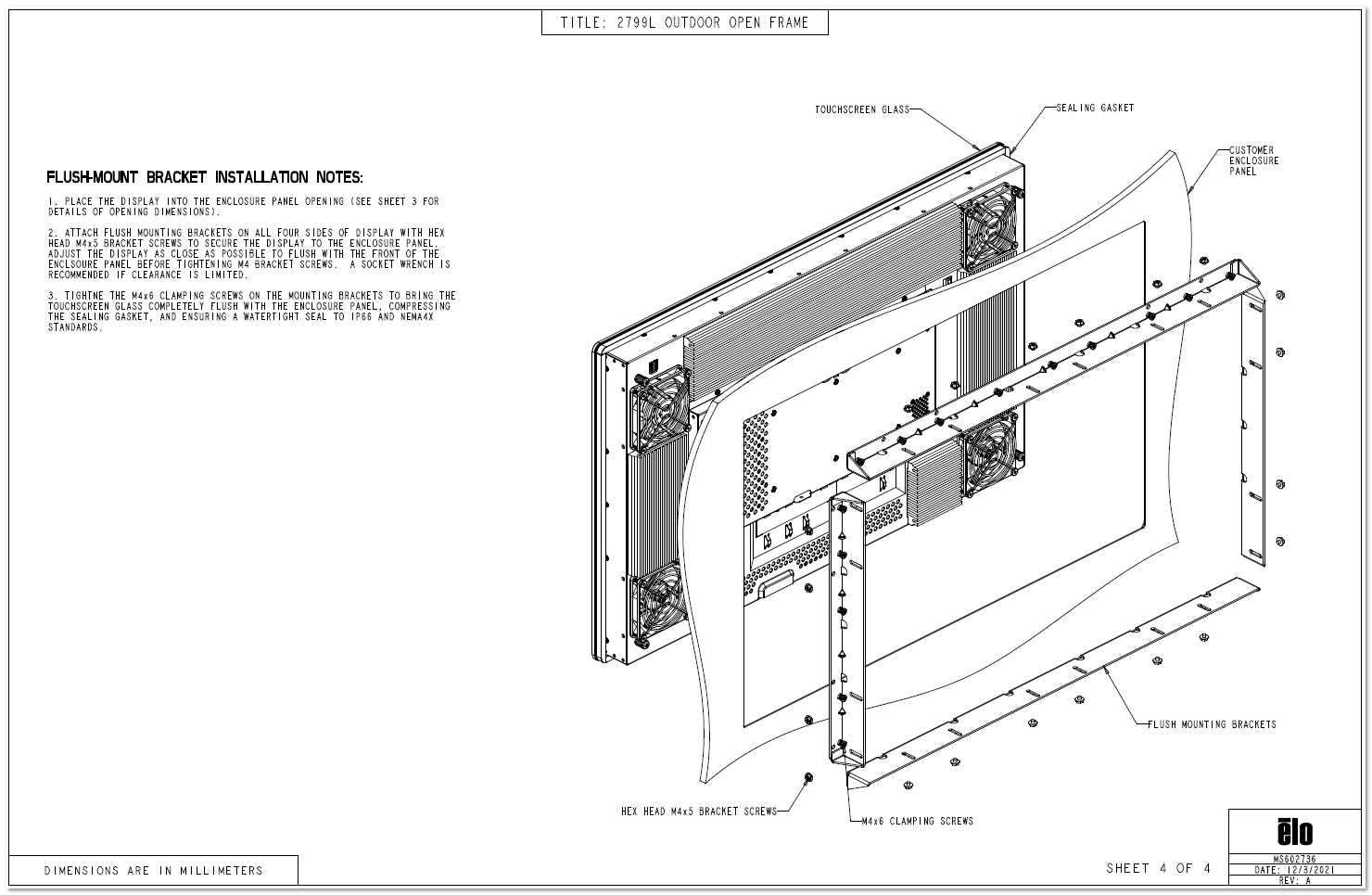

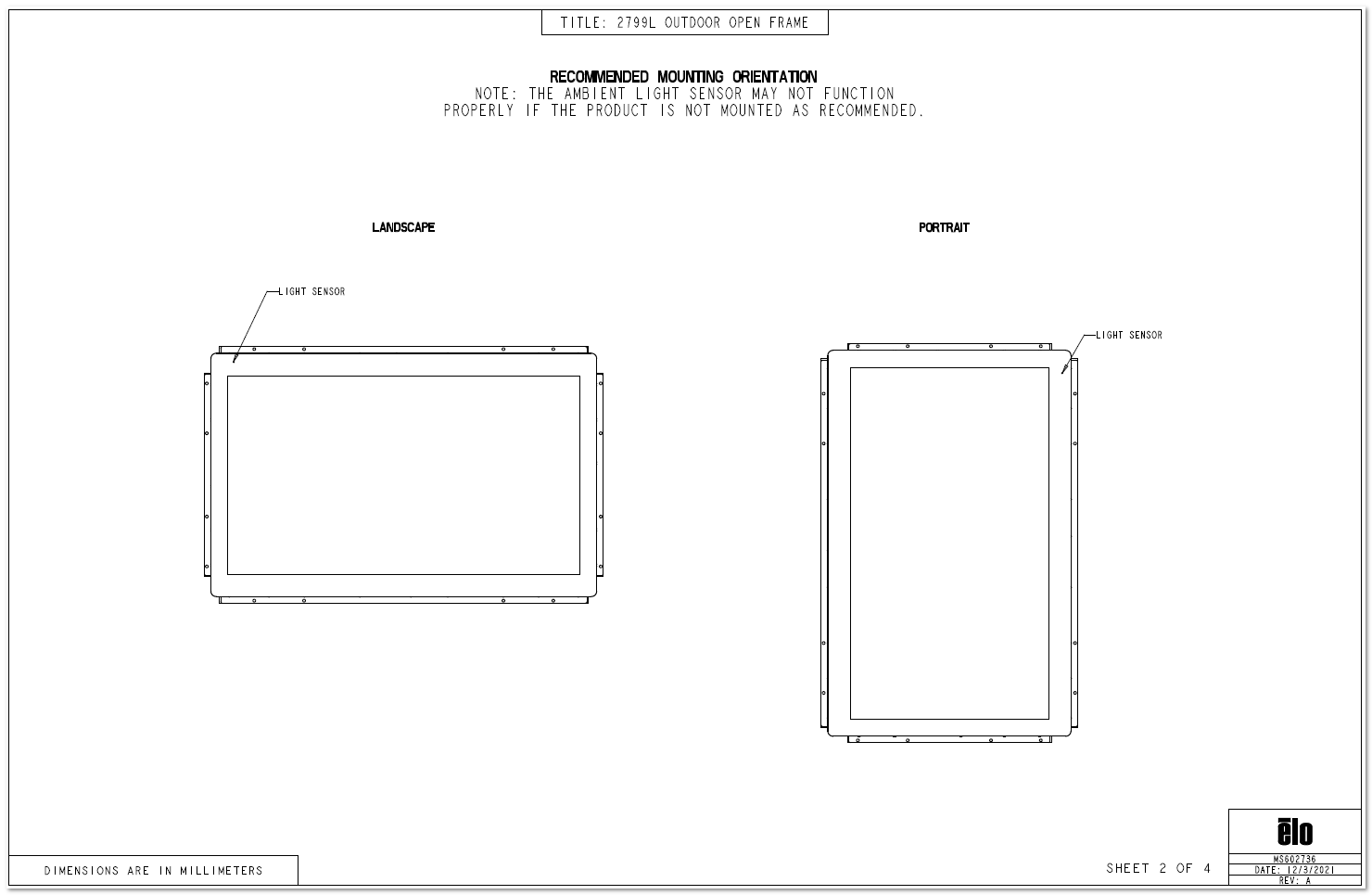

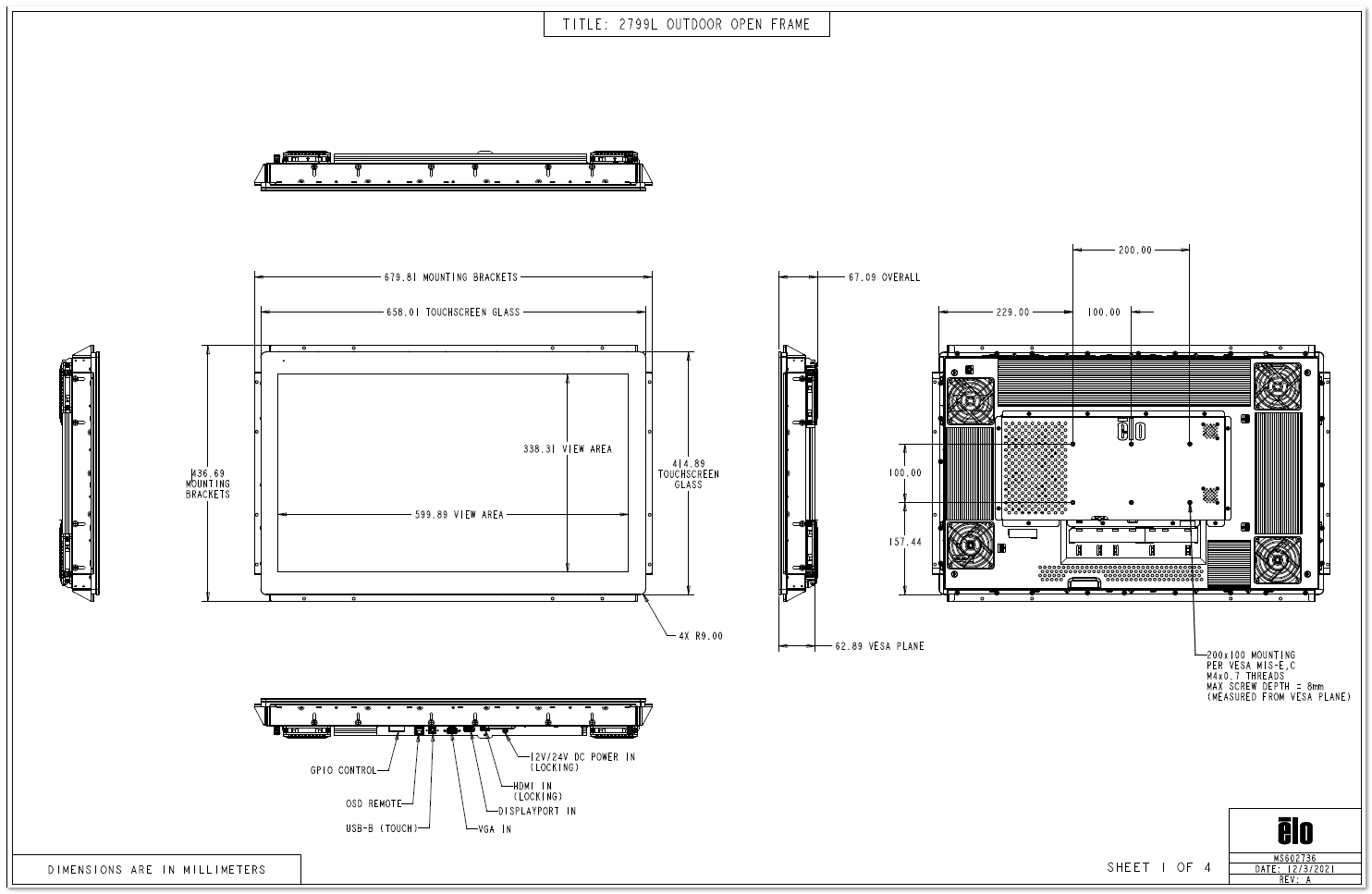

Disegni:





Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
