Benvenuto nel Supporto Elo

Driver, informazioni sui prodotti, risposte tecniche e altro ancora.

Dove posso trovare i disegni dimensionali per il monitor 1099L Outdoor Open Frame?

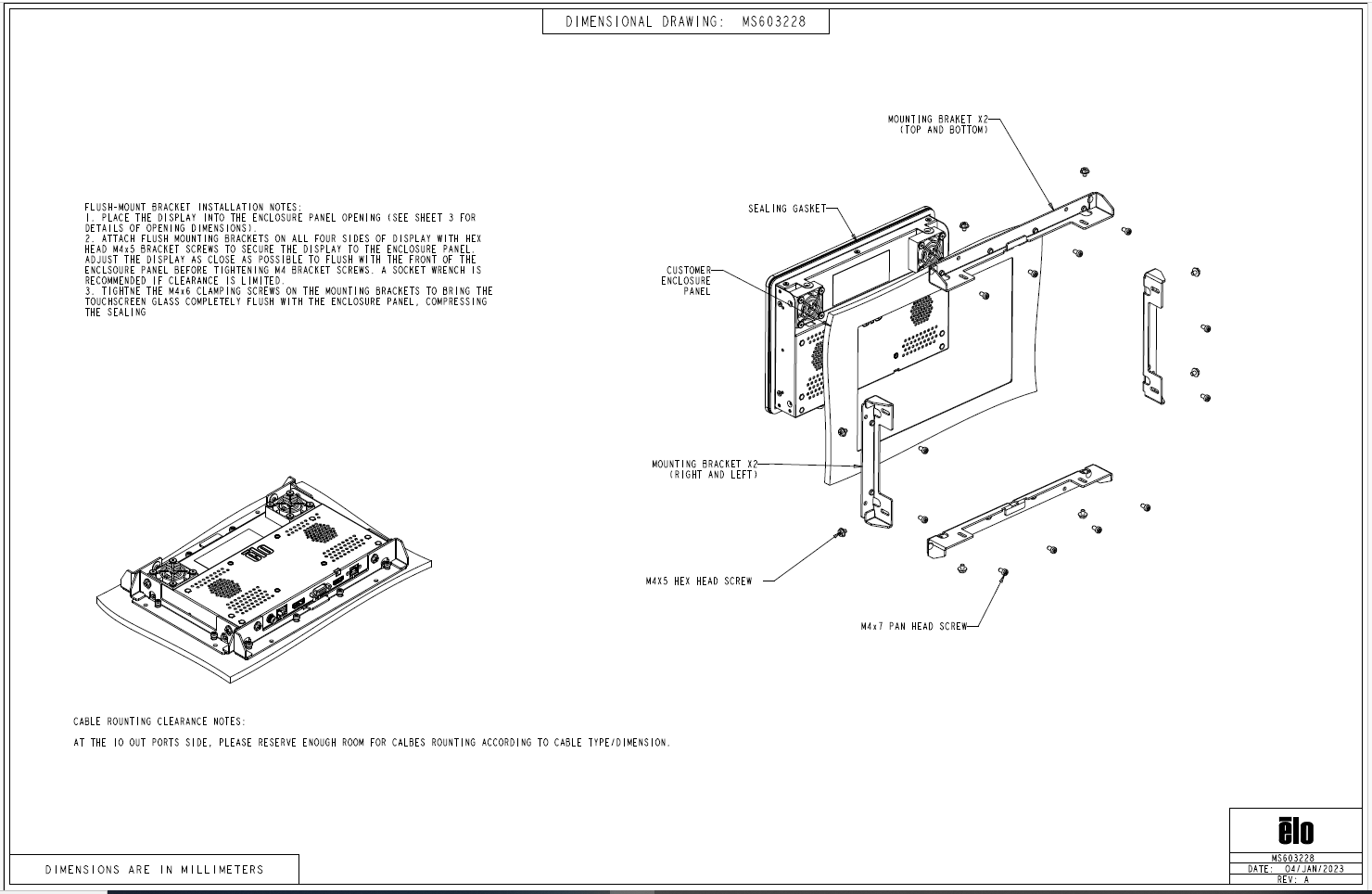

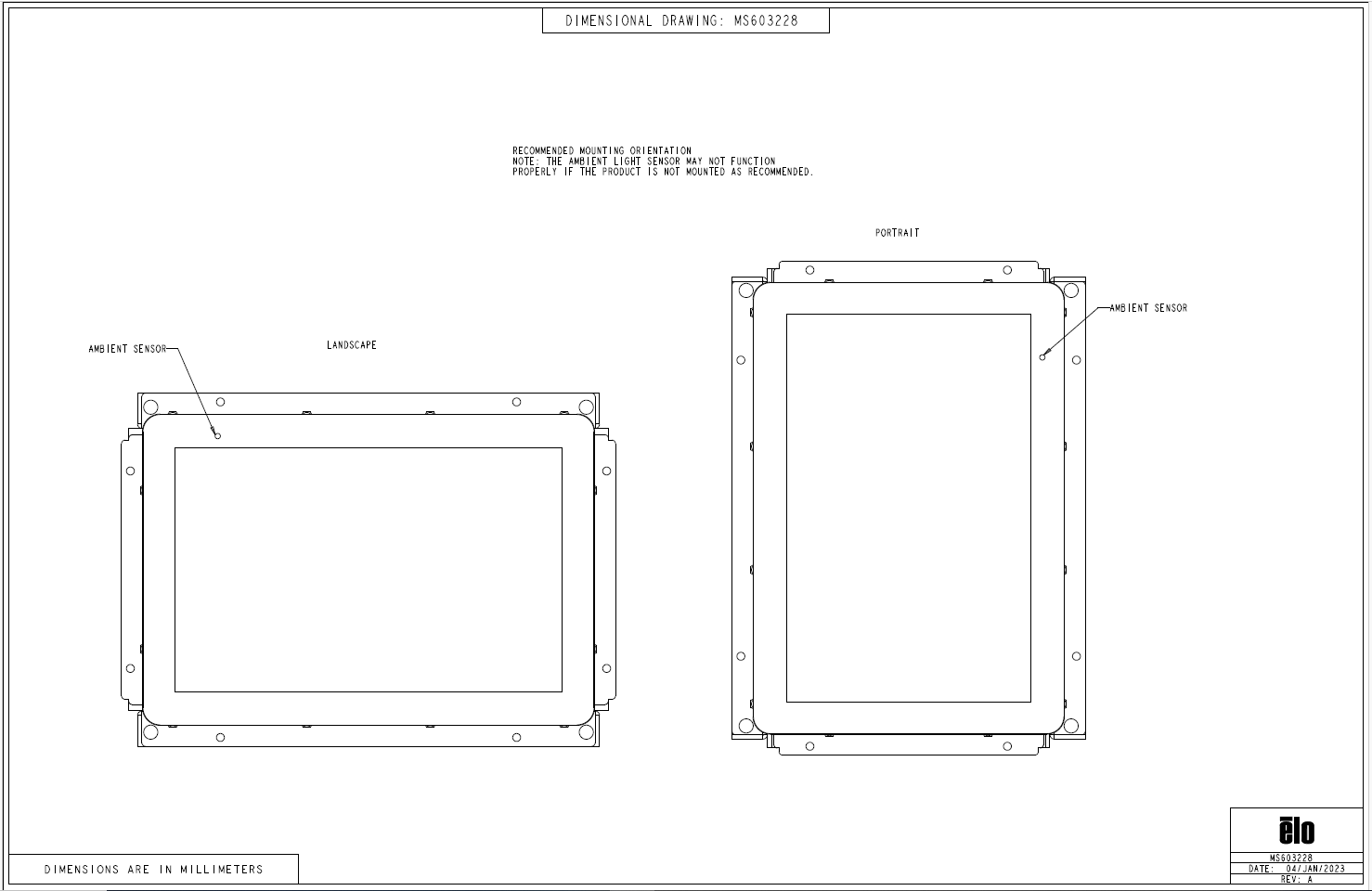

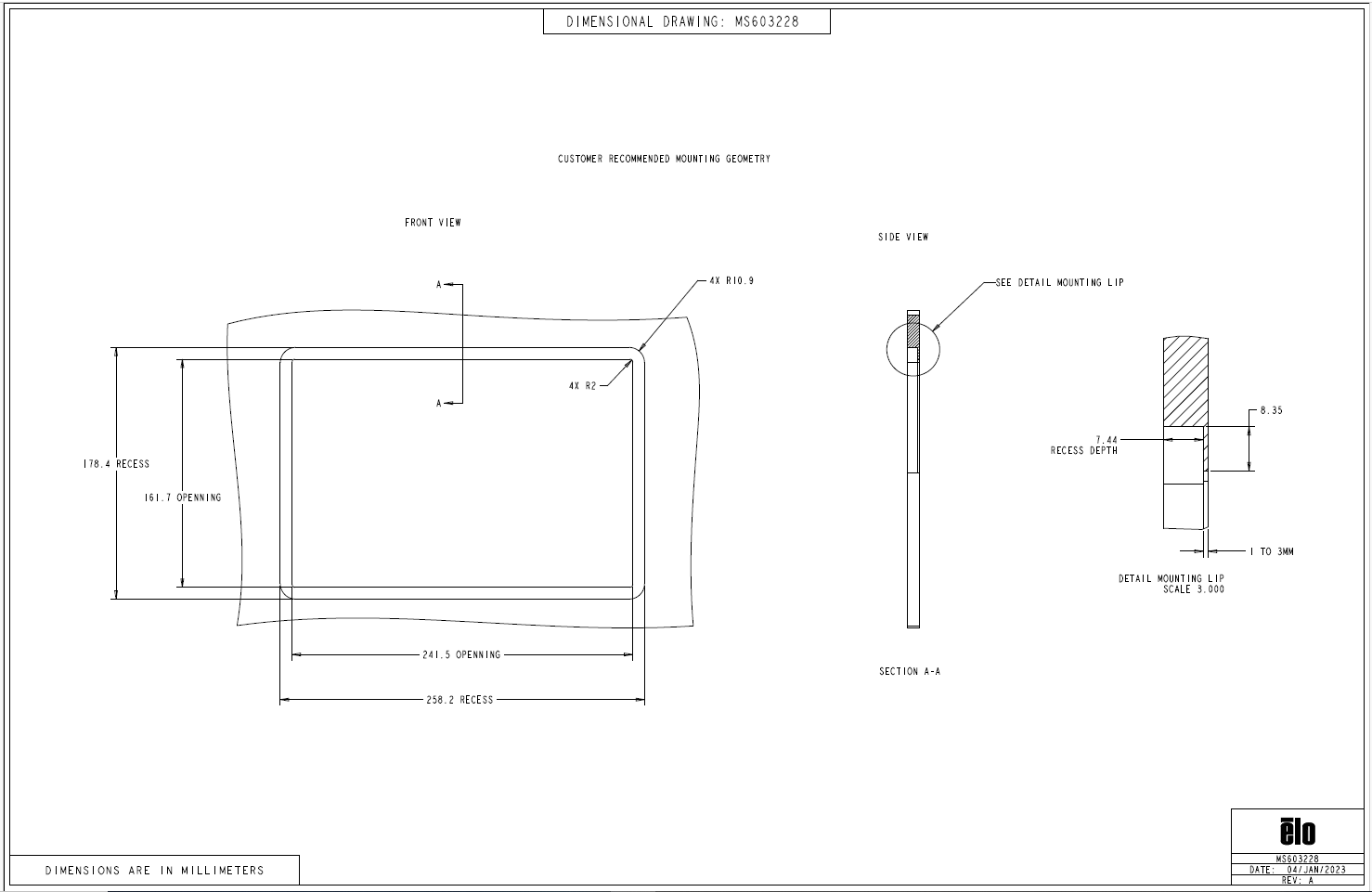

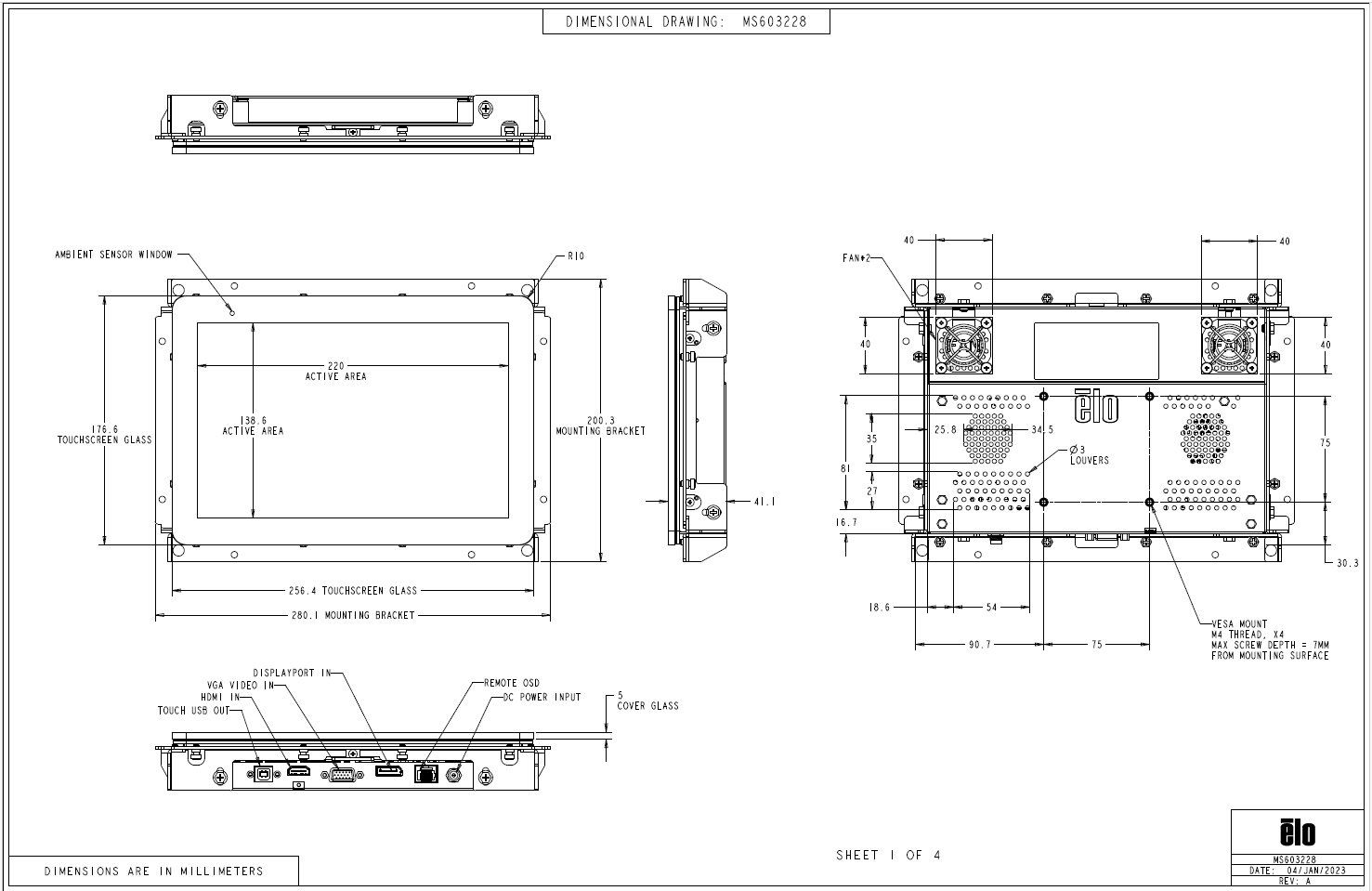

Questo articolo fornisce i disegni dimensionali del monitor touch ET1099L Outdoor Open Frame

Trova anche i disegni allegati a questo articolo.


Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
