Come monto il monitor touch 1099L Outdoor Open Frame?

Questo articolo descrive i vari metodi di montaggio del monitor touch 1099L Outdoor Open Frame

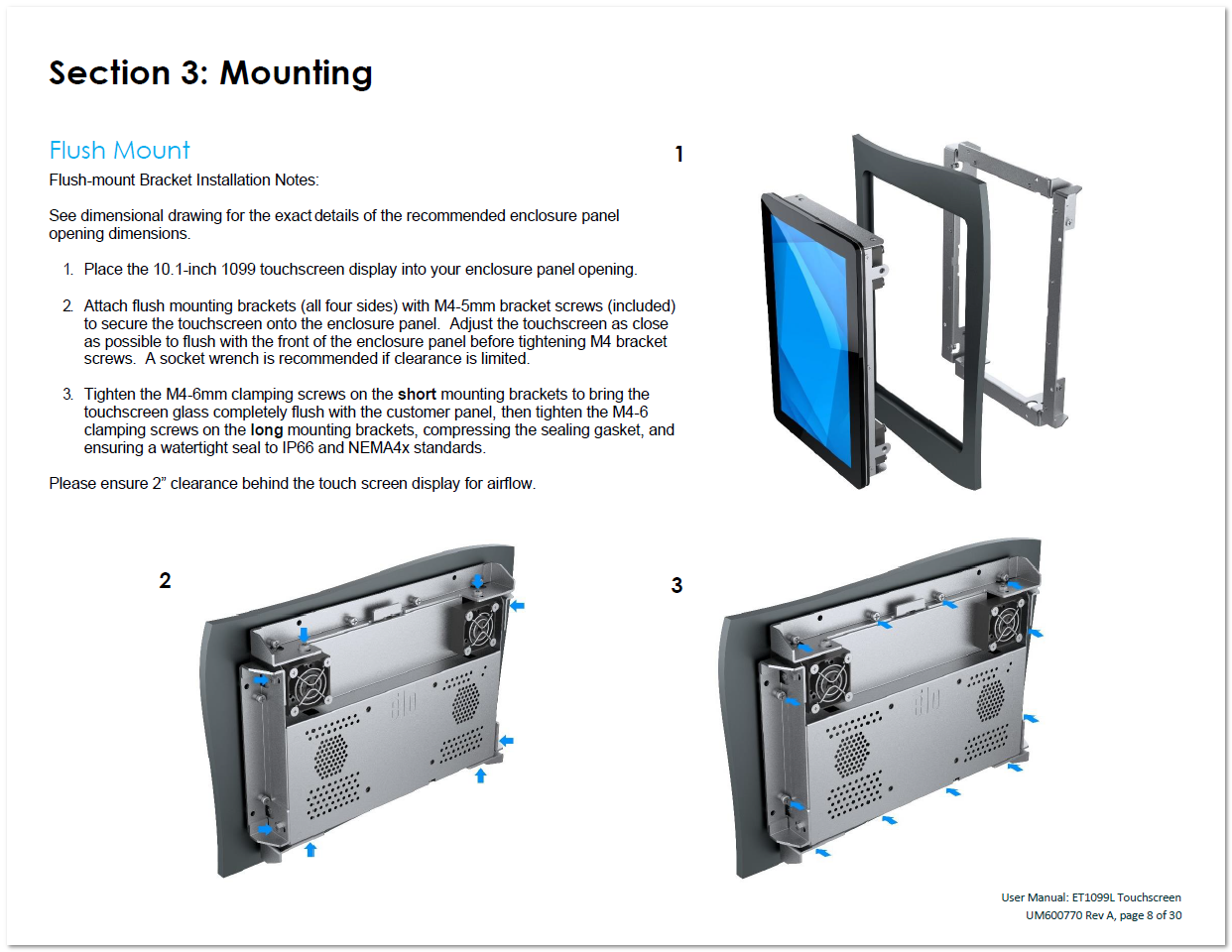

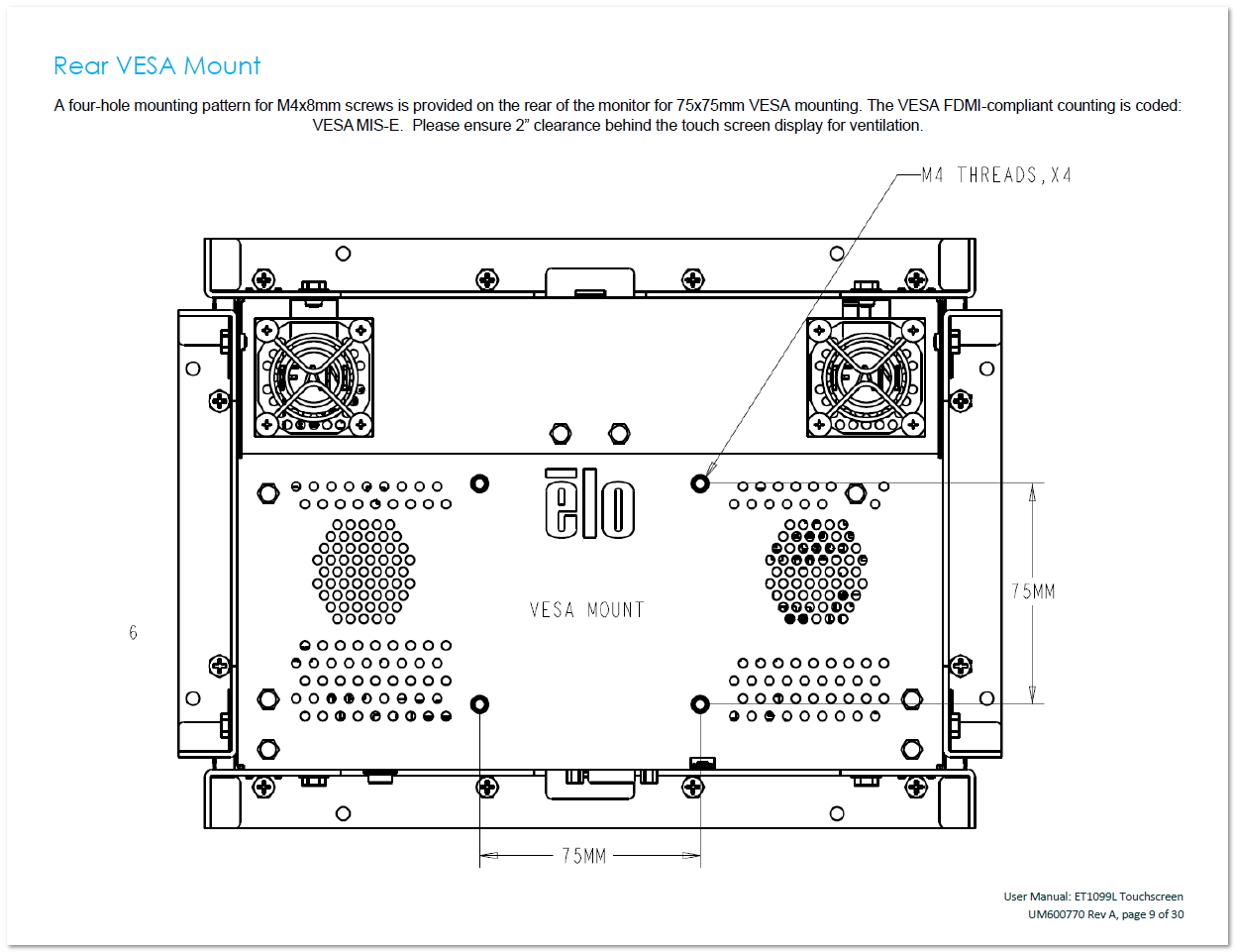

Dalle pagine 8-9 del Manuale dell'utente:

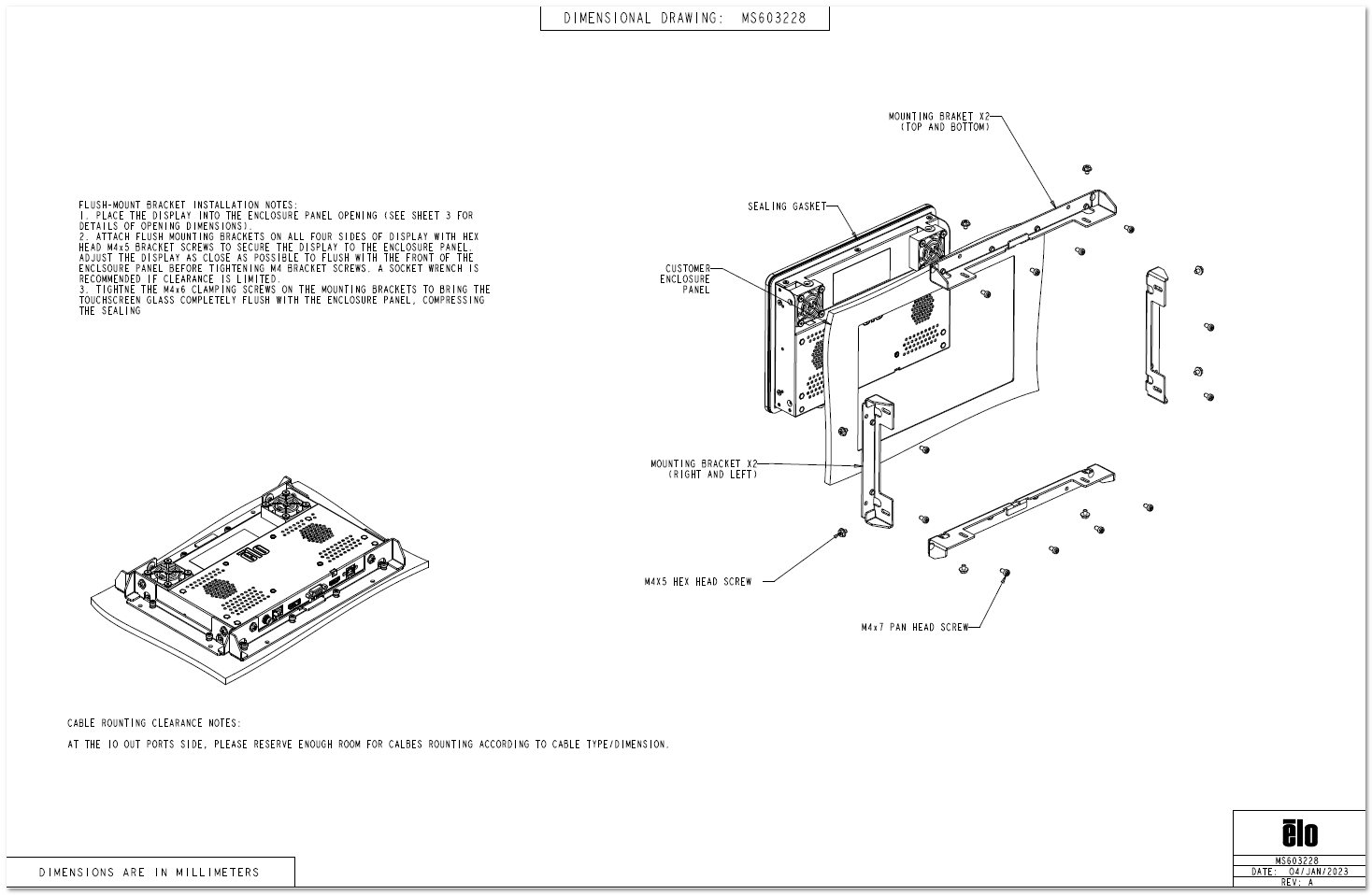

Dalla pagina 4 del Disegno dimensionale:
