1502LMの寸法図はどこにありますか？

この記事は1502LMの寸法図を提供します

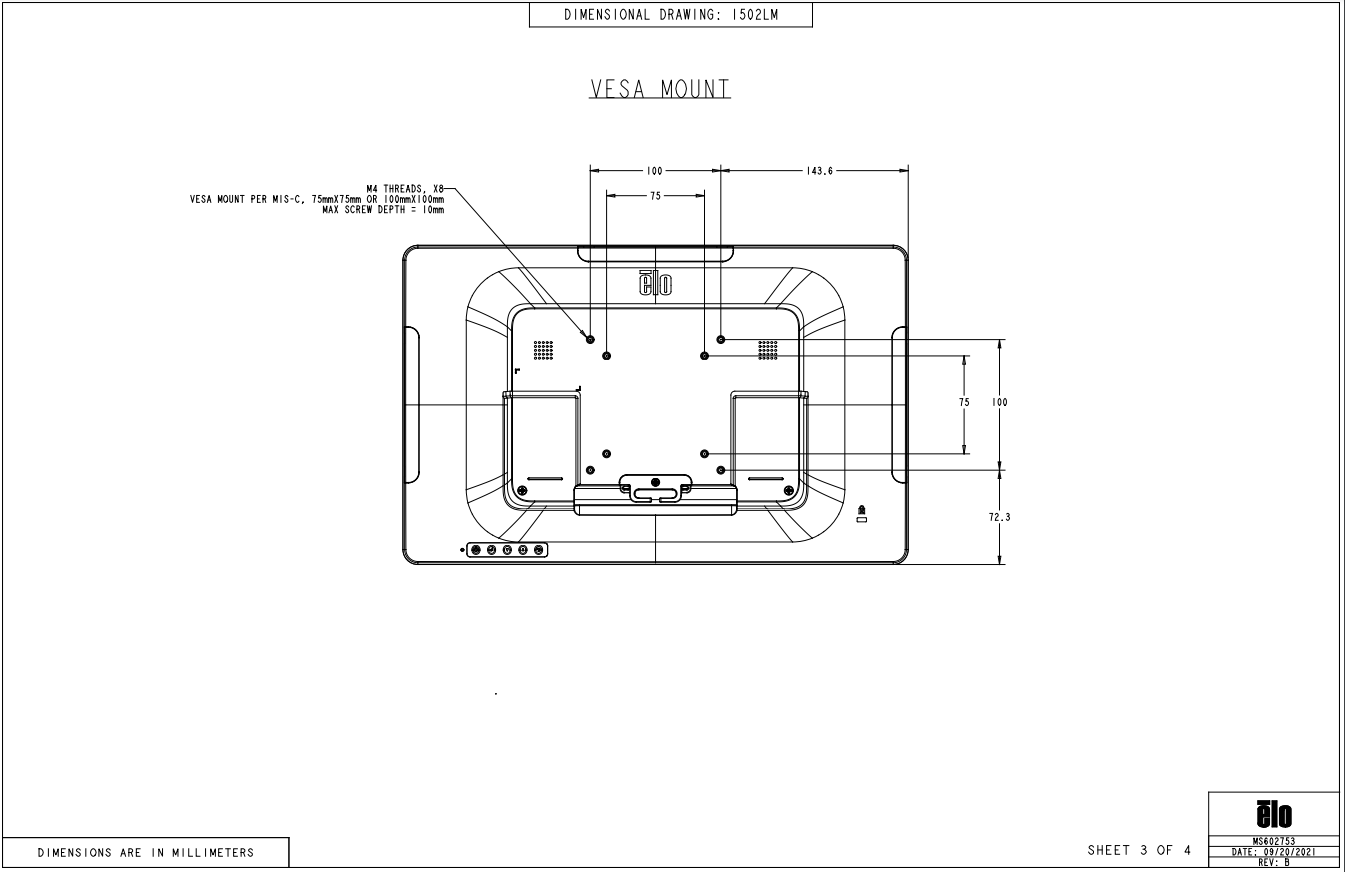

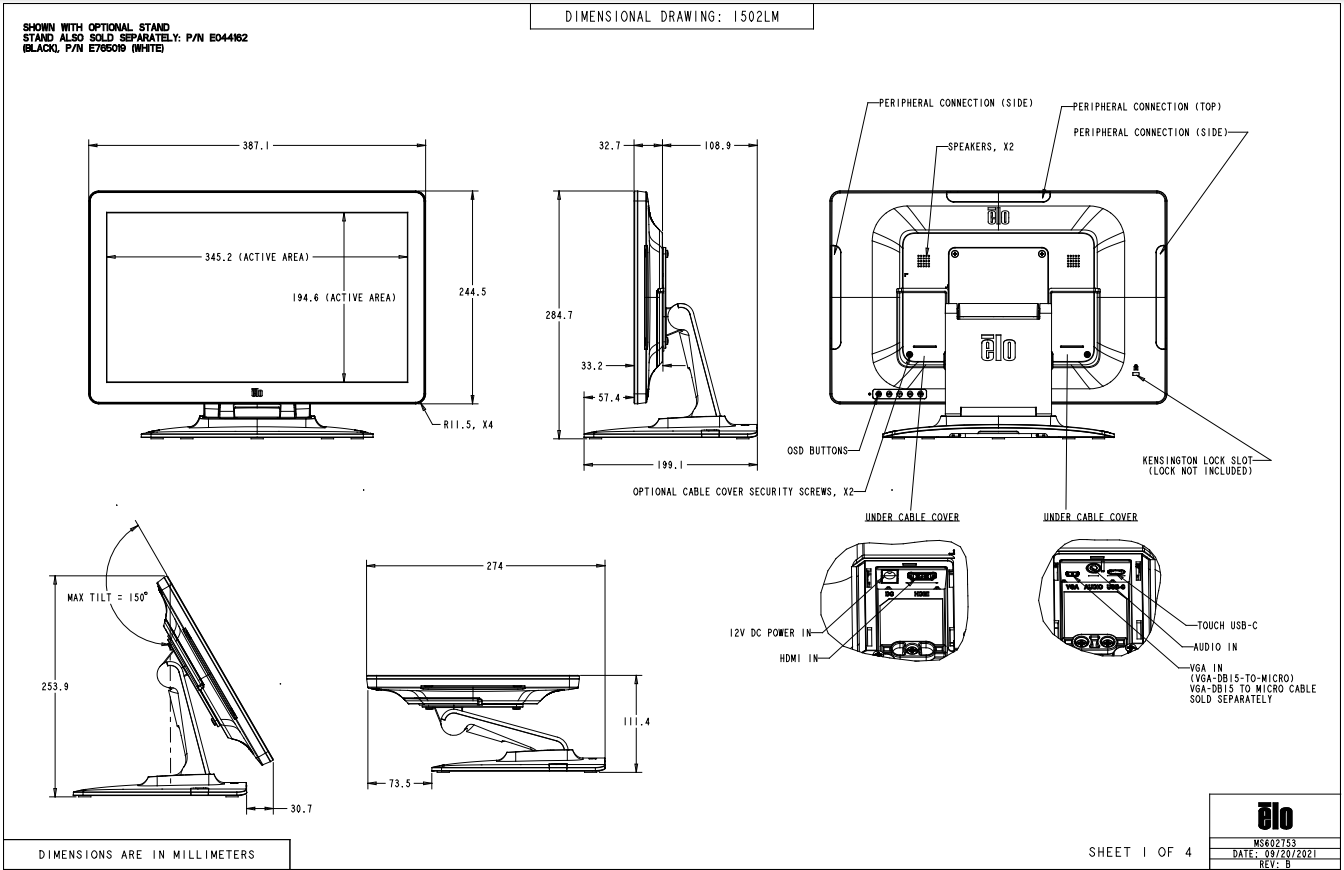

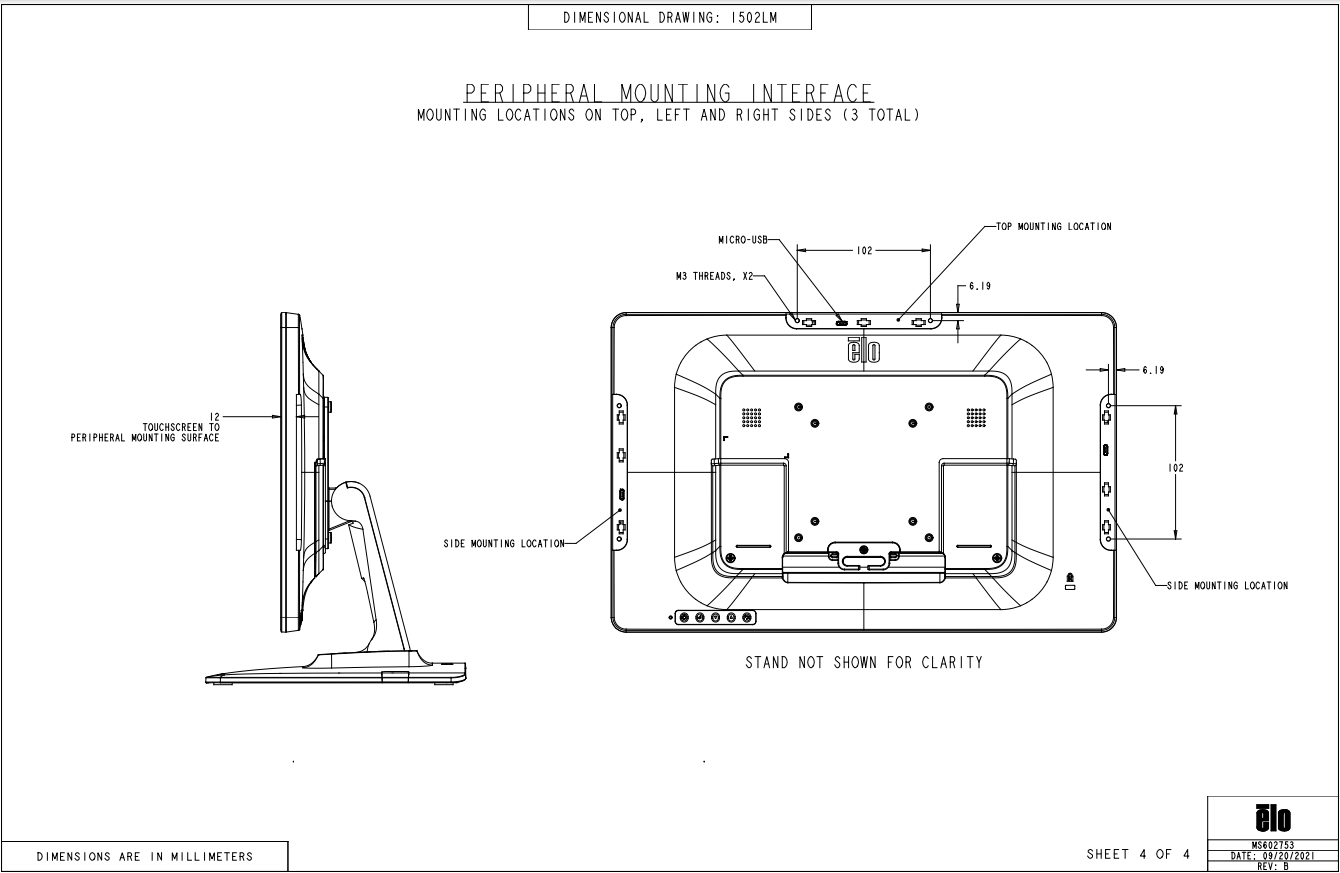

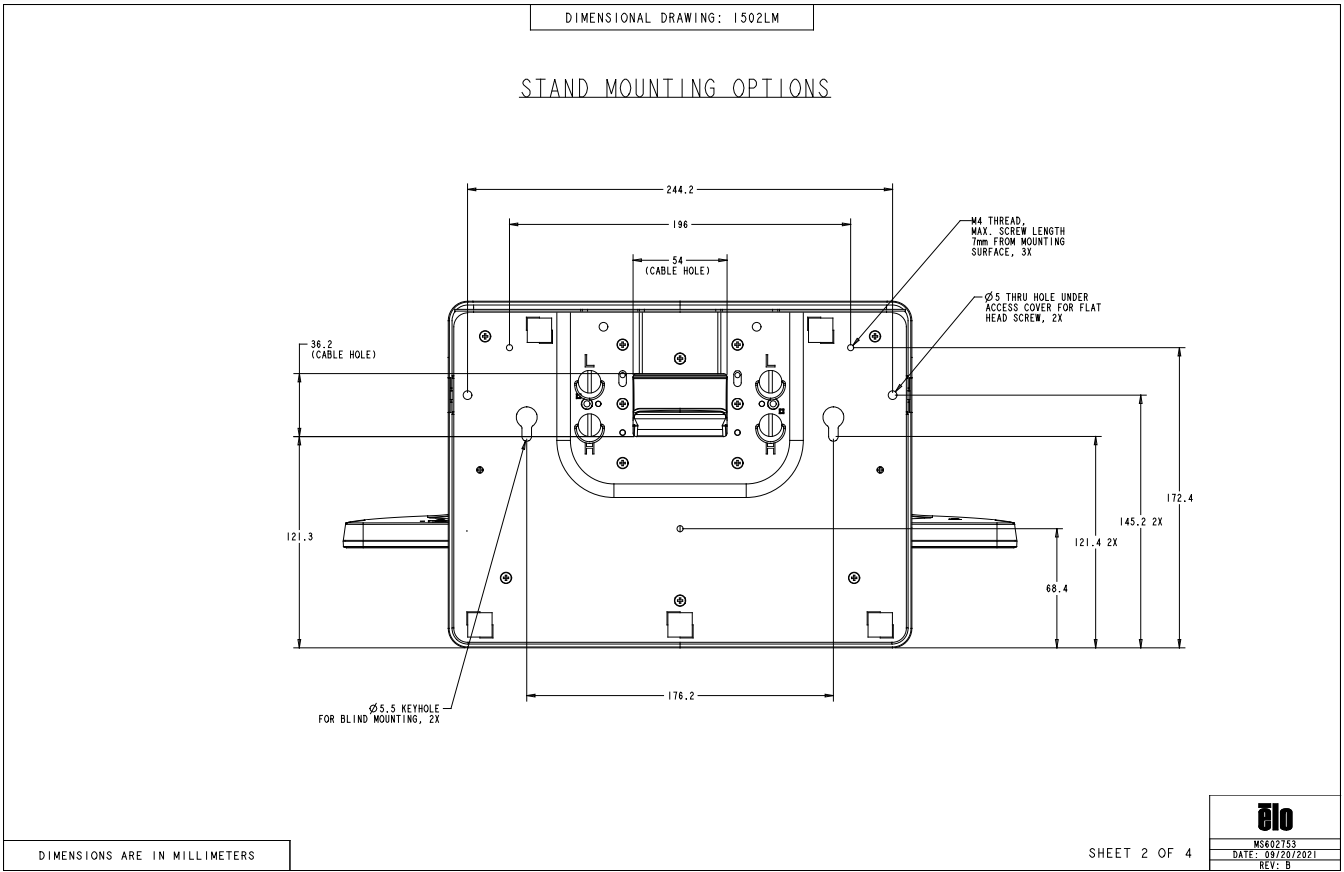

以下は1502LM製品の図面です。

これには以下の部品番号が含まれます:

  • スタンド付きホワイト - E542808
  • スタンド付きブラック - E542617
  • スタンドなしホワイト - E967255
  • スタンドなしブラック - E967064


上記の図面は.pdf形式でもダウンロードできます こちら

CAD図面はこちらでリクエストできます
