Eloサポートへようこそ

ドライバー、製品情報、技術的な回答など。

X-Seriesスタンドの寸法や図面はどこで見つけられますか？ P/N: E154446

この記事では、Xシリーズスタンドの寸法図を提供します。部品番号：E154446

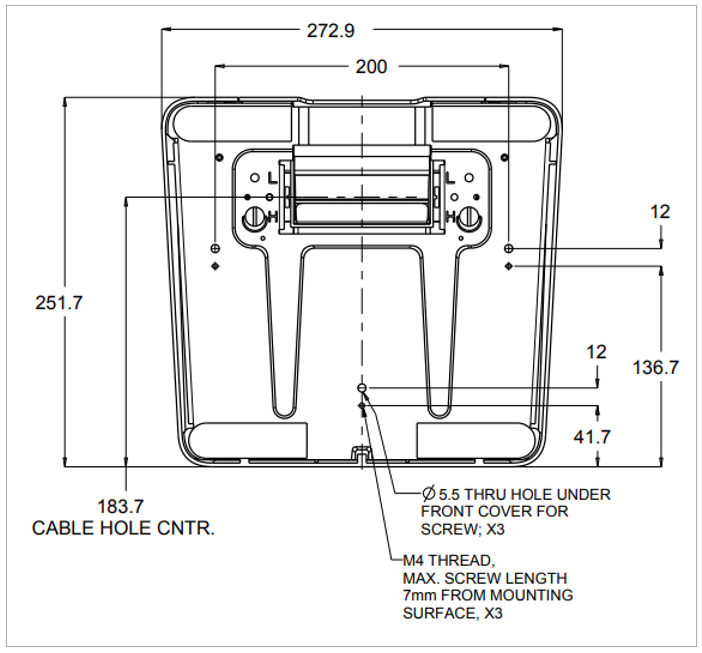

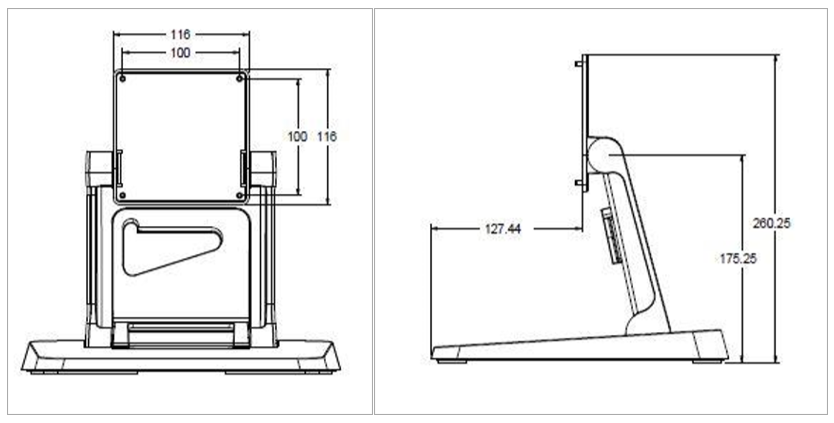

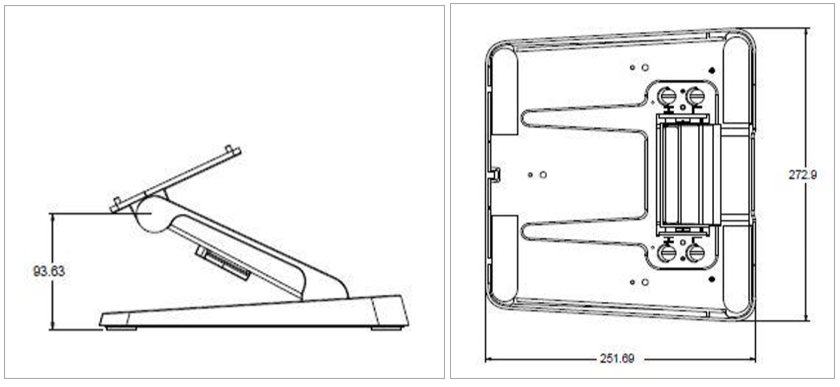

Xシリーズスタンドの寸法図については、以下をご覧ください。部品番号：E154446






Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
