X-시리즈 스탠드를 어떻게 제거하나요?

이 문서에서는 X-Series AIO에서 스탠드를 제거하는 방법을 설명합니다.

X-Series AIO 시스템에서 스탠드를 제거하는 방법은 아래를 참조하십시오.

1. X-Series를 보호 표면에 거꾸로 놓습니다.

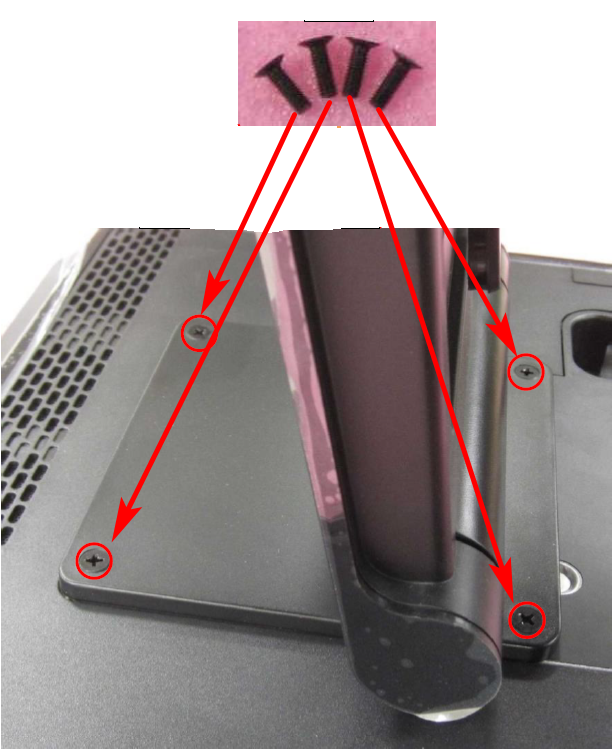

2. 아래 사진에 표시된 4개의 필립스 VESA 스크류를 제거합니다.
