Elo 기술 지원에 오신 것을 환영합니다

드라이버, 제품 정보, 기술 문의 답변 등.

1099L 아웃도어 오픈 프레임 모니터의 도면은 어디에서 찾을 수 있나요?

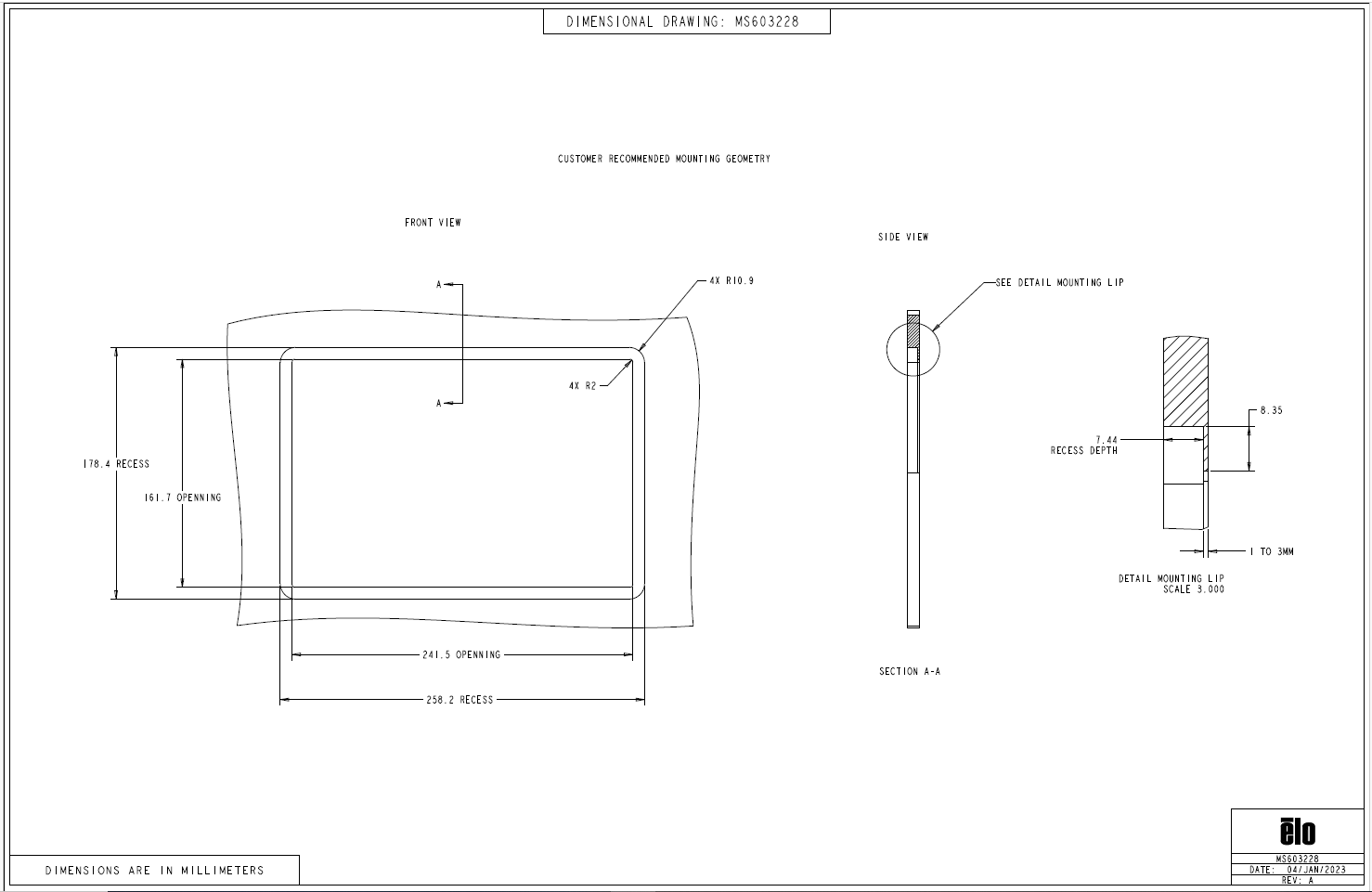

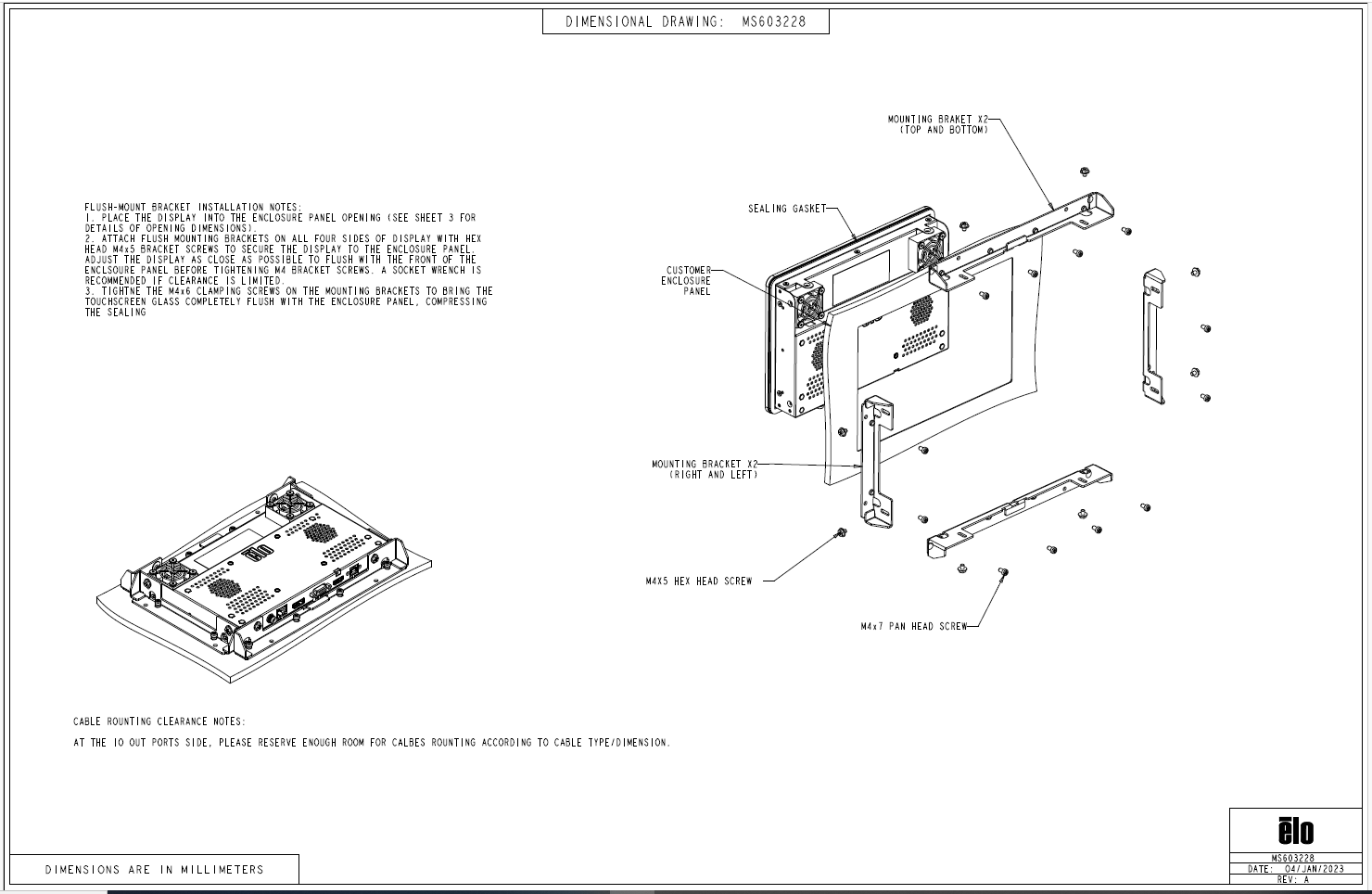

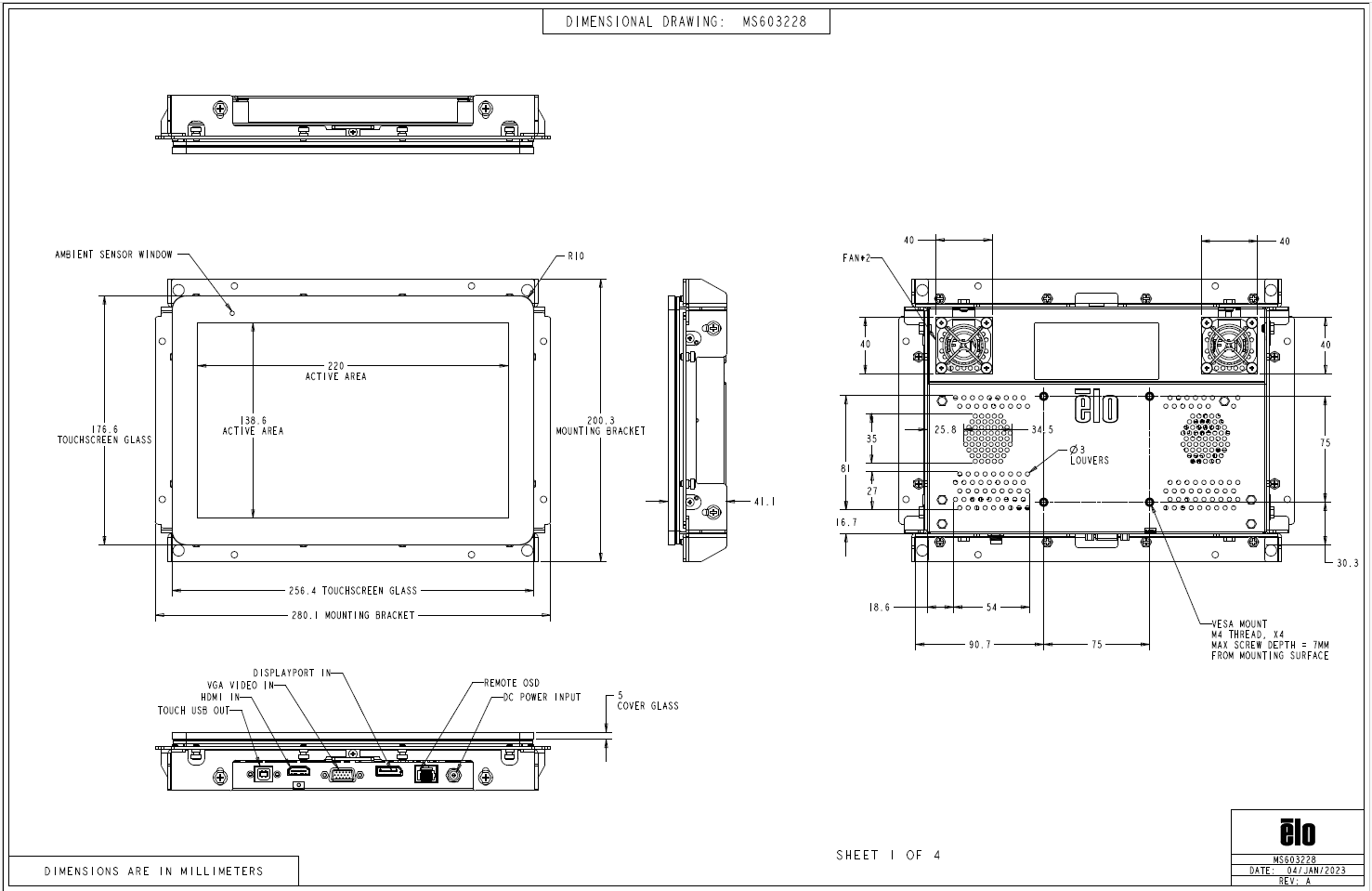

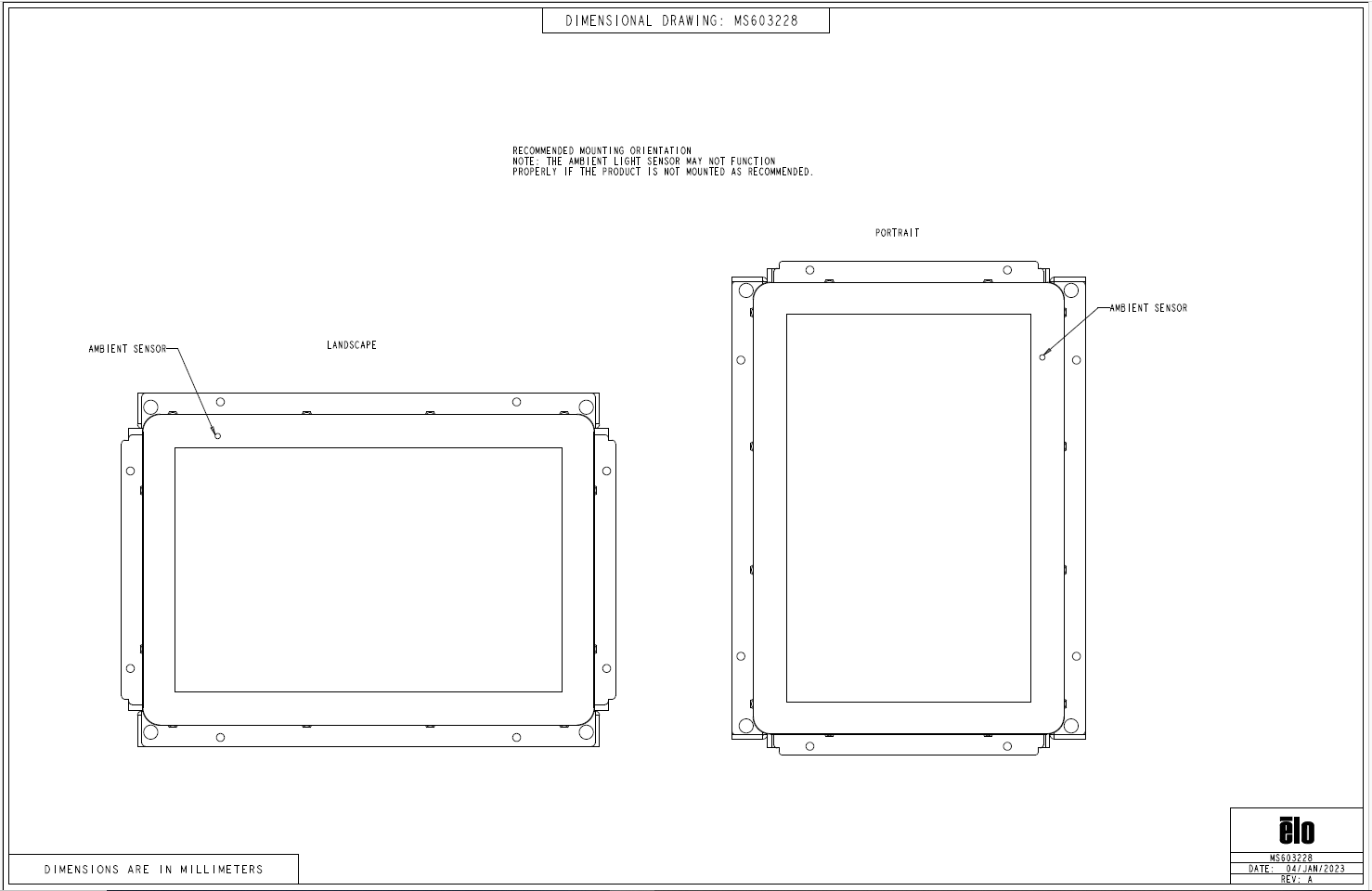

이 문서는 ET1099L 실외 오픈 프레임 터치 모니터의 치수 도면을 제공합니다.

또한 이 문서에 첨부된 도면을 확인하세요.
