Wat is de VESA-bevestiging op de Elo 1302L-monitor?

Dit artikel geeft aan welk type montage op de Elo 1302L monitor is

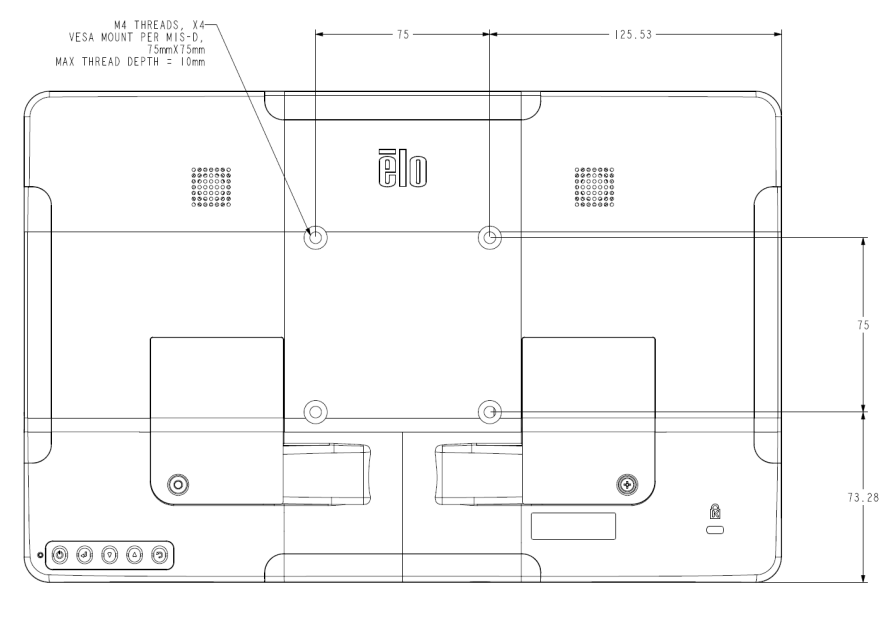

Achterste VESA-mount op de Elo ET1302L:

Er is een viergaatjes 75 x 75 mm montage-interface voor M4-schroeven op de achterkant van de monitor. Verwijder de standaard met een Phillips-schroevendraaier om toegang te krijgen tot de montage-interface. De VESA FDMI-conforme montage is gecodeerd VESA MIS-D, 75, C .
