Welkom bij Elo Support

Drivers, productinfo, technische antwoorden en meer.

Waar kan ik dimensionale tekeningen vinden voor de 2799L Outdoor Open Frame monitor?

Dit artikel bevat de dimensionale tekeningen voor de 2799L Outdoor Open Frame monitor

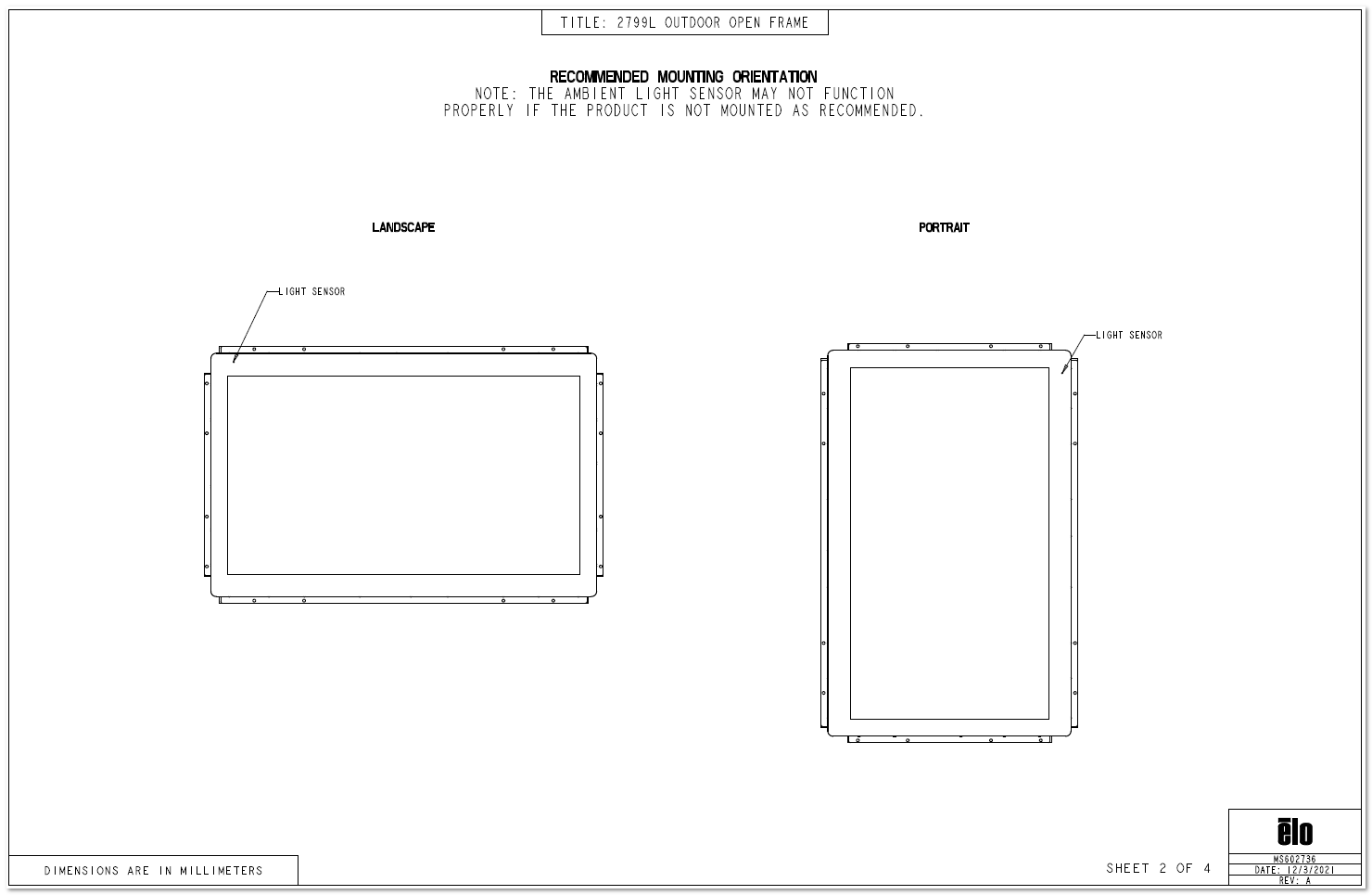

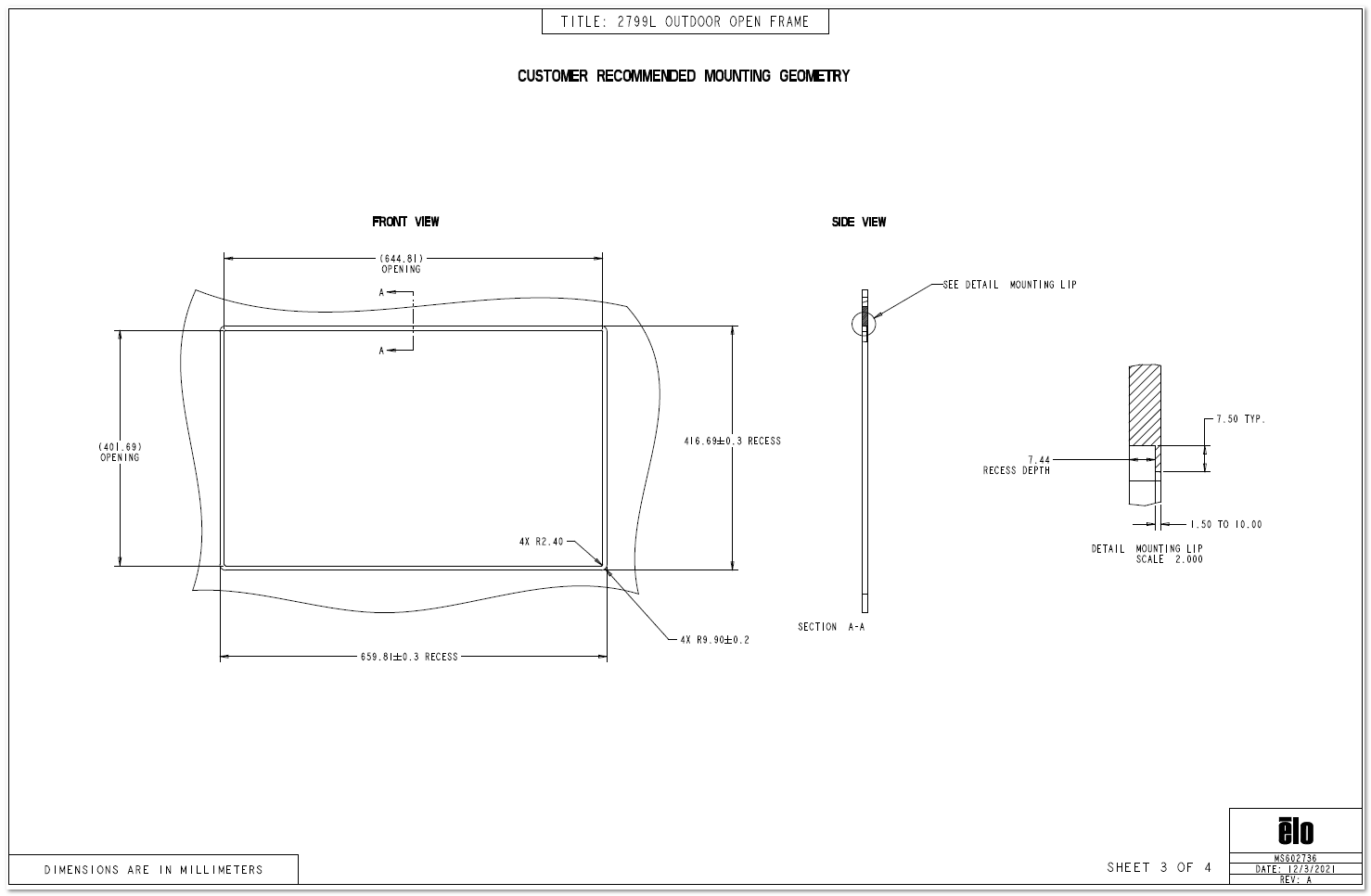

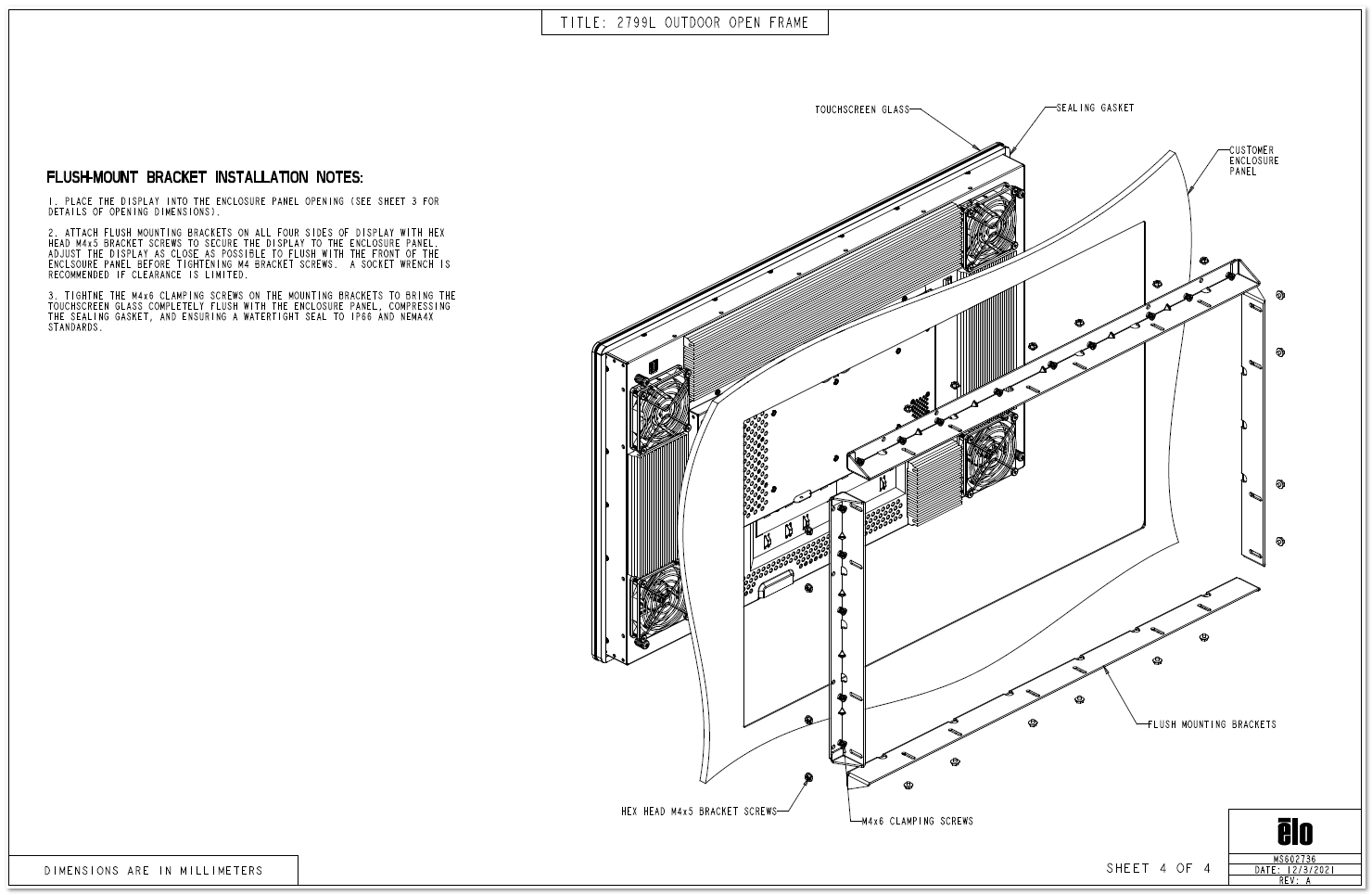

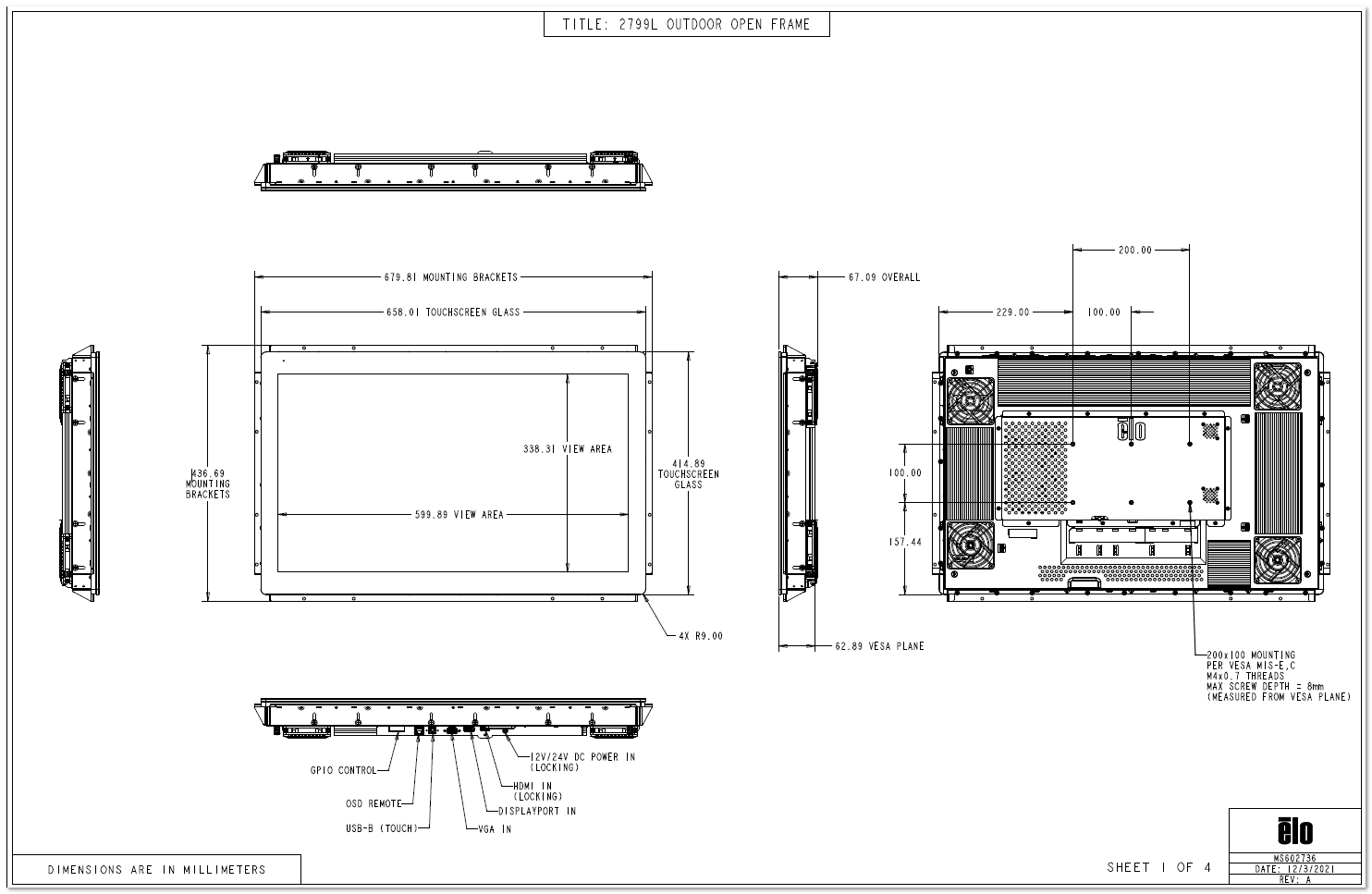

Tekeningen:



Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
