Waar kan ik afmetingen tekeningen voor de 1099L Outdoor Open Frame monitor vinden?

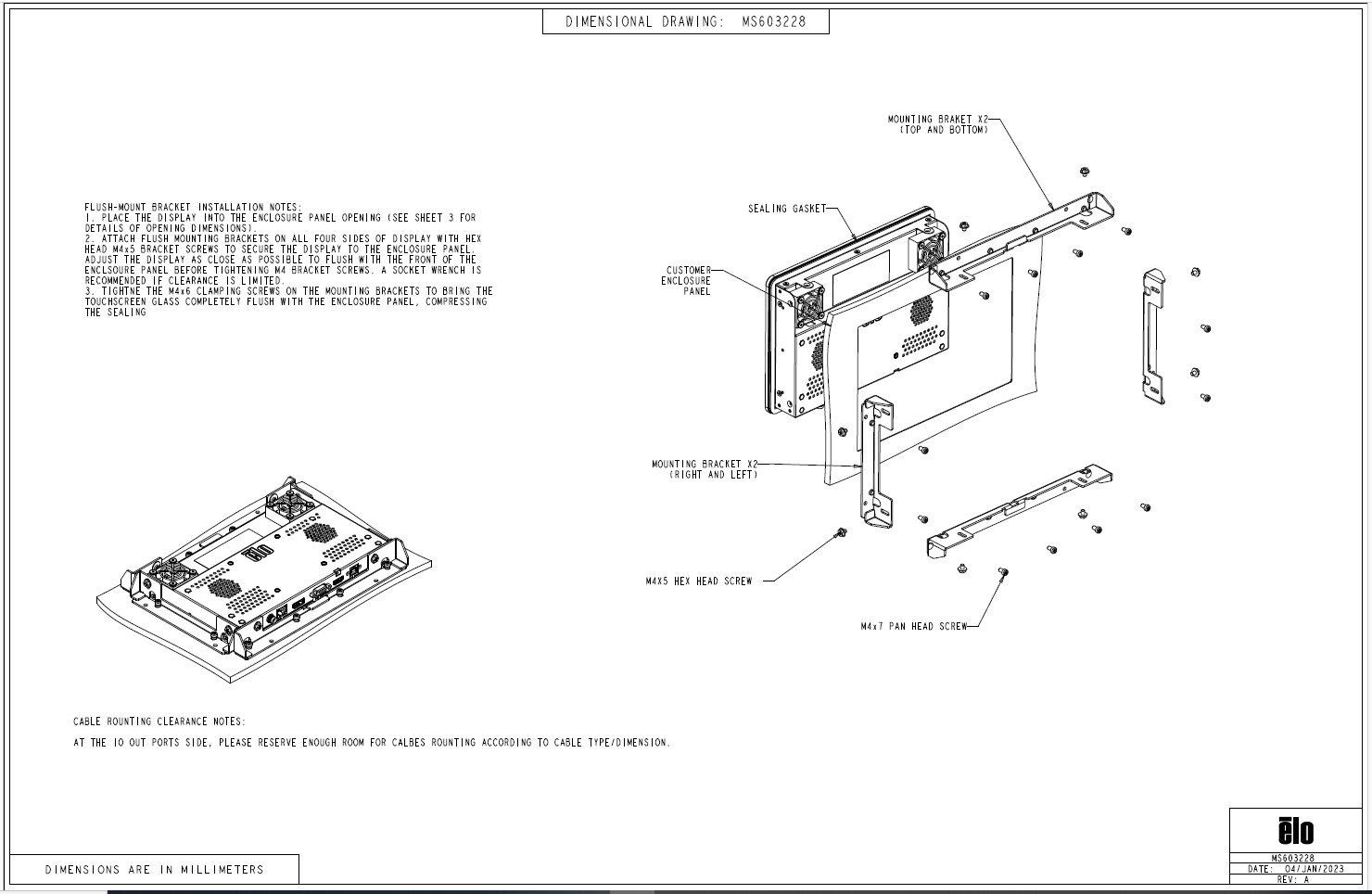

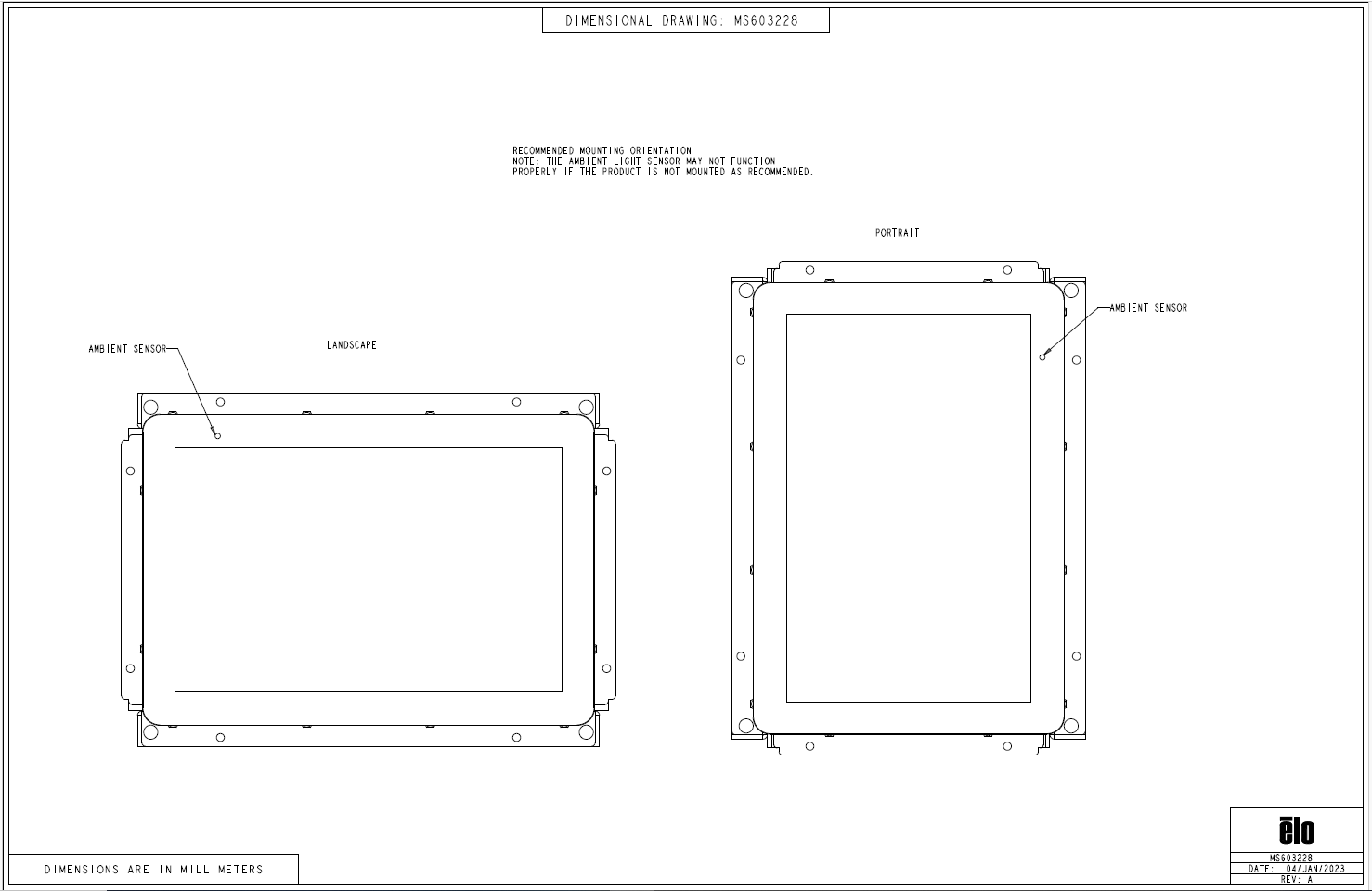

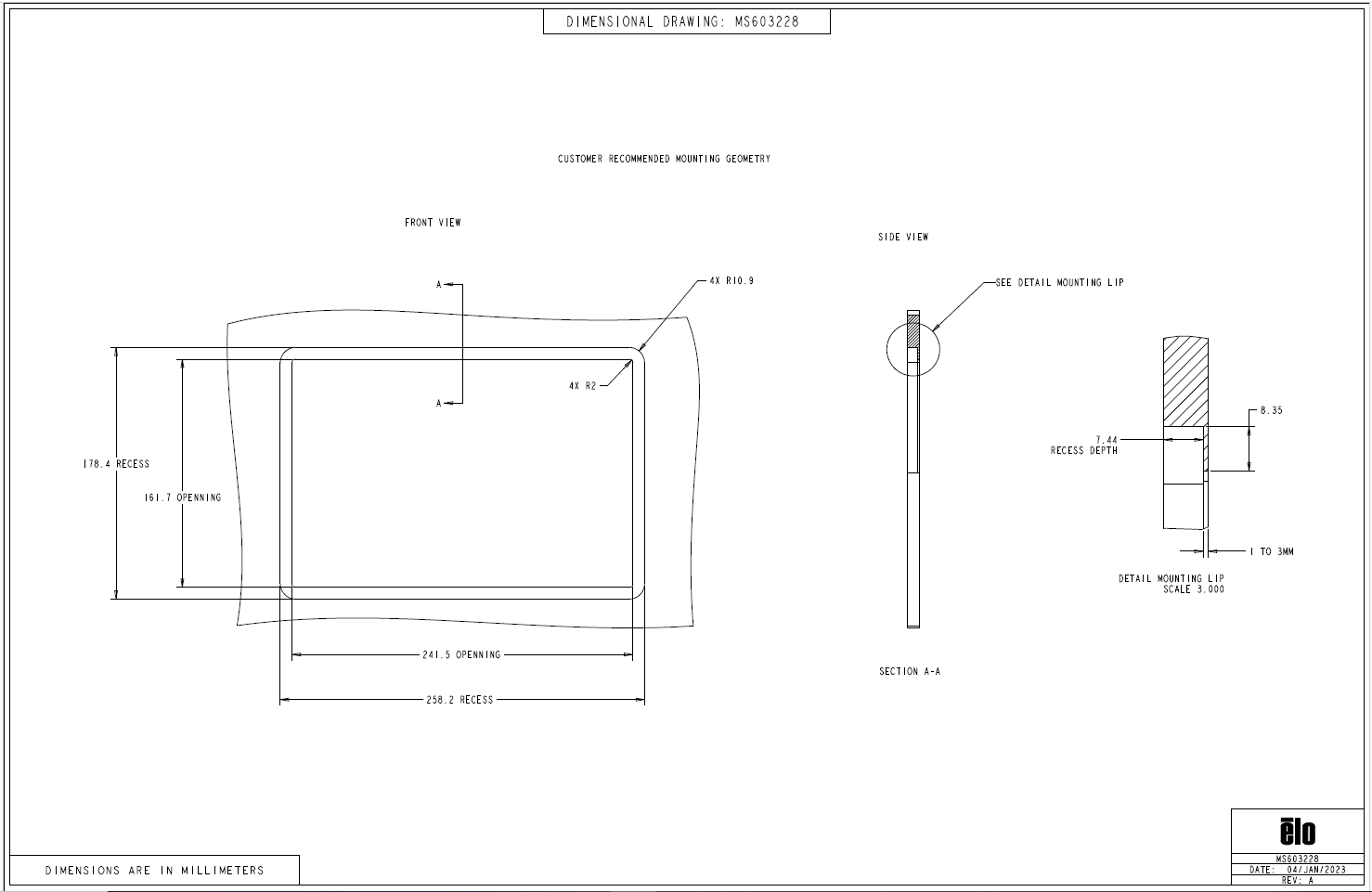

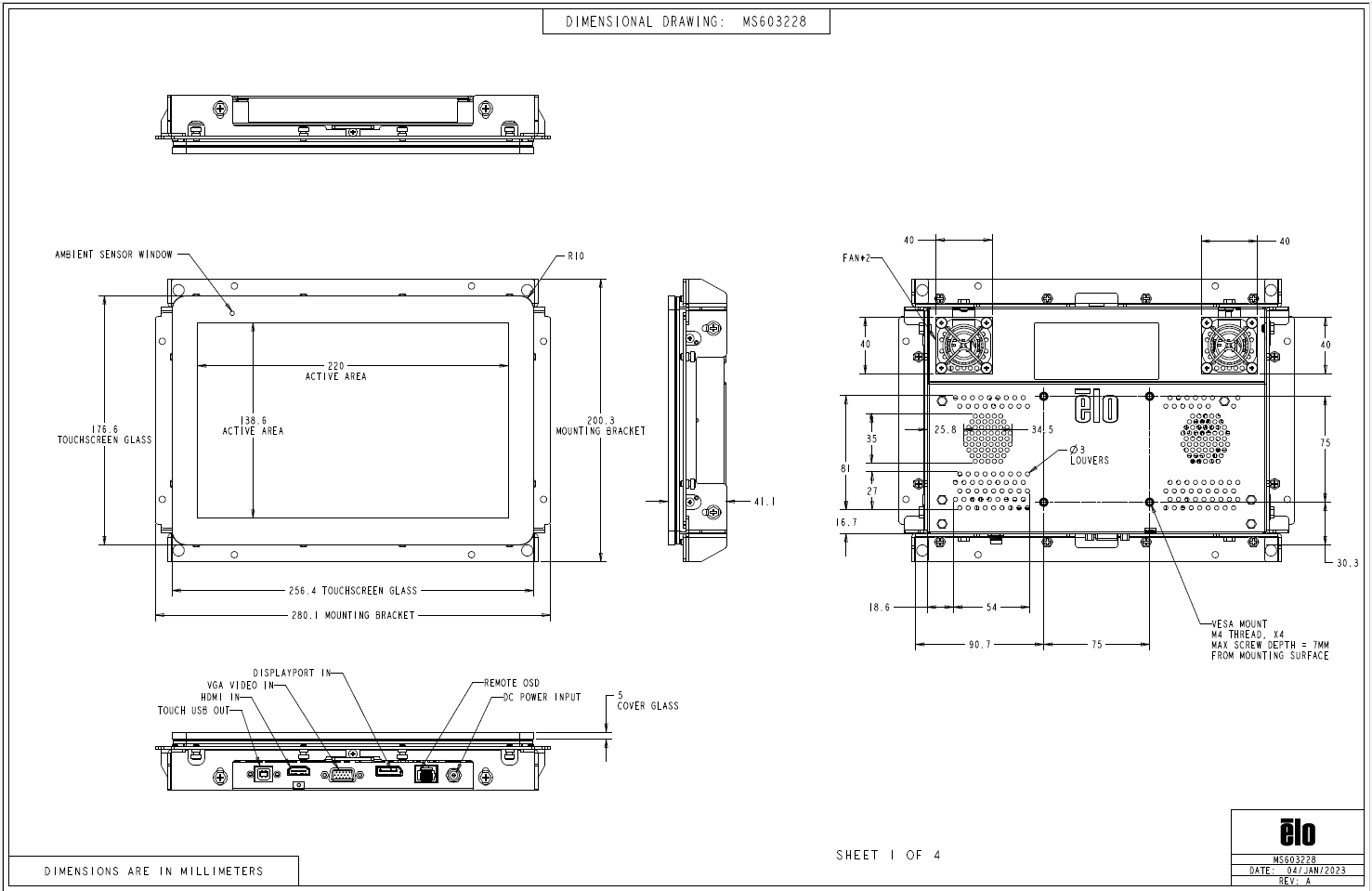

Dit artikel geeft de dimensionale tekeningen van de ET1099L Outdoor Open Frame touchmonitor

Ook vindt u de tekeningen die aan dit artikel zijn gehecht.
