Hoe monteer ik de 1099L Outdoor Open Frame touchmonitor?

Dit artikel beschrijft de verschillende methoden voor het monteren van de 1099L Outdoor Open Frame touchmonitor

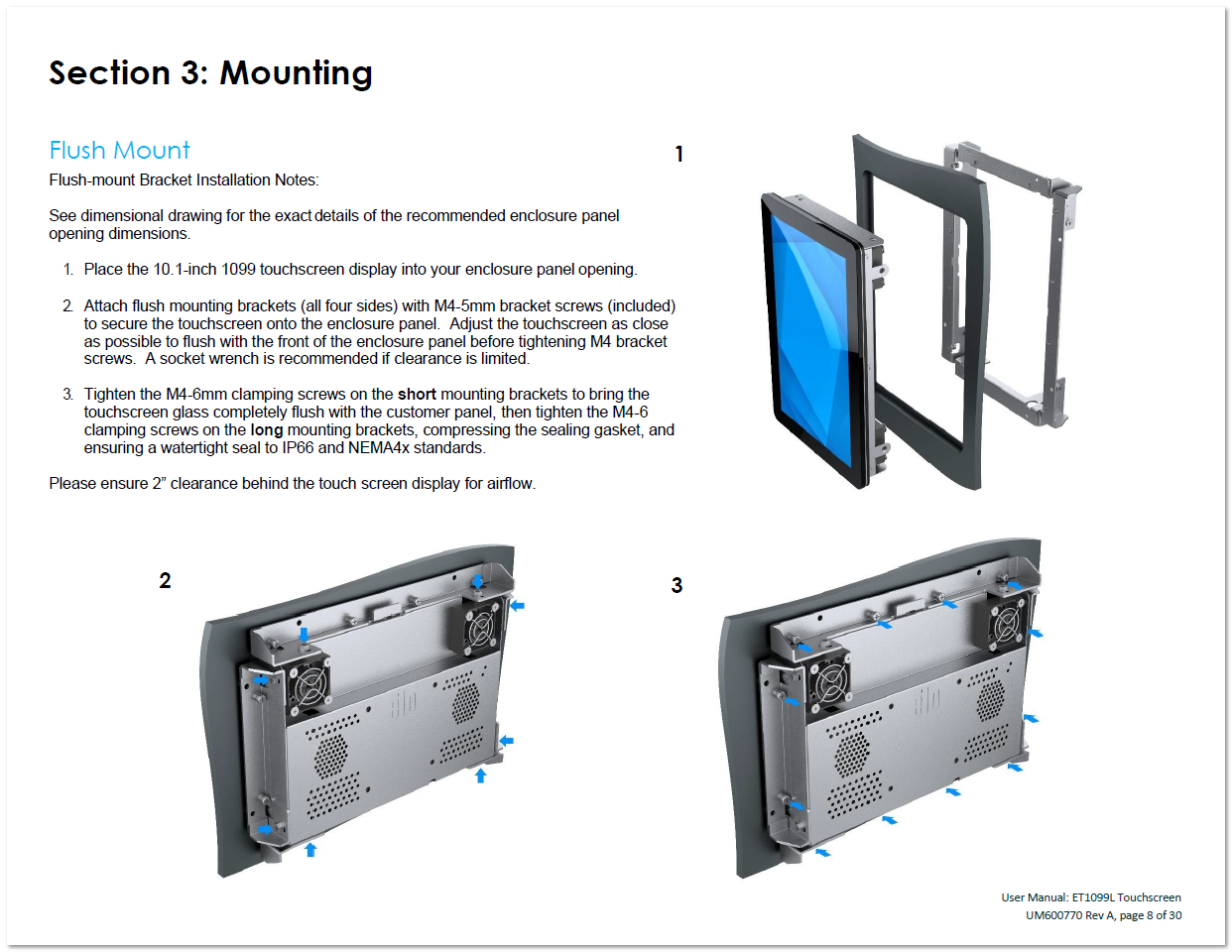

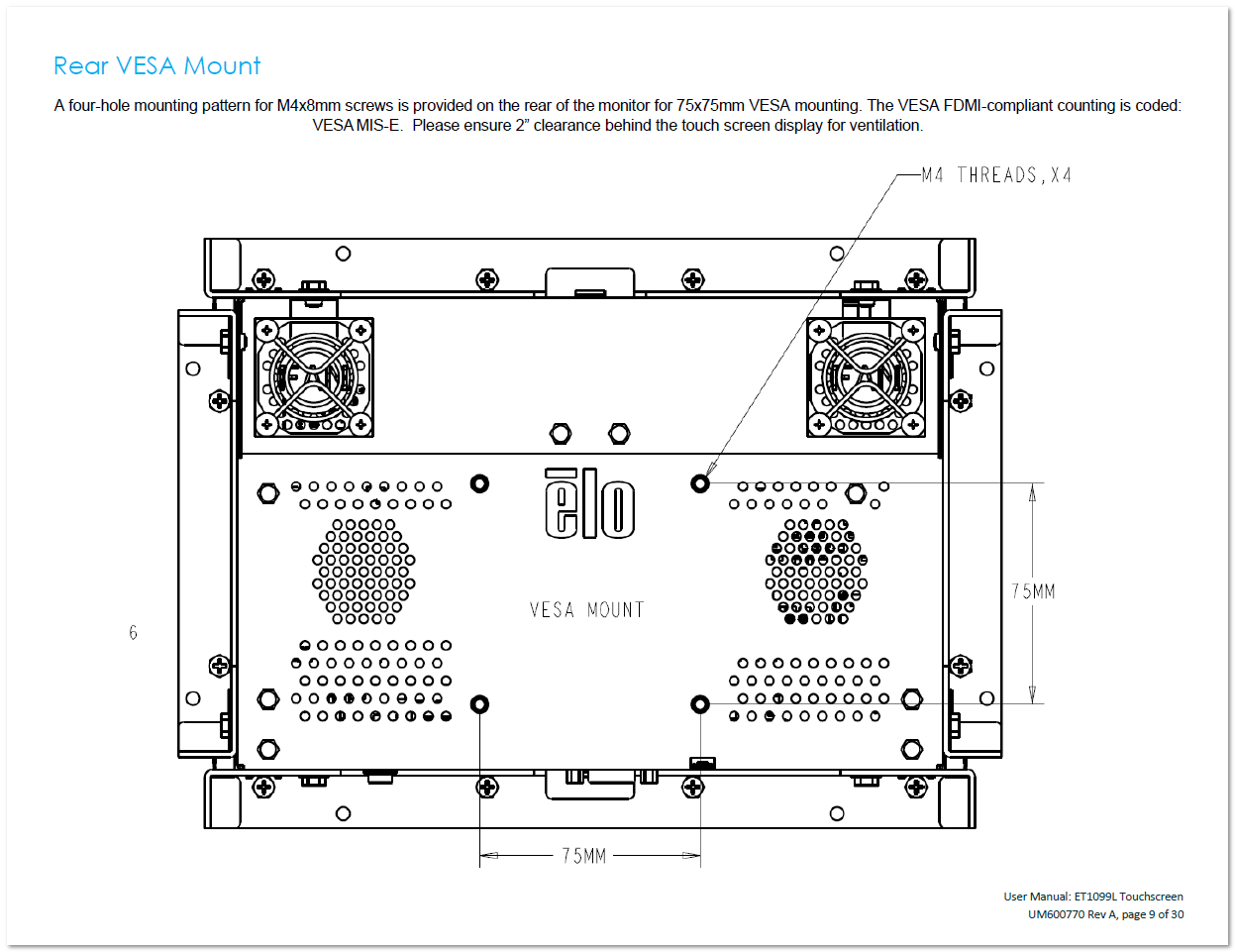

Van pagina's 8-9 van de Gebruikershandleiding:

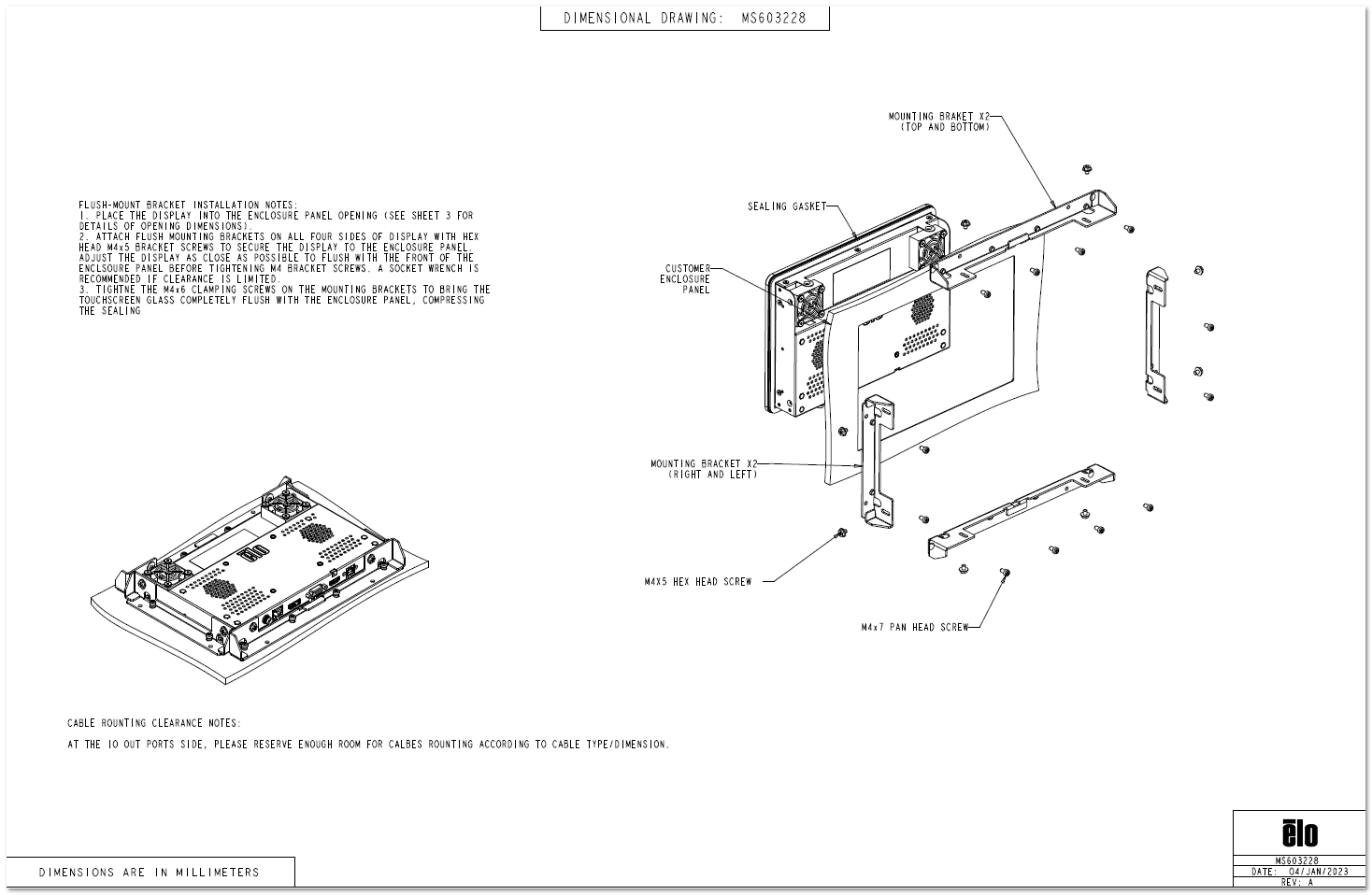

Van pagina 4 van de Dimensionale Tekeningen:
