Czym jest uchwyt VESA w monitorze Elo 1502L?

Artykuł ten opisuje rodzaj montażu na monitorze Elo 1502L

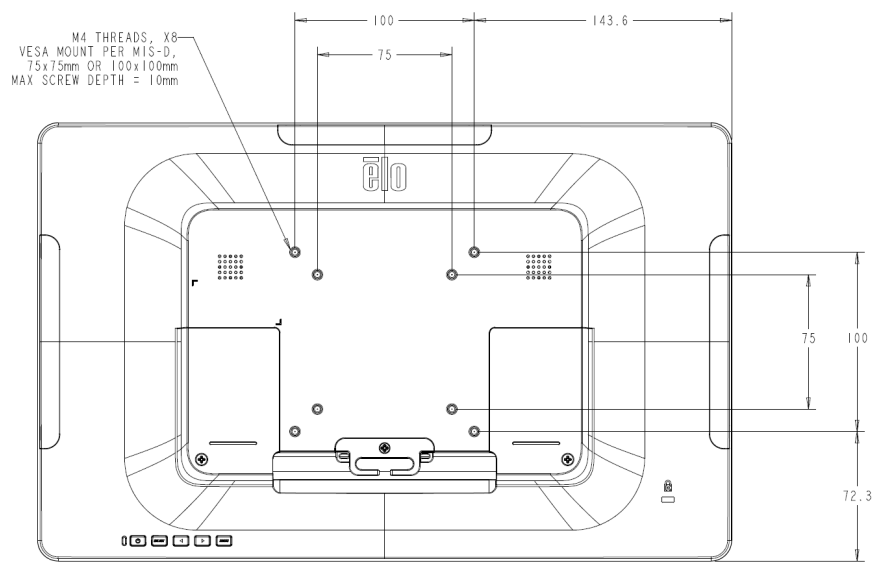

Montaż VESA z tyłu na monitorze Elo ET1502L:

Na tylnej stronie monitora znajduje się czterootworowy wzór montażu 75x75mm i 100x100mm dla śrub M4. Aby uzyskać dostęp do tego interfejsu montażowego, należy usunąć podstawę za pomocą wkrętaka krzyżakowego. Montaż zgodny z VESA FDMI jest zakodowany: VESA MIS-D, 75, C oraz VESA MIS-D, 100, C.
