O que é o suporte VESA no monitor Elo 1302L?

Este artigo fornece informações sobre o tipo de montagem no monitor Elo 1302L

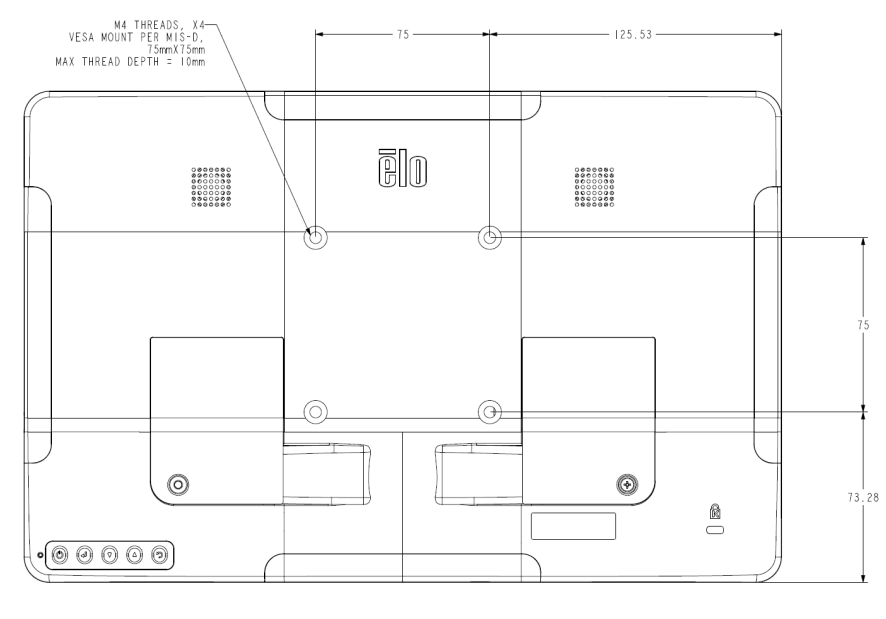

Montagem VESA traseira no Elo ET1302L:

Uma interface de montagem de quatro furos 75 x 75 mm para parafusos M4 está disponível na parte traseira do monitor. Remova o suporte usando uma chave de fenda Phillips para acessar a interface de montagem. A contagem compatível com VESA FDMI é codificada VESA MIS-D, 75, C .
