Quais são as Opções de Montagem de Base para o Monitor Elo 2201L?

Este artigo fornece as Opções de Montagem de Base para o Monitor Elo 2201L

Opções de montagem de base no Elo ET2201L:

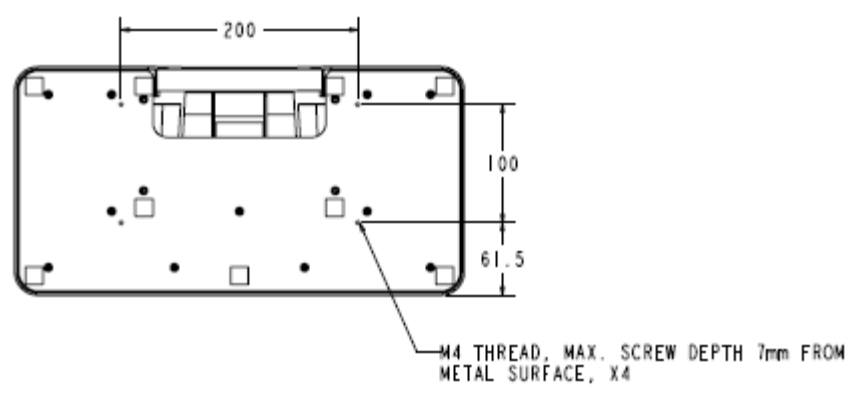

Para o monitor touchscreen 2002L, orifícios rosqueados estão disponíveis na parte inferior da base do suporte para montagem ou fixação. Veja abaixo.
