Quais são as diferenças entre o cabo DB9 para RJ45 do EloPOS e o cabo DB9 para RJ45 da série X?

Este artigo contém informações sobre as diferenças entre o cabo EloPOS DB9 para RJ45 e o cabo DB9 para RJ45 da série X

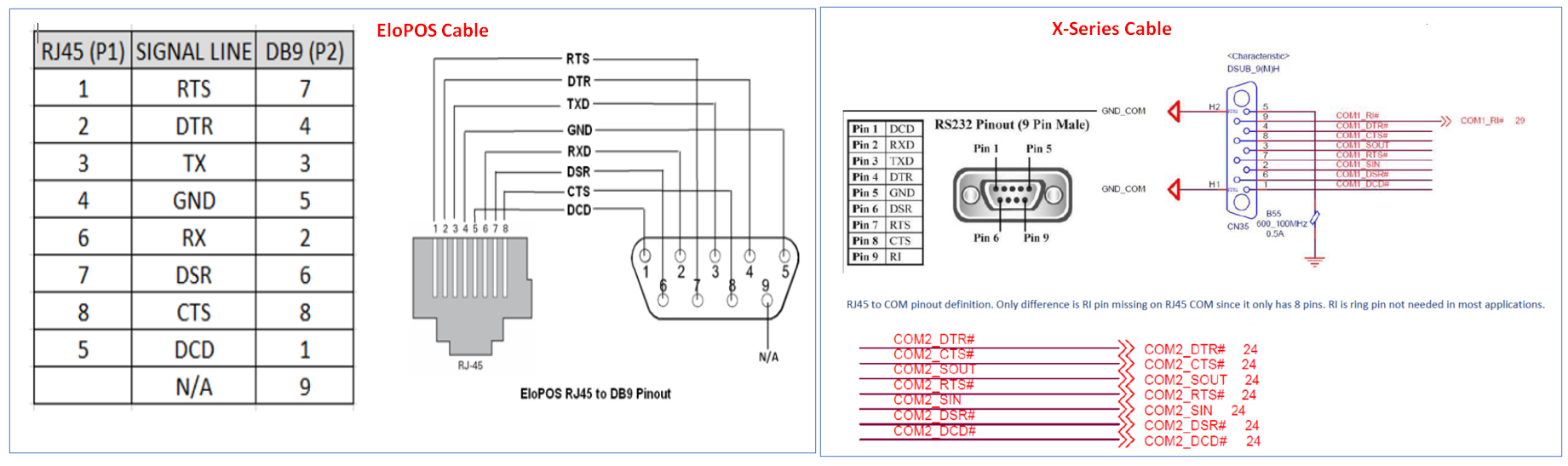

Abaixo estão as diferenças no pinagem entre o cabo EloPOS DB9 para RJ45 e o cabo DB9 para RJ45 da série X. Esses dois cabos NÃO são intercambiáveis.

Veja as especificações completas para esses cabos nos artigos abaixo:
