Bem-vindo ao Suporte Elo

Drivers, informações do produto, respostas técnicas e muito mais.

Como acesso o menu OSD de fábrica no monitor Elo 1302L?

Este artigo fornece instruções sobre como acessar o menu OSD de fábrica no monitor ET1302L

Quando a unidade é ligada enquanto segura o botão "Selecionar", um menu "Fábrica" ficará acessível no OSD.

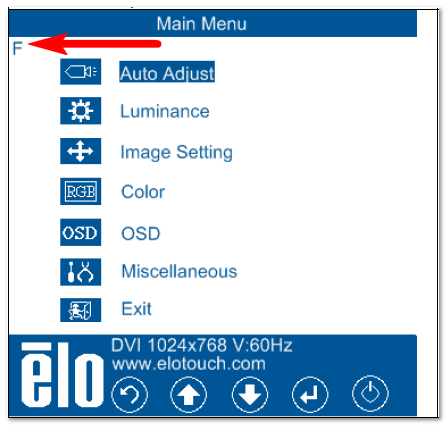

Use as teclas de seta para navegar até a opção "F", então pressione o botão "Selecionar" para entrar no menu OSD de fábrica.

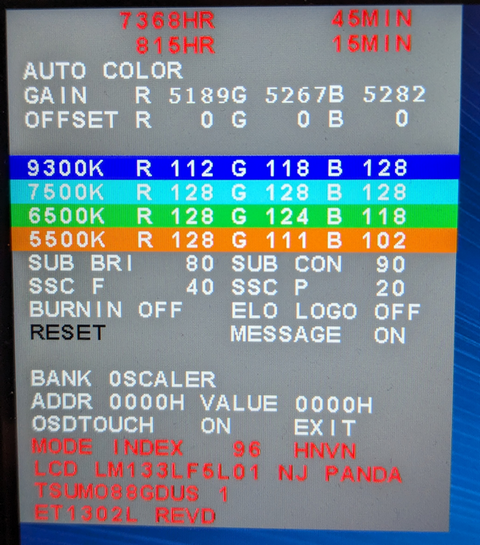

Abaixo está representado o OSD de Fábrica 1302L (Nota: a versão do firmware é exibida na parte inferior do menu. Neste screenshot, a versão do firmware é REVD)
