Какова распиновка последовательного порта RJ-50 на устройстве EloPOS Pack?

В этой статье описано определение контактов и RJ-50 Comport на устройстве EloPOS Pack

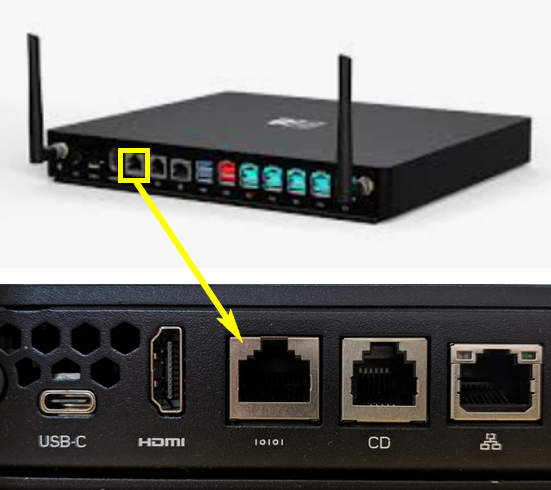

Фотографии ниже показывают расположение RJ-50 Comport на устройстве EloPOS Pack.

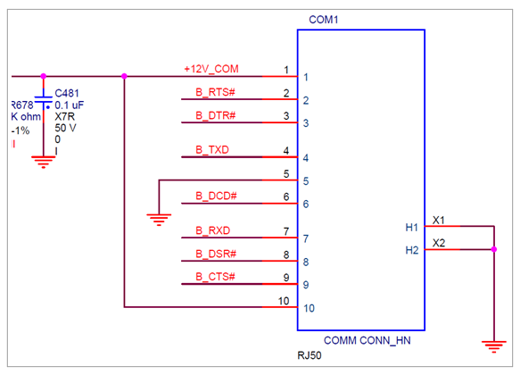

Определение контактов RJ-50 Comport и сигнальные линии

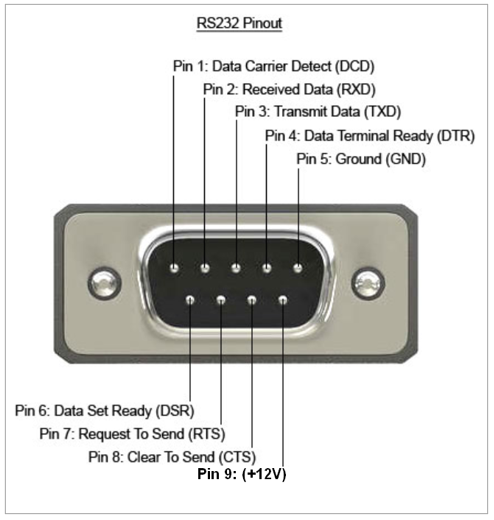

Устройство EloPOS Pack поставляется с кабелем RJ-50 на DB-9. Ниже показана распиновка разъёма DB-9.
