В чём разница между кабелем EloPOS DB9 на RJ45 и кабелем X-Series DB9 на RJ45?

В этой статье содержится информация о различиях между кабелем EloPOS DB9 и RJ45 и кабелем X-Series DB9 и RJ45

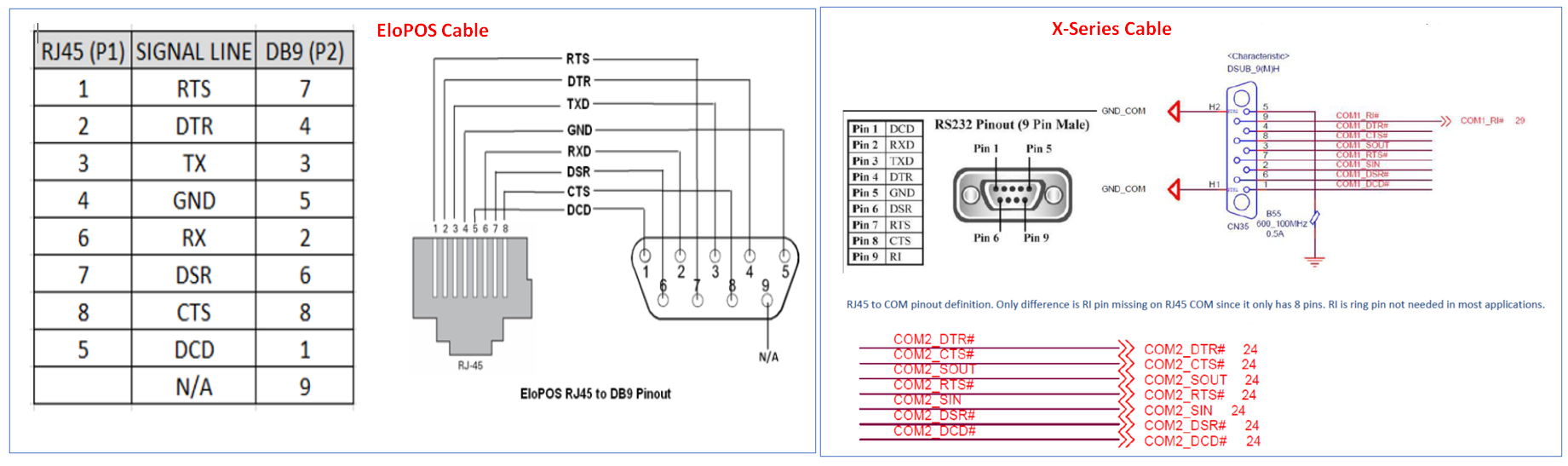

Ниже представлены различия в распиновке между кабелем EloPOS DB9 и RJ45 и кабелем X-Series DB9 и RJ45. Эти два кабеля НЕ взаимозаменяемы.

Смотрите полные спецификации для этих кабелей в следующих статьях:
