Добро пожаловать в службу поддержки Elo

Драйверы, информация о продуктах, технические ответы и многое другое.

Где я могу найти габаритные чертежи для крепления на стену E143088?

В этой статье приведены размеры для комплекта настенного крепления E143088

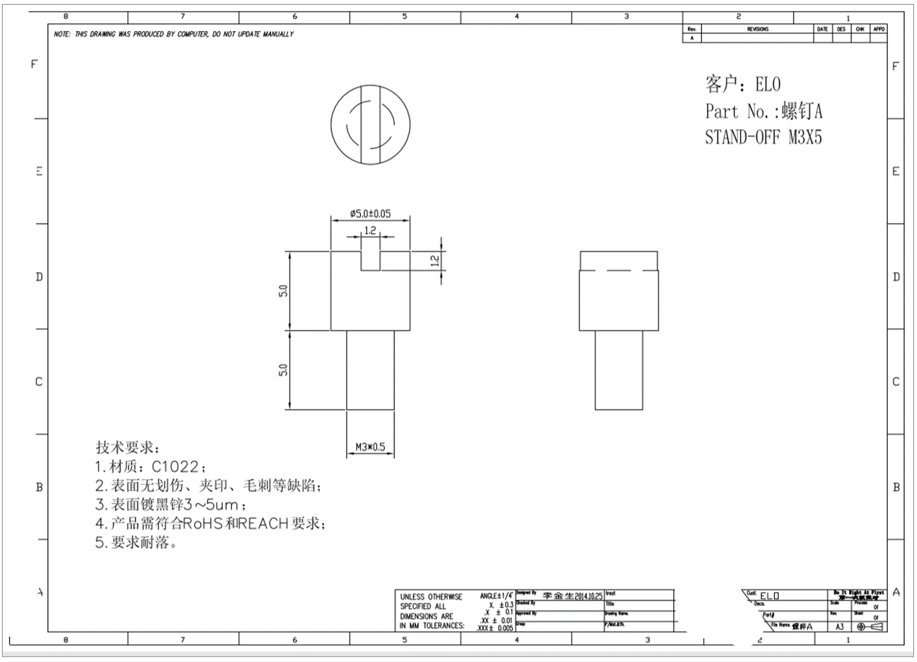

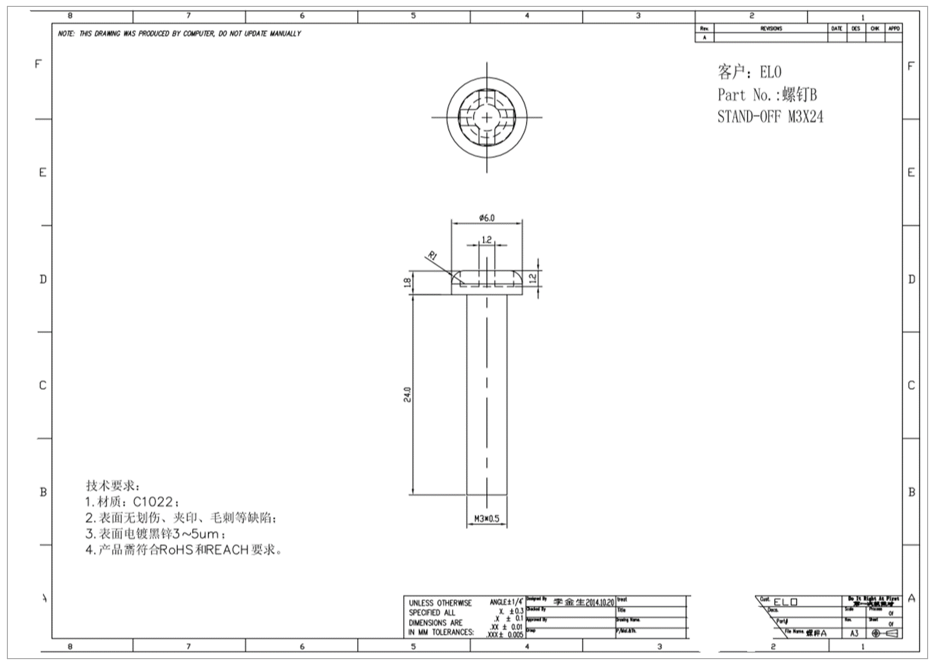

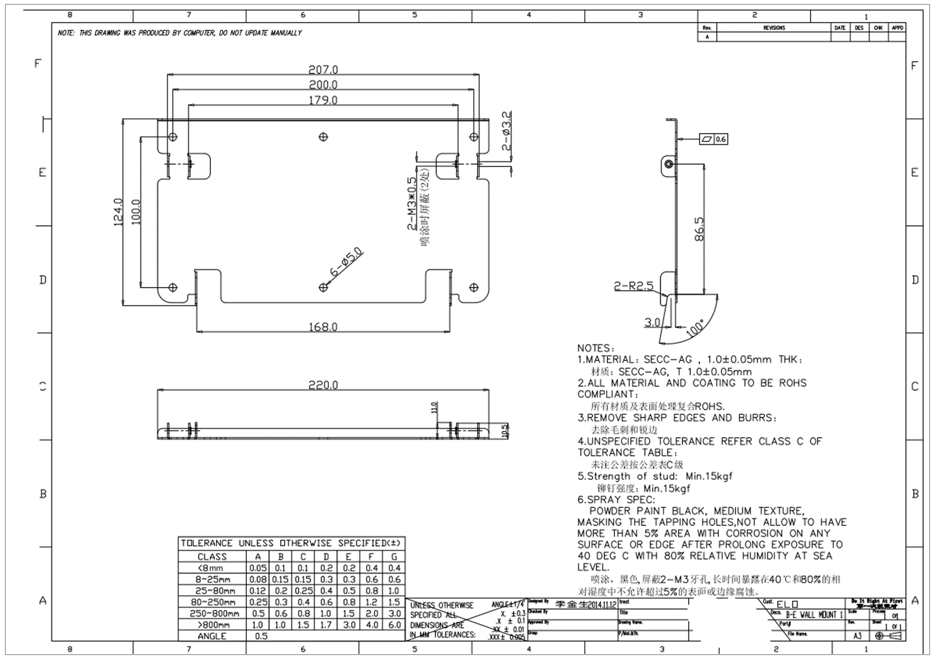

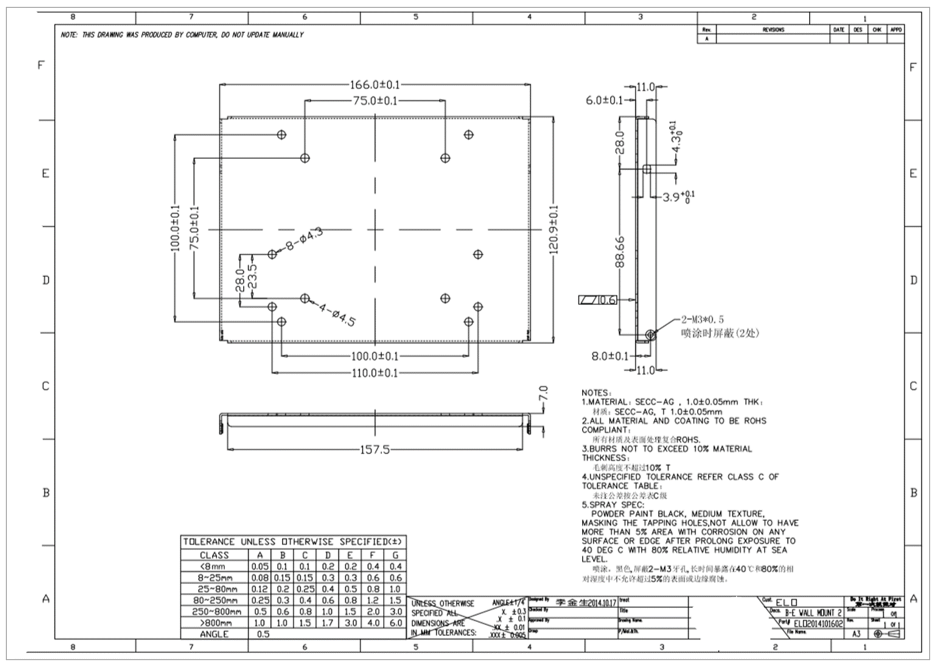

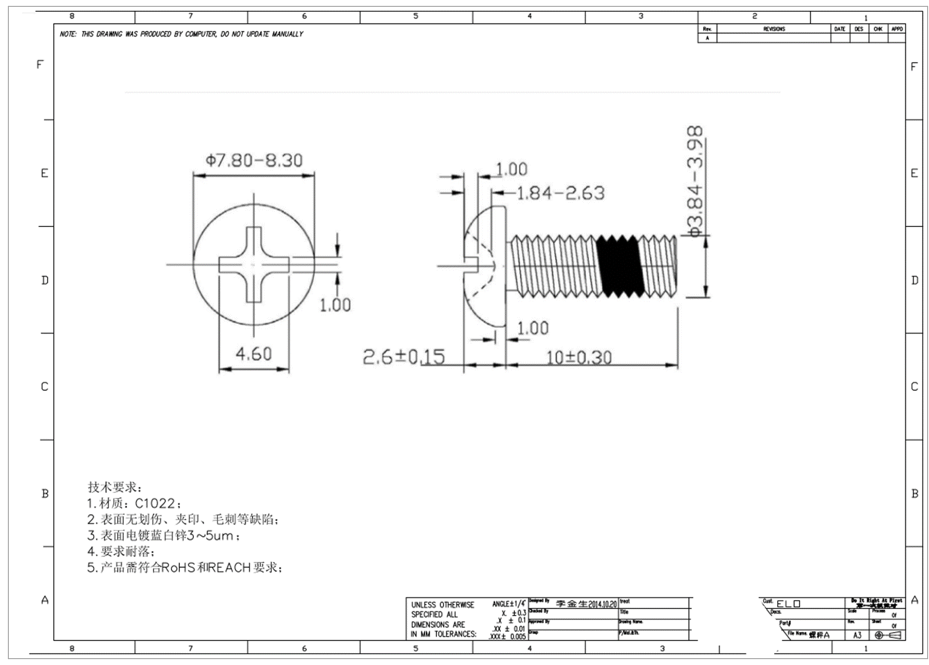

Смотрите ниже размеры комплекта настенного крепления E143088 для сенсорных компьютеров "всё-в-одном" на базе Intel-Windows серии E-I-X.




Скачать пакет .pdf с приведёнными выше чертежами здесь .



Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
