Добро пожаловать в службу поддержки Elo

Драйверы, информация о продуктах, технические ответы и многое другое.

Где я могу найти размеры и чертежи для монитора 1099L Outdoor Open Frame?

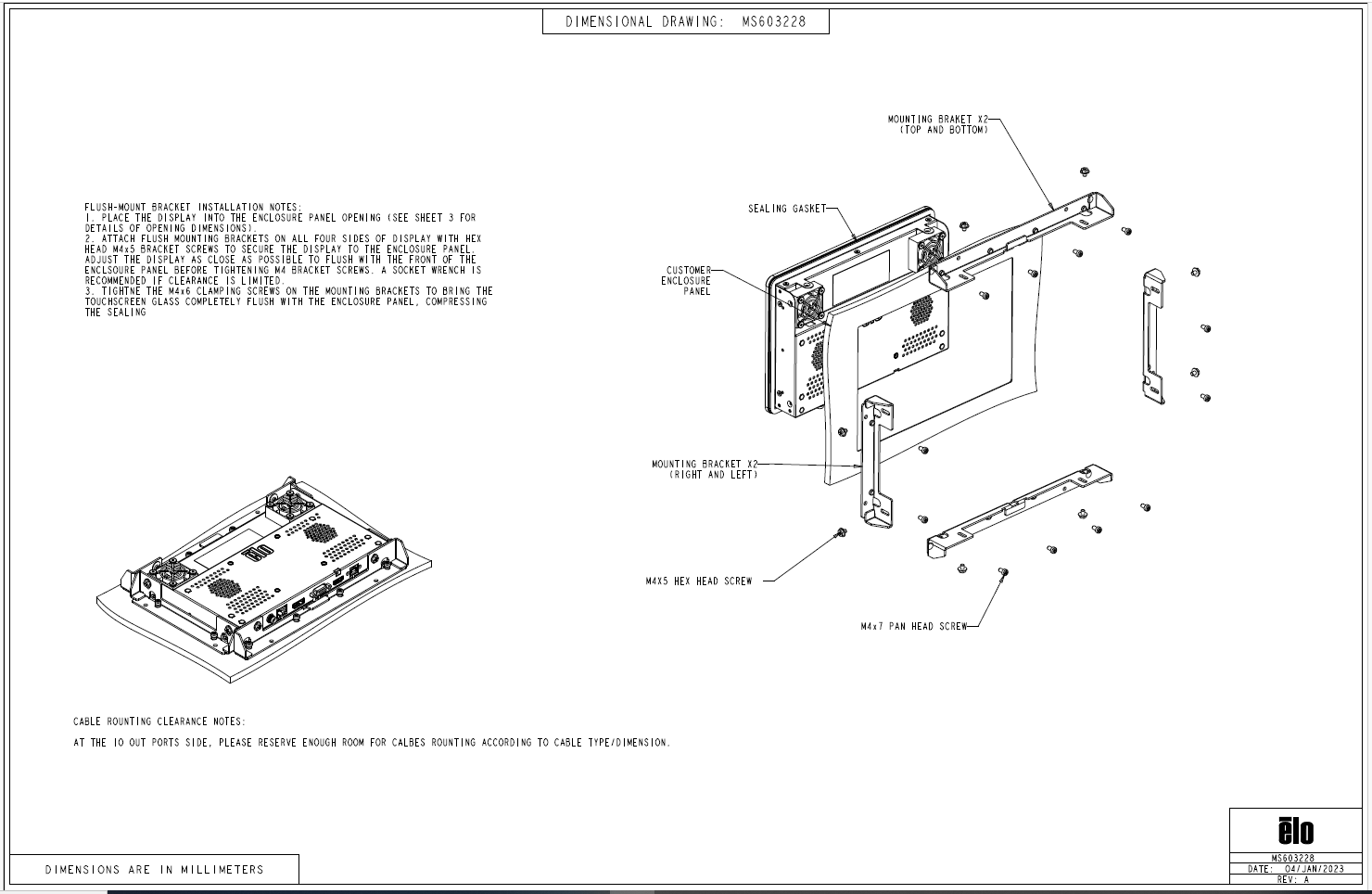

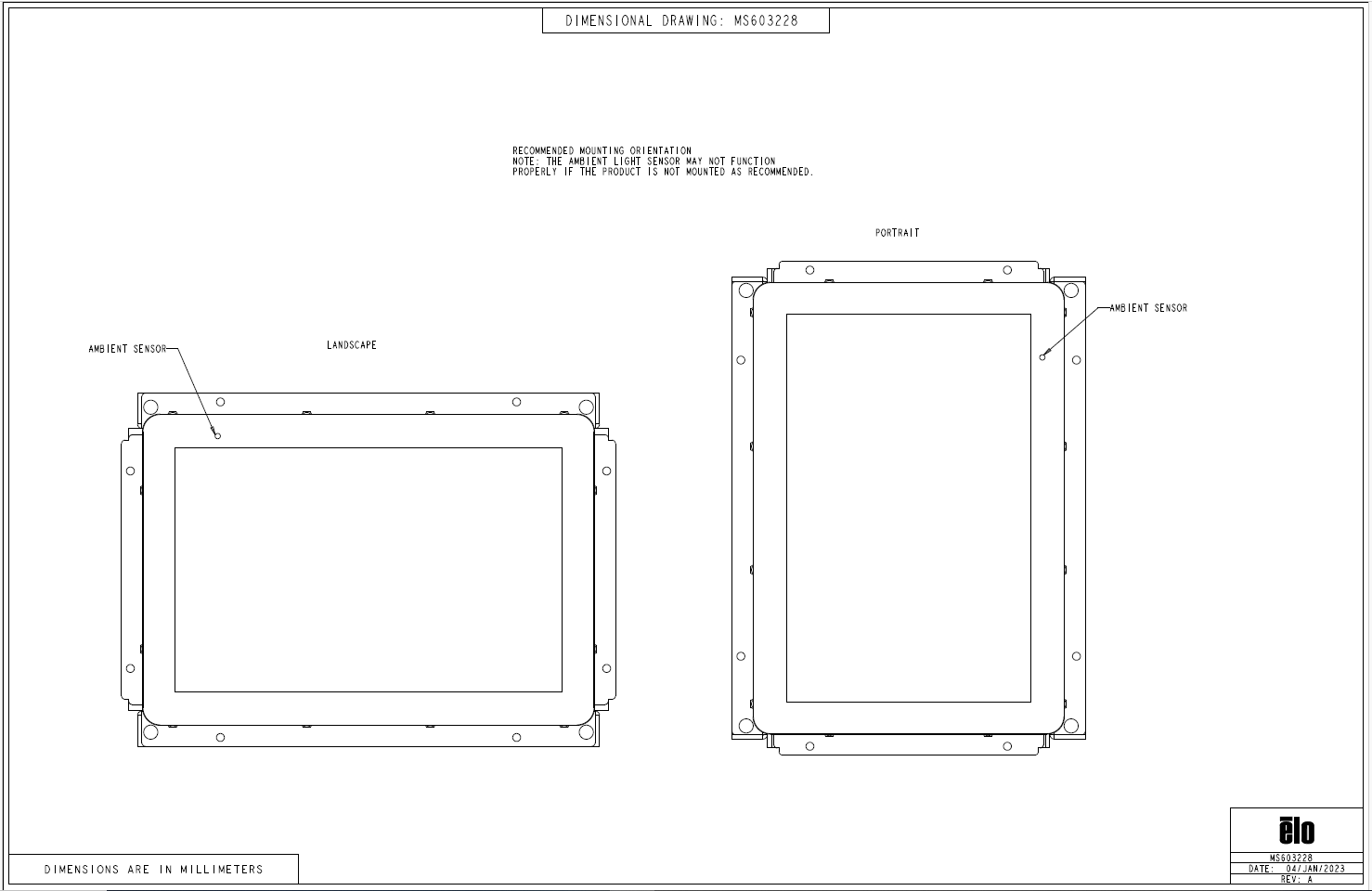

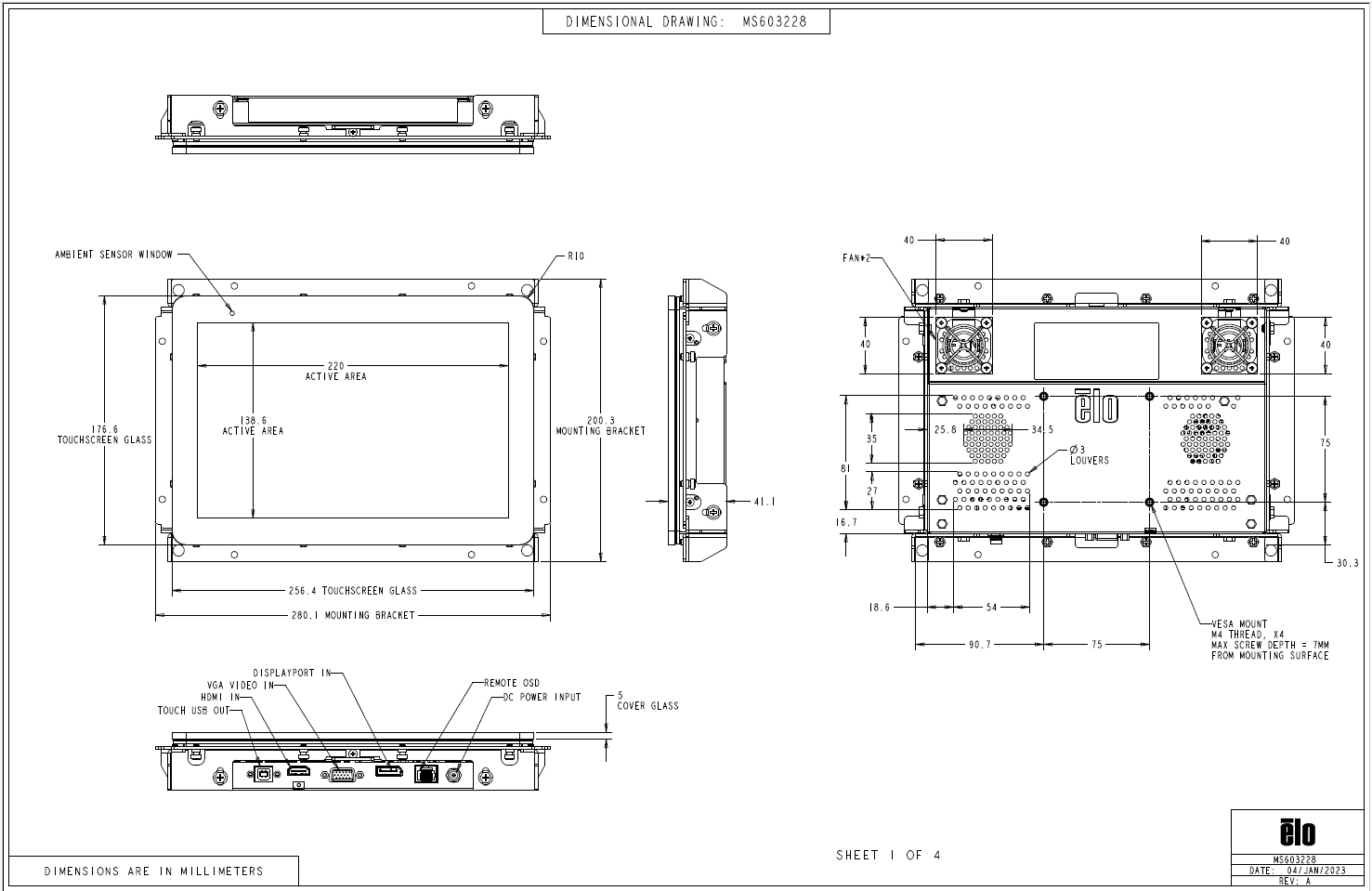

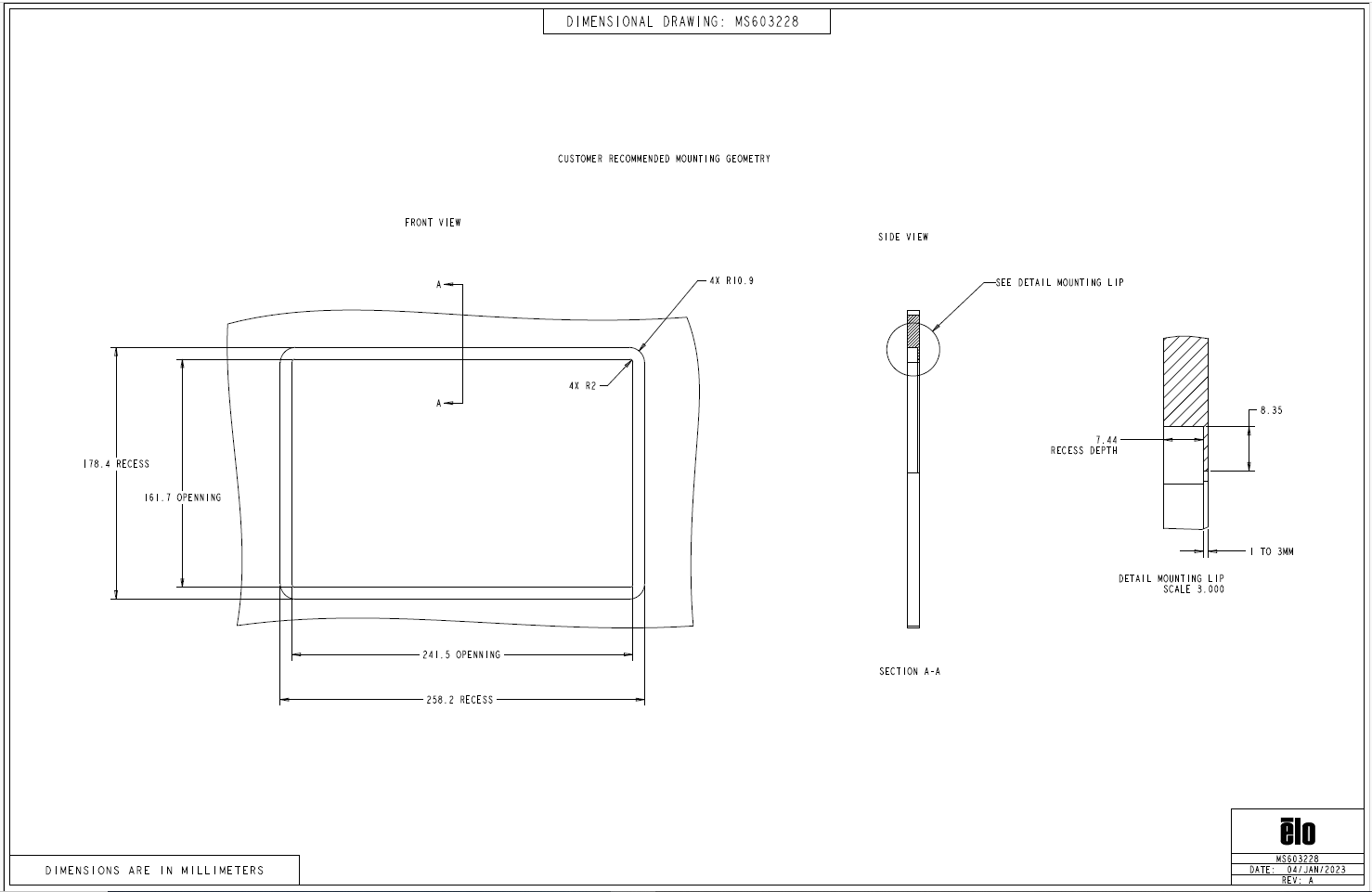

В этой статье представлены размерные чертежи сенсорного монитора ET1099L Outdoor Open Frame

Также найдите чертежи в приложении к этой статье.
