Как установить сенсорный монитор 1099L Outdoor Open Frame?

В этой статье описаны различные методы установки монитора с сенсорным экраном 1099L Outdoor Open Frame

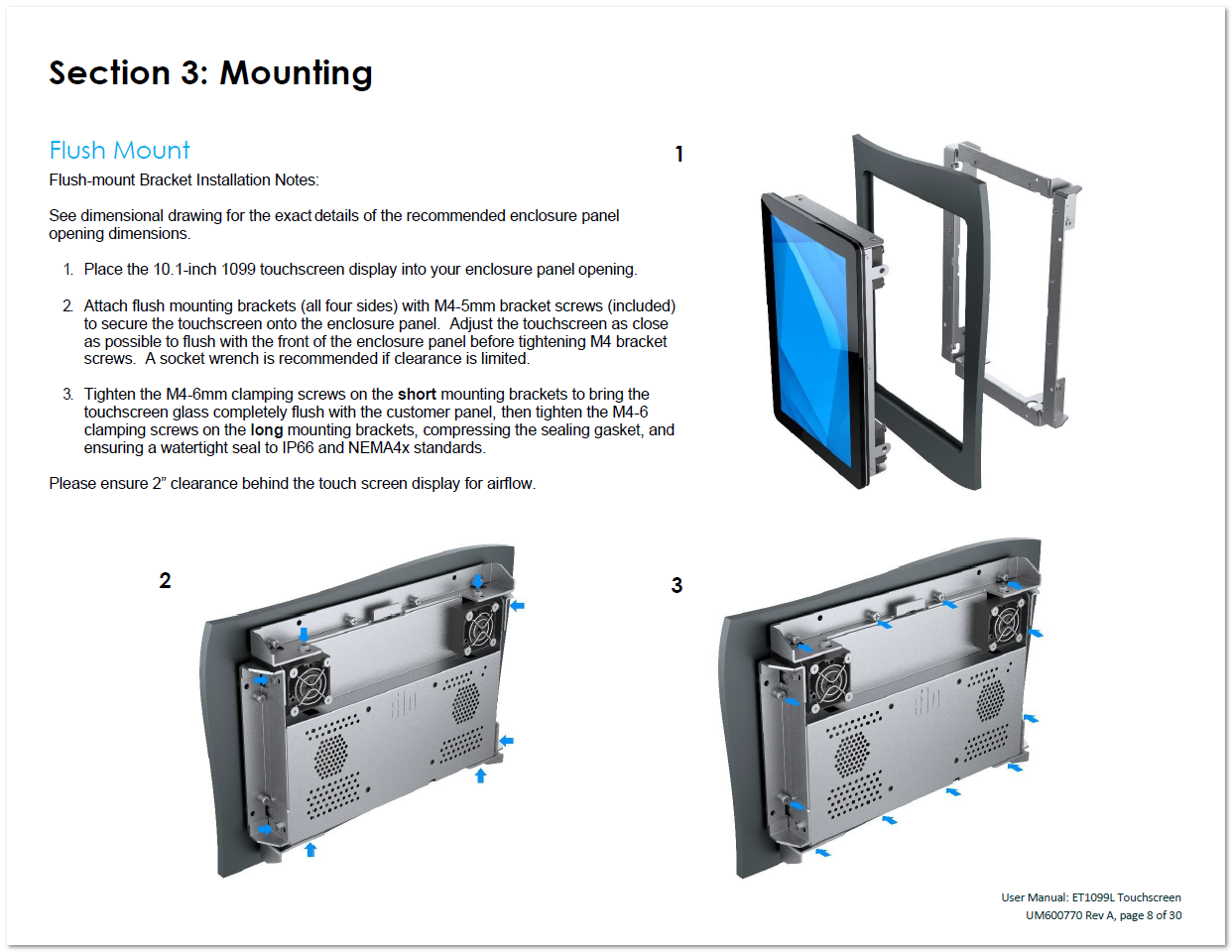

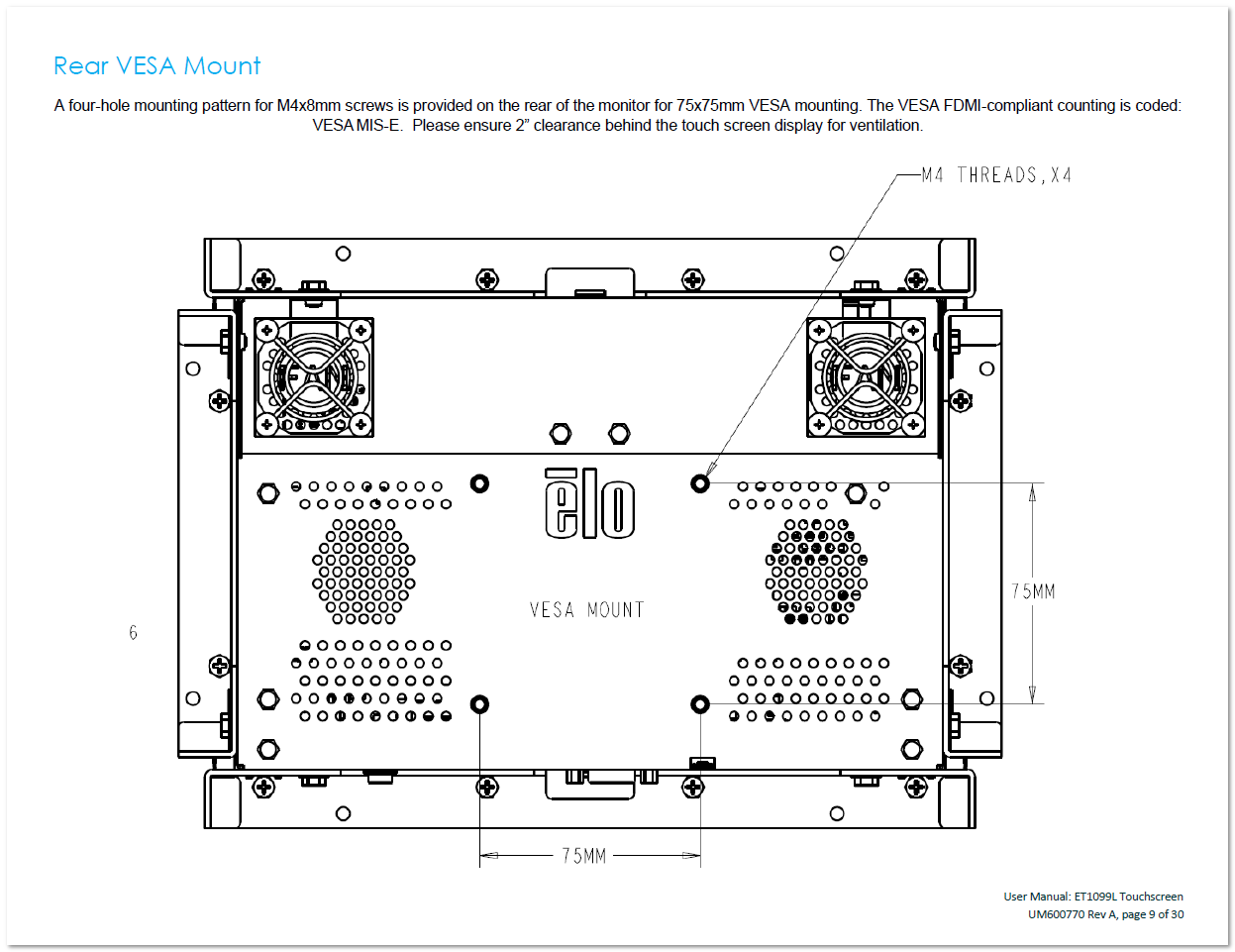

Со страниц 8-9 Руководства пользователя:

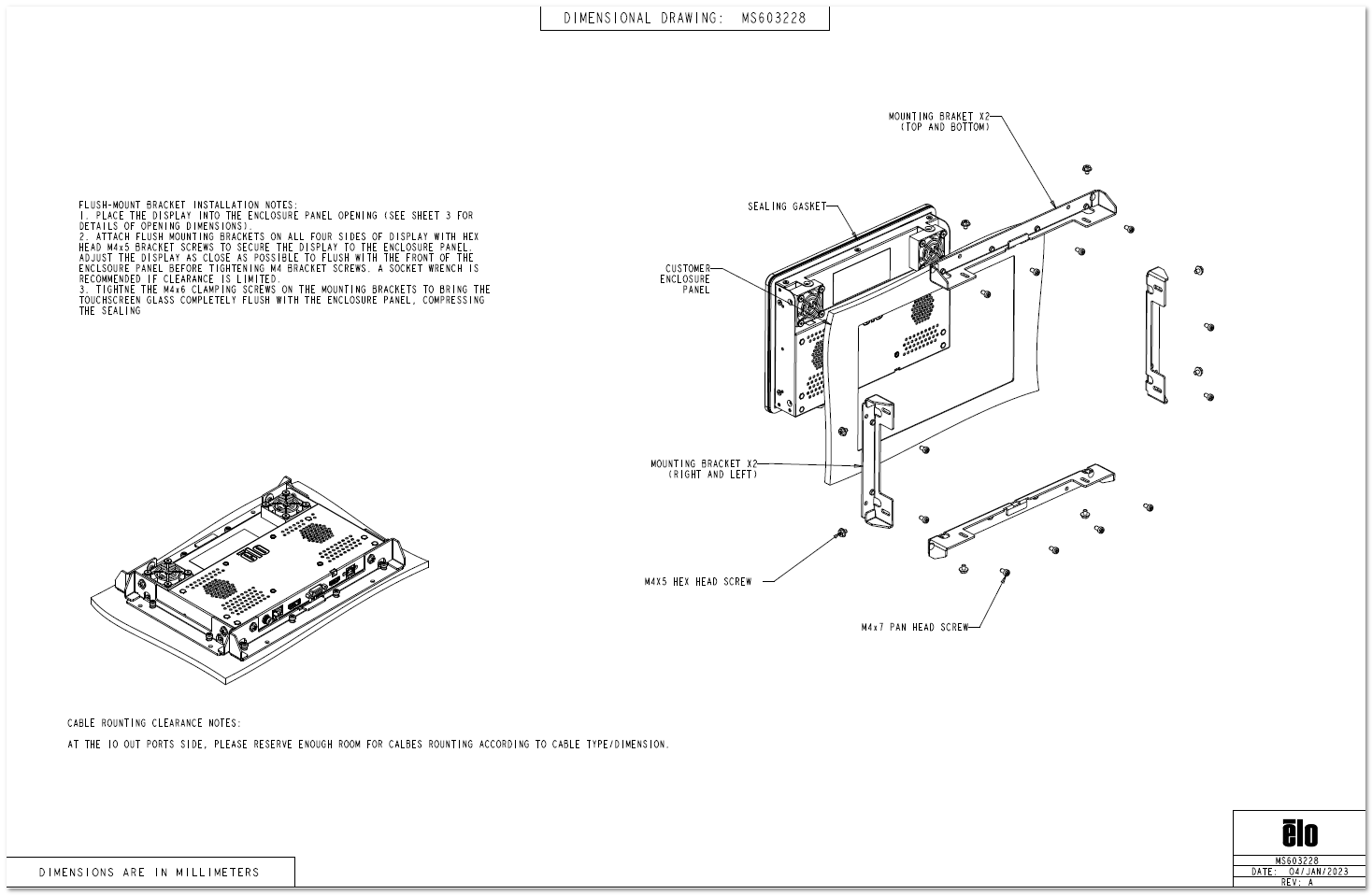

Со страницы 4 Чертежа габаритов:
