IntelliTouch 2500S SmartSet Seri Kontrolcü Jumper ve Pin Çıkışlarını Nerede Bulabilirim?

Bu makale IntelliTouch 2500S SmartSet Serisi Kontrolörü Jumper'ları ve Pinout'ları hakkında bilgi vermektedir

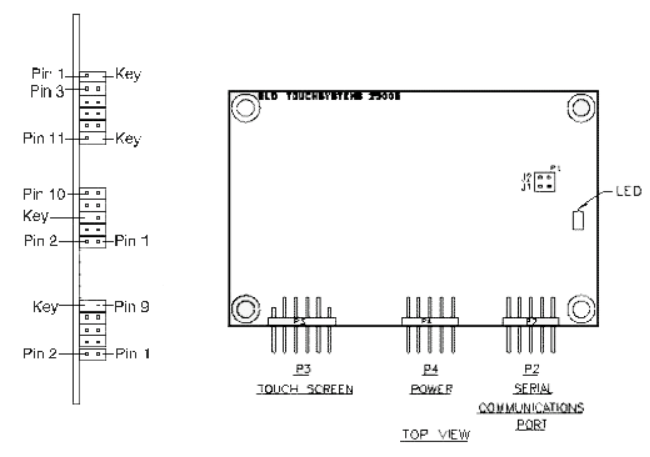

Aşağıda IntelliTouch 2500S SmartSet Serisi Kontrolörü Jumper'ları ve Pinout'ları için bilgileri görebilirsiniz.
